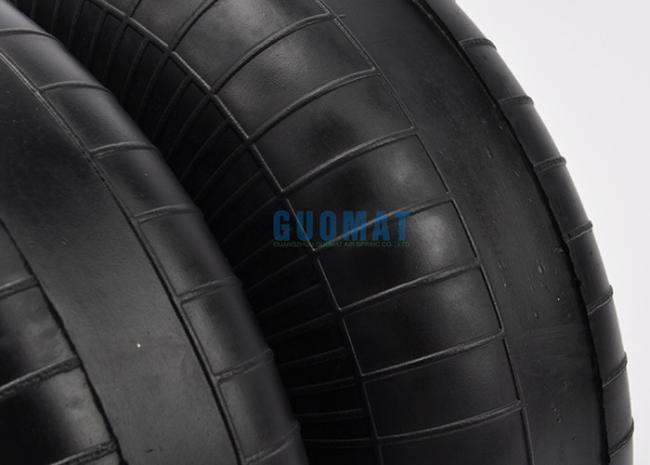

2B9-253​ Industrial Air Spring Actuators Airide Air Spring Double Convoluted For Machines

GUOMAT NO. 2B9253​ Specifications:

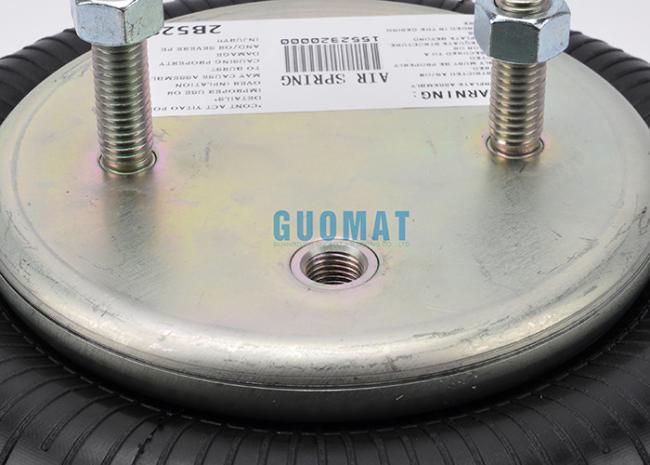

Roof hole/stud: 3 pieces

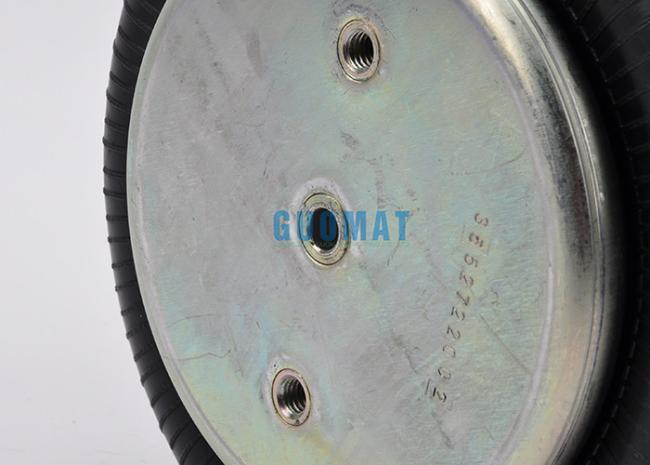

Bottom hole / stud: 2 pieces
Top cover: 6.4 inches / 160 mm
Bottom cover diameter: 6.4 inches / 160 mm
Folding height: 3.8 inches / 96 mm
Top cover screw center distance: 3.5 inches / 89 mm
Screw center distance of bottom cover: 3.5 inches / 89 mm
Rubber bellows natural diameter: 232.5 mm
Working stroke: MAX 309 mm to MIN 96 mm / MAX 12.2 inches to MIN 3.8 inches
Maximum height: 12.2 inches / 309 mm
Minimum height: 3.8 inches / 96 mm
Compressed height: 8.3 inches / 213 mm
Rubber bellows natural: 9.2 inches / 235 mm

GUOMAT NO. 2B9253​ Cross others OEM

Goodyear Trimmed: 2B9253

Conti Tech: FD200-25427 / FD 200-25 427

Firestone W01-358-6945 / 20-2

Goodyear 2B9-253

Goodyear Flexmember: 578-92-3-206 / 578923206 / 578 92 3 206

Triangle Spring: 4427 / 6332

Firestone: 6945

Conti Tech: 64550

Ridewell: 1003586945C

Batco: 10-96945

UCF / Impex: AB-2B9-253

T.W. Distribution: AB6945

Dallas Spring: AS6945

Midland / Haldex: CS209253

Euclid/Meritor Aftermarket: E-FS6945

Euclid/Meritor Aftermarket: FS6945

Leland: SC2125

Watson&Chalin : AS0119F / AS01451G

Details Technical data at the below photo

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values Force F [kN]
