FD 331-26 480 Double Convoluted Air Bag 64284 For Histeer 10315​


❶Nut/ Blind Nut
Top cover screw (nut) teeth: 1 X 1 / 2-13UNC
Top cover combination nut: 3 / 4-16UNF
Top cover screw center distance: 157 mm / 6.2 inches
Bottom cover screw (nut) teeth: 2 X 2X1 / 2-13UNC
Screw center distance of bottom cover: 157 mm / 6.2 inches

❷ air hole / air inlet / air connector
Stomatal / air inlet: 1 / 4-18NPT, combined stud / intake stud

❸ cover
Top cover diameter (width): 224.5 mm / 9.00 inches
Bottom cover diameter (width): 224.5 mm / 9.00 inches

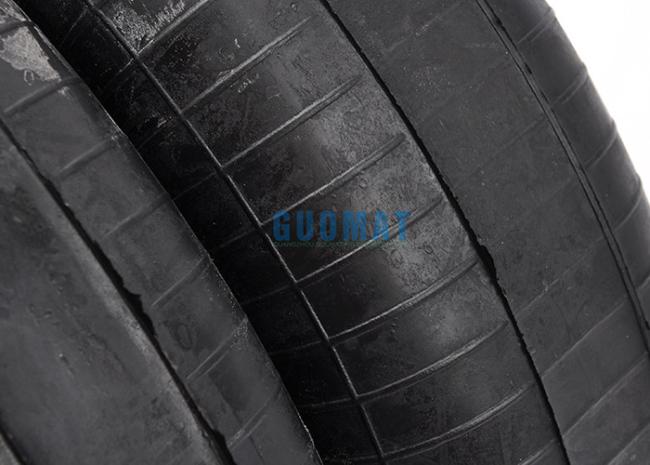

❹Rubber bellows
Rubber bellows MAX diameter: 343 mm / 9.7 inches
Compressed height: 104 mm / 4.1 inches
Maximum height: 363 mm / 14.3 inches
Working stroke: 259 mm / 10.2 inches

❺ bumper block / buffer block
Bumper seat
Twisted waist/waist ring
Girdle Hoop: a belt hoop


• Compressed Height: 3.60 inches
• Top Plate Number:3271
• Top Plate Width:9.00 inches
• Piston Width:9.00 inches
• Firestone Part Number:W01-358-7555
• Firestone Bellows Number:228-1.5
• Goodyear Part Number:2B12-440, ASA-92-2-005
• Goodyear Bellows Number:578-92-3-315
• ContiTech Number:64284, FD 331-26 480
• Reyco Number:20018-01
• Triangle Part Number:6375, 4480







GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!


1. They almost do not need to maintain.
2. Increase the service life of tires and brake pads.
3. Let you pull anything; Eliminate expensive admission cost.
4. Greatly reduce the breakage of the other vehicle components and maintenance.
5. Back to you in the scrappage, truck and trailer with air suspension is more valuable.
6. Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
7. Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
8. To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
