W01-358-7550 Firestone Air Bag Kit Air Suspension Parts For Watson&Chalin Histeer AS-0087

❶Nut / Blind Nut

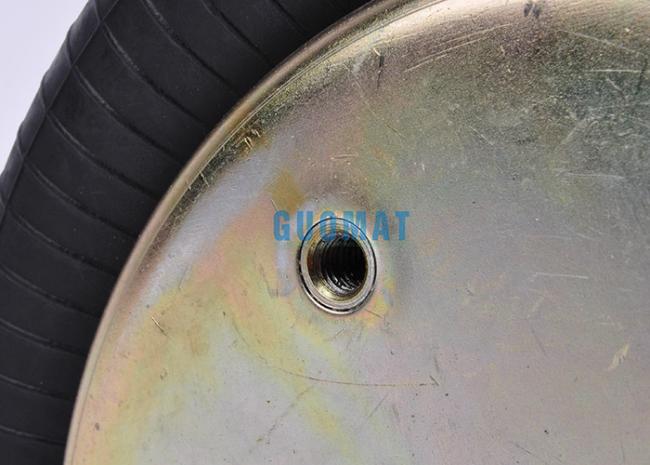

Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches

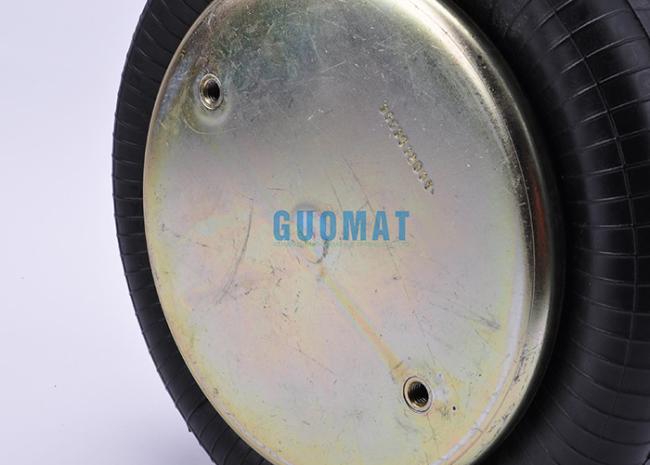

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches

❷ Gas Hole / Air inlet / Air Fitting

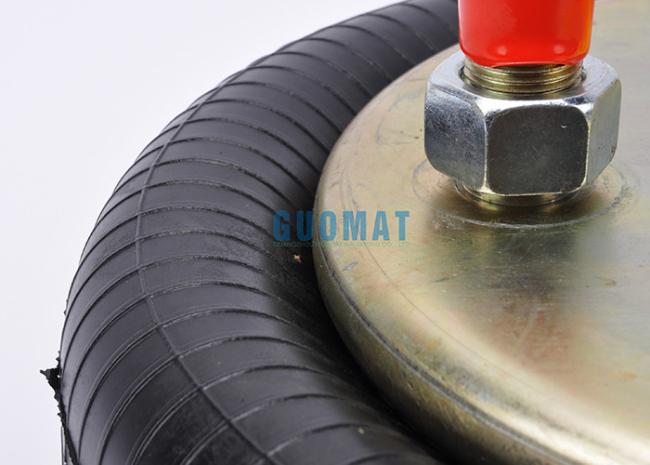

Gas Hole / Air inlet : 1/4-18NPT , Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

❹Rubber Bellows

Rubber Bellows MAX Diameter : 343 mm / 9.7 inches

Compressed Height: 104 mm / 4.1 inches

Maximum Height: 363mm / 14.3 inches

Working Stroke : 259 mm / 10.2 inches

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Competitor / Supplier Number: 4541

Suspended supplier: Histeer
Competitor / Supplier Number: 10315

Suspension of suppliers: Watson & Chalin
Competitor / Supplier Number: AS0087

Suspension of suppliers: Watson & Chalin
FSIP OEM: W01W207550

Air Spring Supplier: ContiTech
Competitor / Supplier Number: FD33126541

Air Spring Supplier: Goodyear
Reference: 578923315
Competitor / Supplier Number: 2B12346

Air Spring Supplier: Goodyear
Competitor / Supplier Number: 2B12440

Air Spring Supplier: Triangle
Reference: 6375
Competitor / Supplier Number: 4480

Air Spring Supplier: Triangle

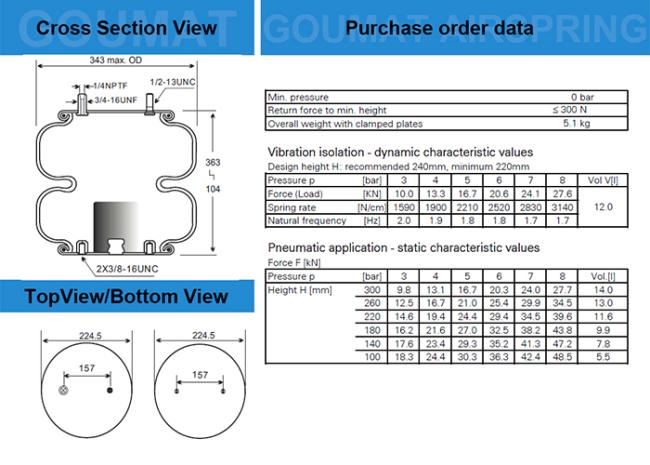

Pictures show the information includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values
