W01-358-7405 Industrial Air Spring For Arvin Meritor 200981 Truck Air Bag Suspension
W01-358-7405 Firestone Air Springs For Arvin Meritor 200981 Truck Air Bag Suspension
Cross OEM Reference
| Air Spring Supplier: ContiTech | Suspension supplier: Leland |
| Cross others/vendor number: FD33022364 | Cross others/vendor number: SC2073 |
| Air spring supplier: Goodyear | Air suspension supplier: Navistar |
| Reference: 578923309 | Cross others/vendor number: 1685177C1 |
| Cross others/vendor number: 2B12313 | |
| Air suspension supplier: SAF Netherlands | |
| Air spring supplier: Goodyear | Cross others/vendor number: 57007405 |
| Cross others/vendor number: 2B12459 | |
| Suspension supplier: Suspension Company | |
| Air Spring Supplier: Triangle | |
| Reference: 6316 | Grounded Firestone: w013587405 |
| Cross others/vendor number: 4364 | |
| Suspension supplier: Hutchens | |
| Air suspension supplier: Arvin Meritor | Cross others/vendor number: H1038401 |
| Cross others/vendor number: 200981 | |
| Air Spring Supplier: Dayton Parts | |
| Cross others/vendor number: 3547405 |
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 3/4-16UNF
Screw Center Distance of Top Cover Plate : 140 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 1/2-13UNC
Screw Center Distance of Bottom Cover Plate : 157mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4-18NPTF
Center Distance Between air inlet and Nut : 140 mm
Air Inlet Combine With One Nut

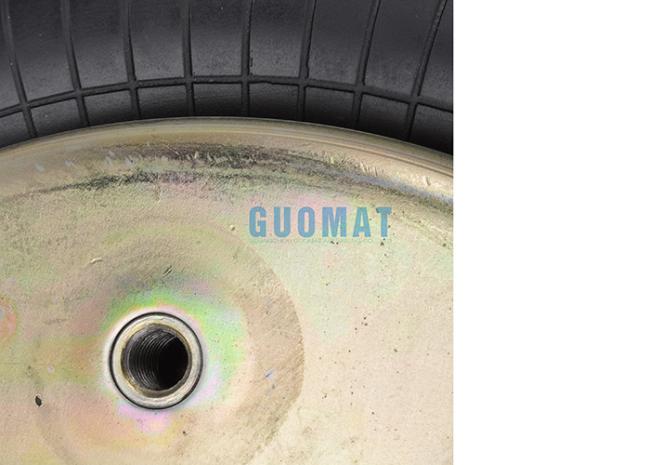

❸ Cover Plate
Top Cover Plate Diameter (Width): 231 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 231 mm / 9.00 inches
Top Cover Plate Number: 3235
Bottom Cover Plate Number: 3256

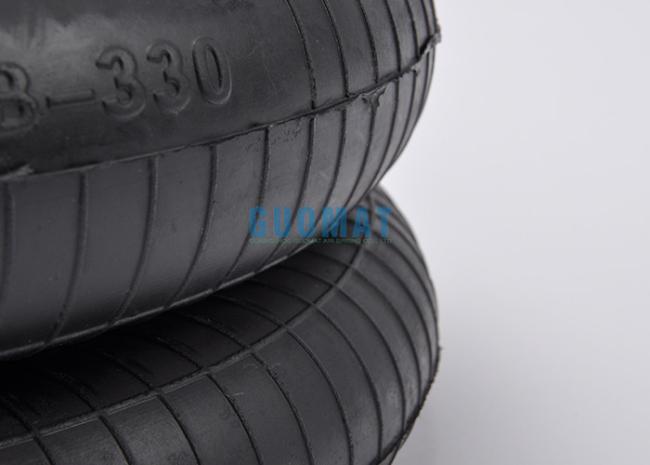

❹Rubber Bellows
Rubber Bellows MAX Diameter : 325 mm / 12.9 inches
Compressed Height: 81 mm / 4.12 inches
Minimum Jounce Height: 81mm / 4.12 inches
Design Height: 203 mm-241mm / 8-9.5 inches
Maximum Height: 305 mm / 12 inches
Bellows # NO.: 22
Working Stroke : 224 mm / 8.8 inches
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Assembly Weight: 6.9 kg
| Manufacturer Cross OEM Reference | Vehicle Cross OEM Reference |
|
Firestone : W01-358-7405 Firestone : W01 358 7405 Firestone : W013587405 |
Leland : Sc2073 |
|
Contitech : FD 330-22 364 Contitech :FD 330 22 364 Contitech :FD 33022 364 |
Navistar : 1685177C1 |
|
Goodyear :2B12-313 Goodyear :2B12-459 Goodyear :2B12313 Goodyear :2B12459 Goodyear :2B12 313 Goodyear :2B12 459 |
Arvin Meritor : 200981 |
|
Goodyear Rubber Bellows :578923309 Goodyear Rubber Bellows :578-92-3-309 Goodyear Rubber Bellows :578 92 3 309 |
Hutchens : H-10384-01 |
| Triangle Part Number:4364 | SAF Holland : 57007405 |
| Triangle Bellows Number:6316 | Firestone Top Plate Number:3235 |
| Dayton : 3547405 | Firestone Piston Number:3256 |
| Suspensions Inc. Number200981 | Firestone Bellows Number:22 |
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
