TS16949 Firestone Air Springs W21-760-0335 A01-760-0335 Plate Screw 2x3/8-16UNC

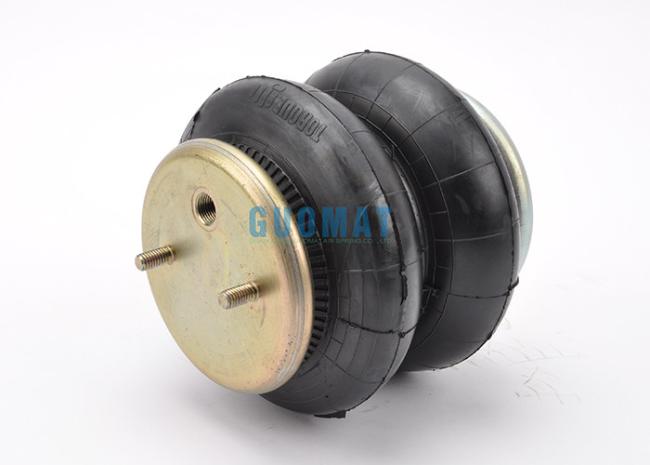

Firestone Air Springs W21-760-0335 / A01-760-0335 Plate Screw 2x3/8-16UNC



Quick details:

1. OE No.: A01-760-0335 / A01 760 0335 /A017600335
2. Item Name: Air Spring
3. Item No : 2B0335
4. Car Make: SCANIA.IVE-CO.French carBENZ,VOL-VO.DAF.MAN.
5. MOQ: 10 PCS
6. Material: Steel/Rubber
7. Packing: 2PCS/CTN

GUOMAT:2B0335 Cross others OEM

GUOMAT:2B0335 Specific parameters and specifications:


❶Nut / Blind Nut

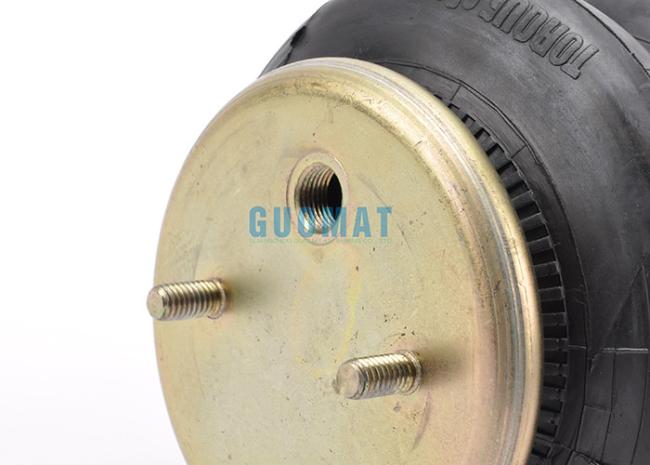

Top Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Top Cover Plate : 70 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX3/8-16UNC
Screw Center Distance of Bottom Cover Plate :70 mm


❷ Gas Hole / Air inlet / Air Fitting

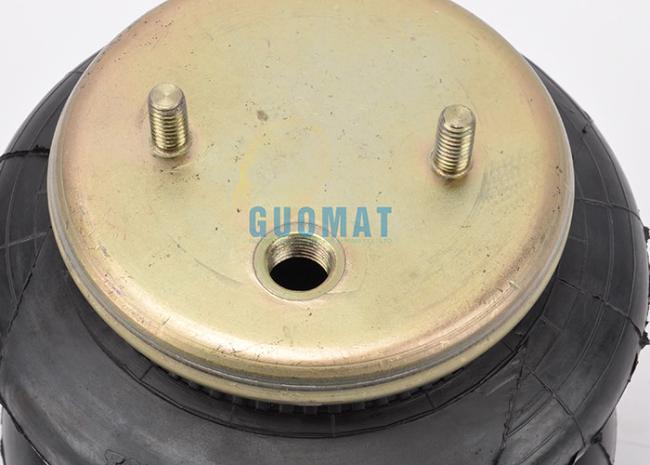

Gas Hole / Air inlet : 3/8NPTF


❸ Cover Plate
Top Cover Plate Diameter (Width): 132 mm
Bottom Cover Plate Diameter (Width): 132 mm


❹Rubber Bellows
Rubber Bellows Natural Diameter : 203mm
Rubber Bellows Natural Height :180 mm

Working Stroke:75MM-230MM


❺ Bumper block / Buffer block
With Bumper Block

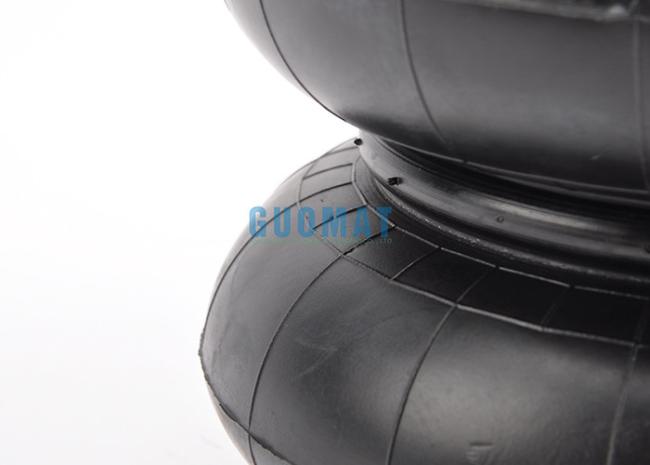

❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop



The structure of the air spring:

1, is a rubber component, which is formed by vulcanization of a cord layer, an inner and outer rubber layer or a steel wire ring to form a flexible body, and realizes an elastic function by filling the compressibility of air. Commonly known as air springs, rubber airbags, airbags, etc.
2, assembled by the rubber air spring, the base, the base (piston), the overall shape of the mat assembled into a sealed cavity.
3, according to the shape is divided into three categories of capsules, film and sleeves. The sealing structure consists of four types: pressure self-forming, flange clamping, hoop sealing and mixing.
4, the load of the air spring shock absorber is mainly carried by the cord, the curtain layer is mainly composed of 2 layers, and the special requirements of the product are composed of 4 layers of cord. The inner glue mainly serves as a sealing function, and in addition to the sealing effect of the outer rubber, it also plays a protective role.
