W013583400 Firestone Rubber Air Spring Shocks Bellows Number 224​

GUOMAT 2B3400 Data

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 70 mm
Bottom cover screw (nut) teeth: 2 X 3 / 8-16UNC
Bottom cover screw center distance: 70 mm

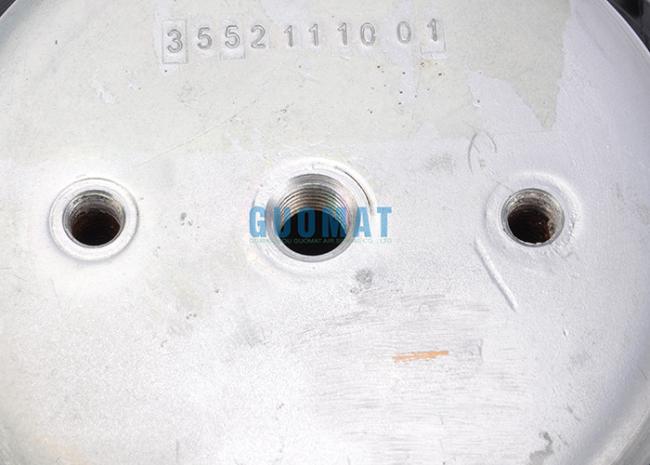

❷ air hole / air inlet / air connector
Air vent / air inlet: 1 / 4 NPTF
Screw center distance between air vent and nut: 35 mm

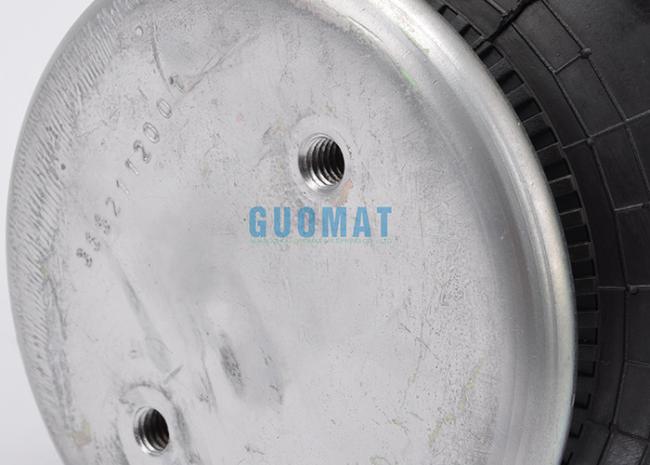

❸ cover
Top cover diameter (width): 132 mm / 5.31 inches
Bottom cover diameter (width): 132 mm 5.31 inches
❹Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 75 mm to MAX 230 mm
Maximum height: 230 mm
Minimum height (compression height): 75 mm / 2.75 inches
Stroke height: 155 mm
❺ bumper block / buffer block
No Bumper Block

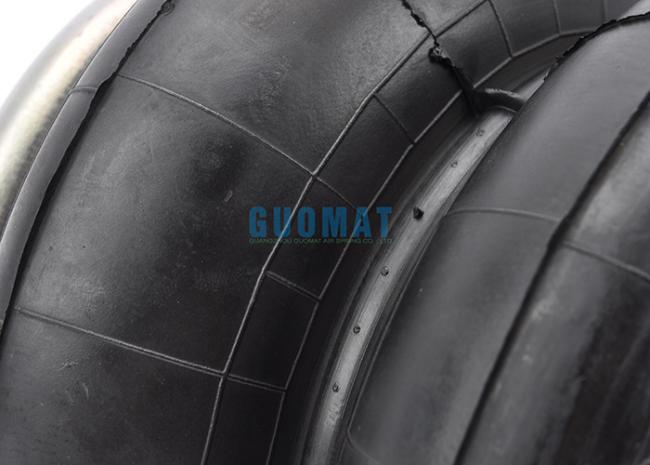

Twisted waist/waist ring
Belt hoop: a band loop

GUOMAT 2B3400 Specifications

Firestone Top Plate Number: 3450

Firestone Piston Number: 3436

Firestone Bellows Number: 224

Goodyear Part Number: 2B7-540

Goodyear Part Number:2B7 540

Goodyear Part Number:2B7540

American Carrier Number: 8003-009

Firestone Part Number: W01-358-3400

Firestone Part Number:W01 358 3400

Firestone Part Number:W013583400

Firestone Order Number: W01-358-3400

Bellows #: 224

Assembly Weight: 4.6 lbs

Design Height: 6-7 inches

Loading Capacity at 20 psig: 342 lbsf

Loading Capacity at 60 psig: 1,026 lbsf

Loading Capacity at 90 psig: 1,539 lbsf

Maximum Diameter: 8 inches

Operating Temperature: 56Cº to -53Cº

GUOMAT 2B3400 Detail Data:
