3.5 KG Triple Convoluted Air Spring Without Metal Parts 7X3 3B7X3 Air Spring Shocks

Triple Convolution Air Spring Without Metal Parts 7X3 3B7X3 Air Spring Shocks

GUOMAT 2B7X3 Data

❶Nut/ Blind Nut
Top cover screw (nut) teeth: 2 x 3 / 8-16UNC
Top cover screw center distance: 69 mm
Bottom cover screw (nut) teeth:1 X 3 / 8-16UNC


❷ air hole / air inlet / air connector
Air vent / air inlet: 3 / 8-18 NPTF
Screw center distance between air vent and nut: 33 mm


❸ cover
Top cover diameter (width): 130 mm / 5.31 inches
Bottom cover diameter (width): 130 mm 5.31 inches


❹Rubber bellows
Rubber bellows MAX diameter: 203 mm
Working stroke: MIN 117 mm to MAX 460 mm
Maximum height: 460 mm
Minimum height (compression height): 117 mm
Stroke height: 343 mm
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop

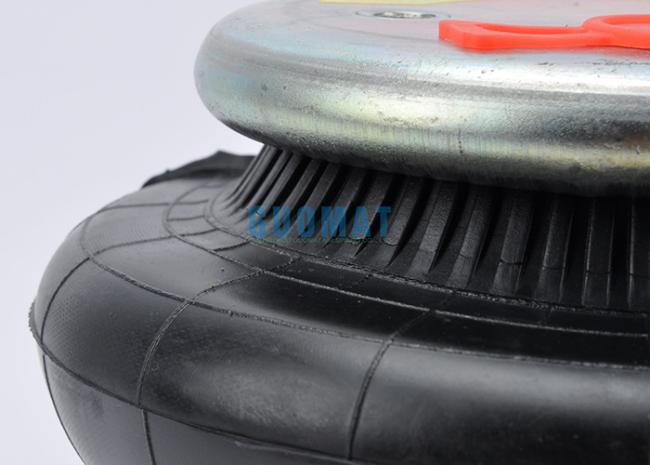

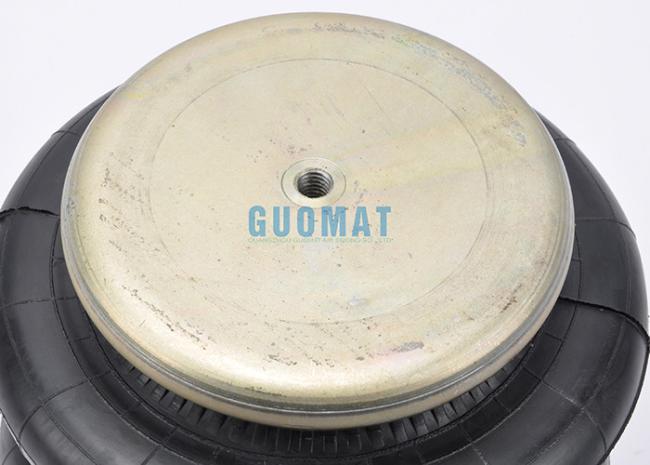

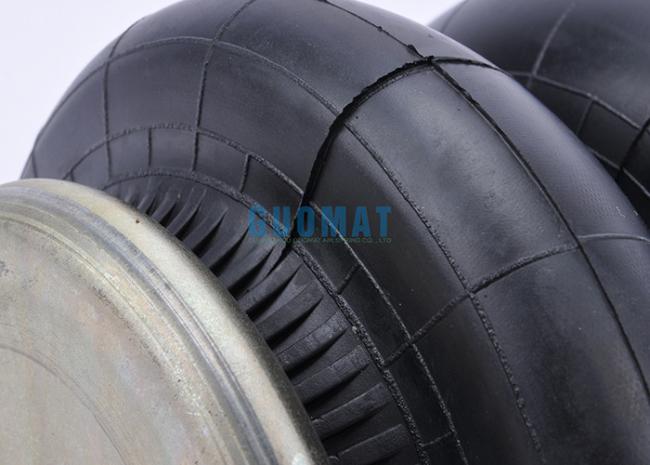

GUOMAT 2B3400 Detail photos:
