W013588008 Industrial Air Spring Bellows Steel And Rubber Material Number 38
W013588008 Firestone Triple Convoluted Air Spring Bellows Number 38
3B8008 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC
Screw Center Distance of Top Cover Plate : 140mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm

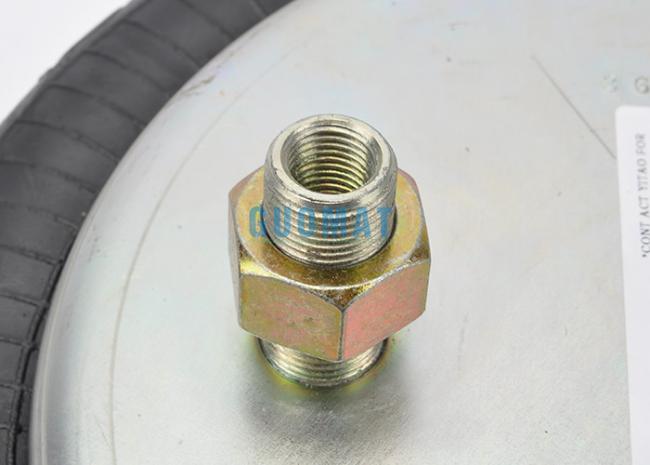

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

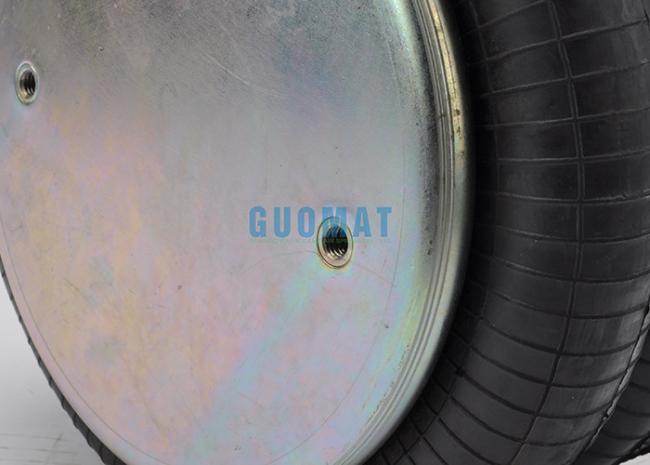

❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm

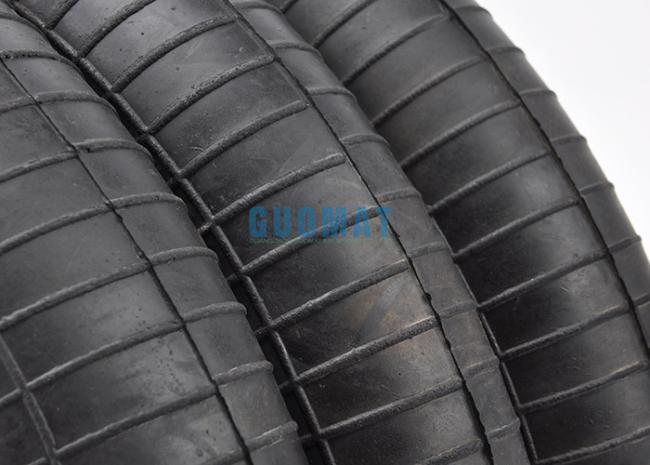

❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. | COMPLETE NO. |
| Airspring Supplier: Goodyear | Airspring Supplier: ContiTech | Air Suspension Supplier EZ Ride | Air Suspension Supplier Leland |
| Reference: 578933100 | Number: FT33029431 | Other OEM Supplier Number: SC2130 | |
| Firestone Bellows Number:38 | Other OEM Supplier Number: 3B12300 | Air Suspension Supplier Hendrickson | |
| Other OEM Supplier Number: NS501690 | Air Suspension Supplier SAF Holland | ||
| Airspring Supplier: Triangle | Firestone Airspring Style: 38 | Other OEM Supplier Number: 57008008 | |
| Reference: 6334 | |||
| Other OEM Supplier Number: 4431 | Air Suspension Supplier Hendrickson | Air Suspension Supplier Ridewell | |
| FSIP OEM: W014558008 | Other OEM Supplier Number: 1003588008C | ||
| Airspring Supplier: Dayton Parts | Air Suspension Supplier Hendrickson Trailer | Air Suspension Supplier Silent Drive | |
| Other OEM Supplier Number: 3548008 | Other OEM Supplier Number: S11637 | ||
| Air Suspension Supplier Tuthill Technology | |||
| Air Suspension Supplier EZ Ride | Air Suspension Supplier Histeer | Other OEM Supplier Number: 6392 | |
| Other OEM Supplier Number: 8030155 | |||
| Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Langes | Air Suspension Supplier Watson & Chalin | |
| Suspension Number: WCSL1400SRR | Suspension Number: WCSL1100LR | Other OEM Supplier Number: AS0019 | |
| Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Watson & Chalin | |
| Suspension Number: WCLWSL1100LW | Suspension Number: WCSL1100SR | FSIP OEM: W01W208008 | |
| Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Watson & Chalin | |
| Suspension Number: LWSL1100SSRLW | Suspension Number: WCSL1100SSR | Suspension Number: WCAL1200IS | |
| Firestone Trimmed: w013588008 | Air Suspension Supplier Watson & Chalin | Air Suspension Supplier Watson & Chalin | |
| Suspension Number: WCSL1400SR | Suspension Number: WCSL1100LP | ||
| Air Suspension Supplier Watson & Chalin |
