FT 330-29 432 Steel Cover Plate Industrial Air Spring For Ridewell 1003588010C
FT 330-29 432 Contitech Air Spring For Ridewell 1003588010C
GUOMAT NO. 3B8010 Technical Parameters
Compressed Height: 4.20 inches/ 107MM
Top Plate Number:3215
Top Plate Width:9.00 inches / 231MM
Piston Number:3183
Piston Width:9.00 inches / 231MM
Firestone Bellows Number:38
Goodyear Part Number:3B12-301
Goodyear Part Number:3B12 301
Goodyear Part Number:3B12301
Goodyear Bellows Number:578-93-3-100
Goodyear Bellows Number:578933100
Triangle Part Number:4432
Triangle Bellows Number:6334
Ridewell Number:1003588010C

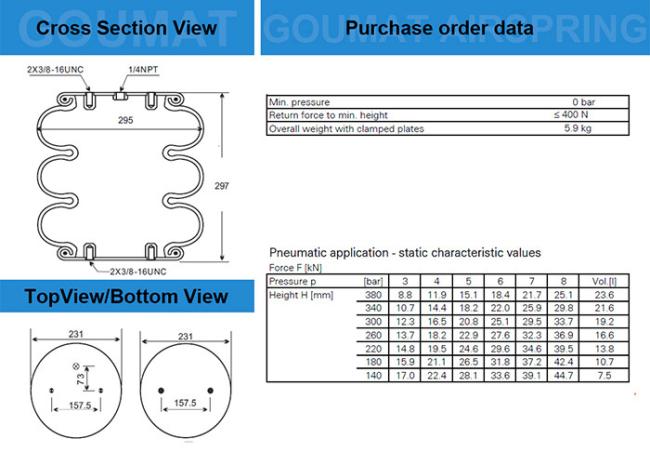

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Top Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 157.5mm
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

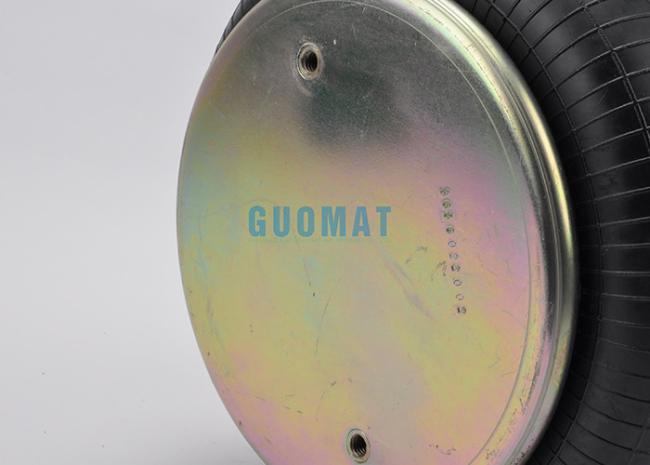

❸ Cover Plate
Top Cover Plate Diameter: 231 mm
Bottom Cover Plate Diameter: 231 mm

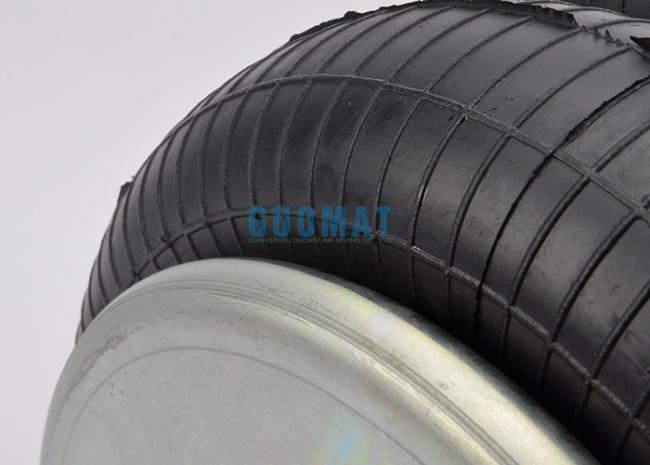

❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter :300 mm
The Working Stroke : MAX 460 mm to MIN 130 mm
Maximum Height : 460 mm
Minimum Height :130 mm
Compression Height : 330 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
CONTITECH FT 330-29 Cross others OEM
| BELLOW Numbers | COMPLETE NO. | COMPLETE Numbers |
| AIRKRAFT 116008 | AIRKRAFT 115033 | AIRKRAFT 115027 |
| FIRESTONE FLEX 38R/38D | CONTITECH FT 330-29 773 | CONTITECH FT 330-29 430 |
| FIRESTONE 095.0047 | FIRESTONE W01-358-8013 | FT 330-29 498 |
| GOODYEAR FLEX 556 3 3 8334 | GOODYEAR 3B12-305 | FT 330-29 503 |
| 578 93 3 100 | AIRKRAFT 115035 | FT 330-29 702 |
| CONTITECH FT 330-29 432 | FIRESTONE W01 358 8006 | |
| FIRESTONE W01-358-8010 | W01 358 8030 | |
| GOODYEAR 3B12-301 | GOODYEAR 3B12-304 |
Other kinds of FT 330 29 that GUOMAT have:
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FT 330 29 413 | FT 330-29 413 | 161343 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 430 | FT 330-29 430 | 161344 | 5040 | 6300 | 12.9 | 12 | 4 | 18.1 | 78 |
| FT 330 29 431 | FT 330-29 431 | 161345 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 432 | FT 330-29 432 | 161346 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 433 | FT 330-29 433 | 161347 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 434 | FT 330-29 434 | 161031 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 466 | FT 330-29 466 | 161348 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 469 | FT 330-29 469 | 161349 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 498 | FT 330-29 498 | 161350 | 5040 | 6300 | 12.9 | 12 | 4 | 18.1 | 78 |
| FT 330 29 503 | FT 330-29 503 | 161351 | 5040 | 6300 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 508 | FT 330-29 508 | 161352 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 520 | FT 330-29 520 | 161353 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 525 | FT 330-29 525 | 161354 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 546 | FT 330-29 546 | 161355 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 547 | FT 330-29 547 | 161356 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
| FT 330 29 548 | FT 330-29 548 | 161357 | 4760 | 5950 | 12.9 | 12 | 4.1 | 18.1 | 78 |
