W01-358-8027 Triple Convoluted Air Bag Firestone Air Spring Histeer Number 200117​

OEM Original Equipment Manufacturer:

GUOMAT Part NO. 3B8027

Air spring Supplier: ContiTech Number:FT33029466,FT330-29 466

Air spring Supplier: Contitech: 64565

Air spring Supplier: Goodyear Bellows Number: 578933100;578-93-3-100,

Air spring Supplier: Goodyear Complete Number: 3B12310,3B12-310

Air spring Supplier: Triangle Bellows Number: 6334

Air spring Supplier: Triangle Complete Number: 4466

Suspension Supplier: Arvin Meritor Number: 200117

Suspension Supplier: Histeer Number:200117

Histeer 8029.

Suspension Supplier: Silent Drive

Firestone Trimmed: W013588027,W01-358-8027, W01 358 8027

Firestone Trimmed:W01-358-8029,W013588029,W01 358 8029

Firestone :8027

Air spring Supplier: Automann Number:ABSP3B22R-8027

Dallas AS8027

Euclid E-FS8027

Euclid FS8027

GUOMAT NO. 3B8027 Technical parameters

Piston width: 9.00 inches
Number of Firestone bellows: 38
Triangle part number: 4466
Number of triangular bellows: 6334
Suspensions Inc. No. 200117
Compressed height: 4.55 inches
Top plate number: 3271
Top plate width: 9.00 inches
Piston No.: 3183

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 1pcsX1/2-13UNC

Top Cover Plate Screw (Nut) Tooth : 1pcsX3/4-16UNC

Screw Center Distance of Top Cover Plate : 157 mm

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157 mm

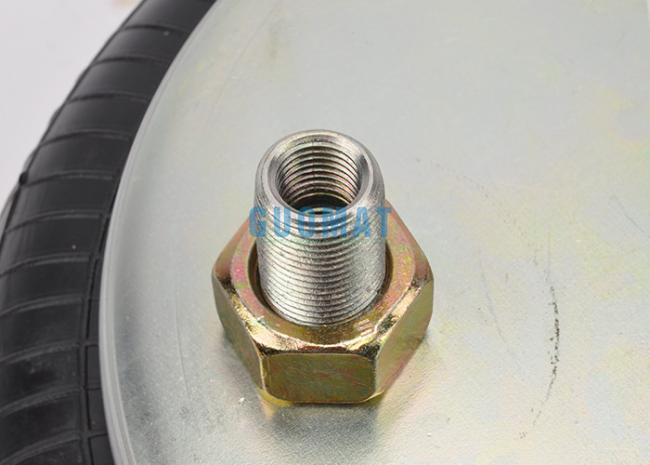

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

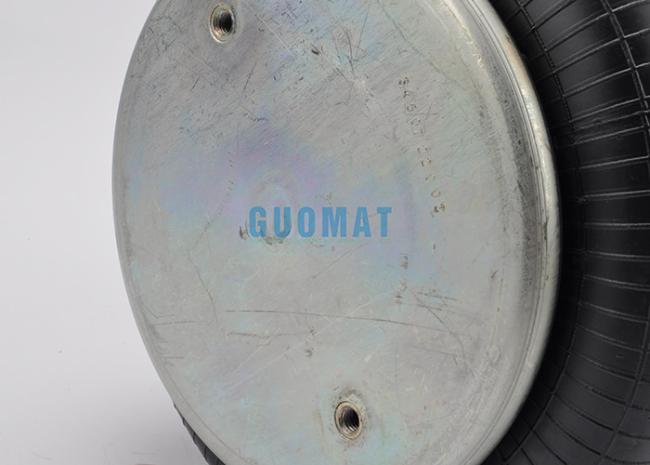

❸ Cover Plate

Top Cover Plate Diameter: 231 mm

Bottom Cover Plate Diameter: 231 mm

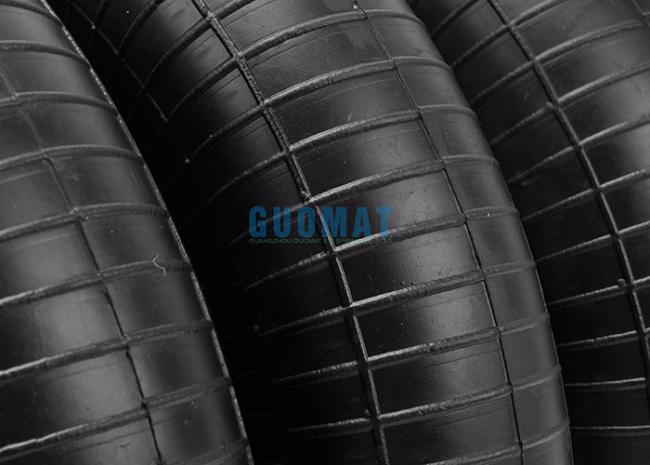

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter :300 mm

The Working Stroke : MAX 460 mm to MIN 130 mm

Maximum Height : 460 mm

Minimum Height :130 mm

Compression Height : 330 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop
