Description:
Norgren Imported M/31123 this kind of triple Convoluted Air Spring which is produced by Norgren. It can replace bellows Number 12"X3 ; M/31123 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.
OEM Cross reference:
Norgren M/31123
Firestone W01-R58-4062
Contitech : FT412-323
Goodyear : C2ECH
Dunlop pneuride: 12X3
Norgren M/31123
Norgren Part #: M/31123
Description
AIR BELLOWS 12 X 3
Specifications and Detail Technical Parameters:Style12" x3
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M10
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M10
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 260 mm
Bottom Cover Plate Diameter (Width): 260 mm
Material top and bottom plate:Steel
❹Rubber Bellows
Stroke of Rubber Bellows:100mm-430m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Rubber material Standard up to 70°C natural rubber

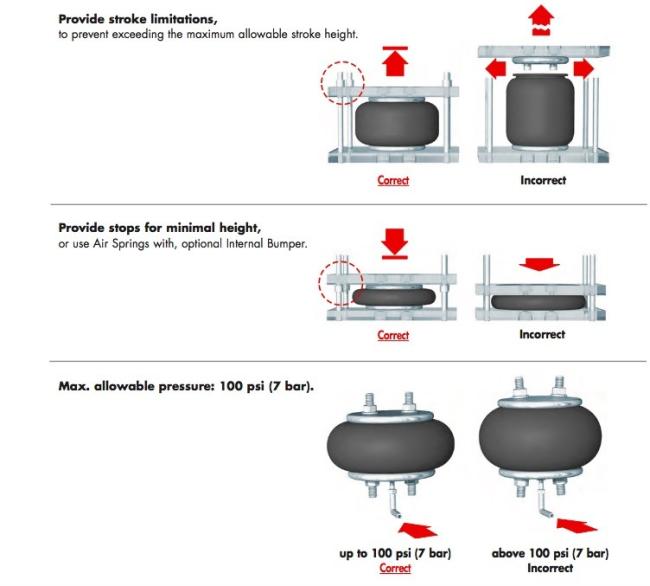

Installation and Operating Instructions:
Provide stroke limitations,
to prevent exceeding the maximum allowable stroke height.
Provide stops for minimal height,
or use Air Springs with, optional Internal Bumper.
Max. allowable pressure: 100 psi (7 bar).
Other models we import from Norgen:
| Model No: | M/31061 | M/31062 | M/31081 | M/31082 | M/31101 | M/31102 | M/31103 | M/31121 | M/31122 |
| Nominal ø (inch) x convolutions | 6 X 1 | 6 X 2 | 8 X 1 | 8 X 2 | 10 X 1 | 10 X 2 | 10 X 3 | 12 X 1 | 12 X 2 |
| Maximum Stroke (mm) | 55 | 115 | 80 | 175 | 100 | 225 | 330 | 100 | 225 |
| Port Size | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 |
| Model No: | M/31123 | M/31141 | M/31142 | M/31143 | M/31162 | M/31163 | M/31212 | M/31262 | |
| Nominal ø (inch) x convolutions | 12 X 3 | 14 ½ X 1 | 14 ½ X 2 | 14 ½ X 3 | 16 X 2 | 16 X 3 | 21 X 2 | 26 X 2 | |
| Maximum Stroke (mm) | 330 | 125 | 265 | 380 | 315 | 430 | 280 | 410 | |
| Port Size | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G1/2 | G3/4 | G3/4 |
