ISO/TS16949 Industrial Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM
Air Bags 2B120 With Natural DIA. 120MM MAX DIA.135MM For Modification of Japanese Cars
| OEM COMPLETE Number |
| 2B120 |

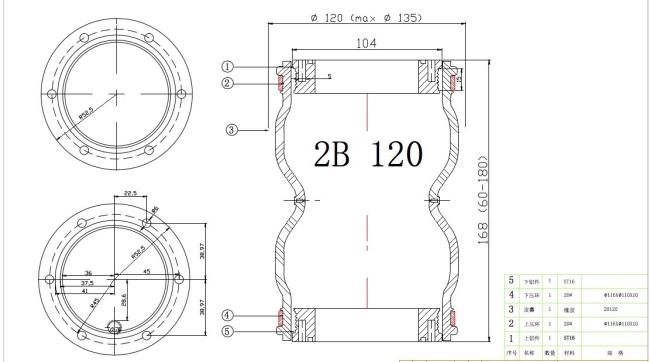

2B120 Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25
Screw Center Distance of Top Cover Plate : 90 mm
Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25
Screw Center Distance of Bottom Cover Plate : 90 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter (Width): 116mm
Bottom Cover Plate Diameter (Width): 116 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 120mm
Rubber Bellows MAX Diameter : 135 mm
Installation Space Diameter : 155 mm
Rubber Bellows Natural Height : 168 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
Pictures Show The Information Includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
