Replace Shock of Japanese Cars Air Spring 2B130-2 With Natural DIA. 130 MM MAX DIA.145MM​

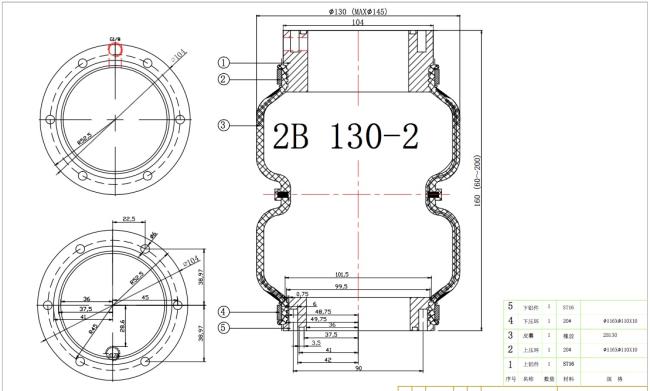

2B130-2 Specifications and Detail Technical Parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 90 mm

Bottom Cover Plate Screw (Nut) Tooth : 6 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 90 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/8

❸ Cover Plate

Top Cover Plate Diameter (Width): 104mm

Bottom Cover Plate Diameter (Width): 104 mm

❹Rubber Bellows

Rubber Bellows Natural Diameter : 130mm

Rubber Bellows MAX Diameter : 145 mm

Installation Space Diameter : 165 mm

Rubber Bellows Natural Height : 160 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Pictures Show The Information Includes:

Technical data

Vibration isolation - dynamic characteristic values

Pneumatic application - static characteristic values
