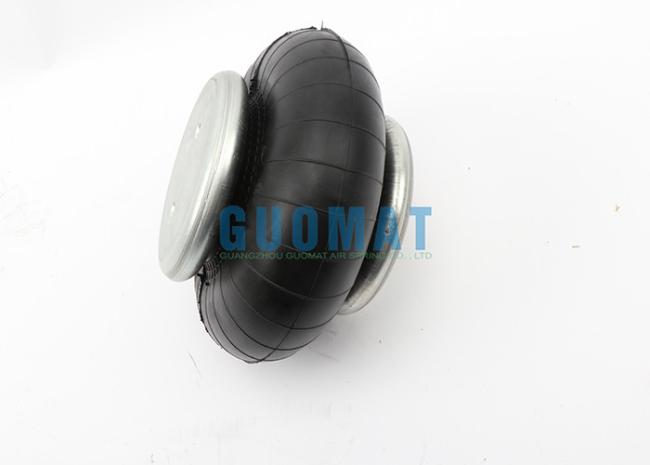

Rubber Steel Goodyear Air Spring / Industrial Air Bags 1B7-100 ,1B7-101 ,1B7-102 ,1B7-103 ,1B7-540 ,1B7-541 , B7-542
Goodyear Air Spring Industrial Air Bags 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542
GUOMAT Part Number:1B7451 Specifications and Technical parameters
| aximum Diameter @ 100 PSIG (mm) | 210.82 | Other Cross Reference |
Goodyear Air Spring Industrial Air Bags 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542
|
| Maximum Height (mm) | 140 | Manufacturer Part Number | 1B7-100,1B7-101 ,1B7-102 ,1B7-103,1B7-540,1B7-541,B7-542 |
| Maximum Stroke (mm) | 76.2 | Manufacturer | Goodyear Air Spring Industrial |
| Minimum Usable Height (mm) | 50 | Style Number | 540 |
| 1 Inch (pounds) | 2090 | Style Shape | Single Convolution |
| 3 Inch (pounds) | 1030 | Natural Frequency (@80 psig) (cpm) | 162 |
| Bead plate Type | 1 | 400 CPM % | 80.2 |
| Blind Nut Centers (mm) | 44.45 | 800 CPM % | 95.7 |
| Design Height | 4.5 | 1500 CPM % | 98.8 |
| 40 psig (pounds) | 650 | Maximum Stroke (pounds) | 940 |
| 60 psig (pounds) | 1010 | Material | 2-Ply Standard Cord |
| 80 psig (pounds) | 1390 |

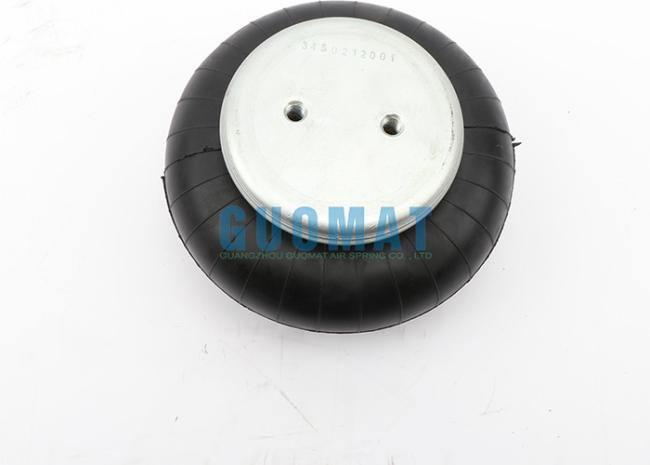

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 44.45 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 44.45 mm

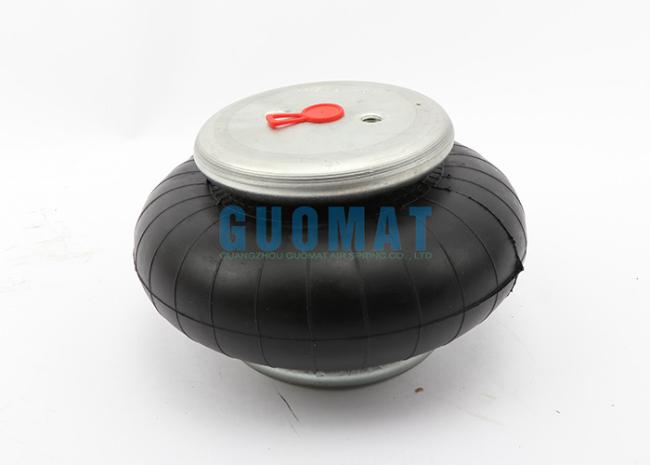

❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPTF
Screw Center Distance Between Gas Hole and Nut : 22.25 mm
❸ Cover Plate
Top Cover Plate Diameter: 115 mm
Bottom Cover Plate Diameter: 115 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 205 mm
Rubber Bellows Natural Diameter : 180 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
