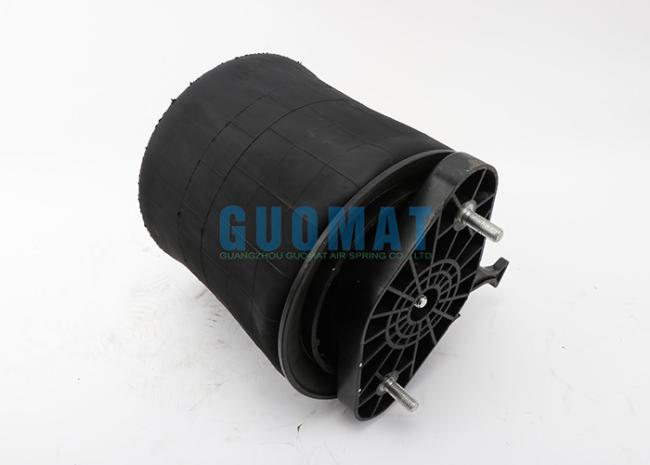

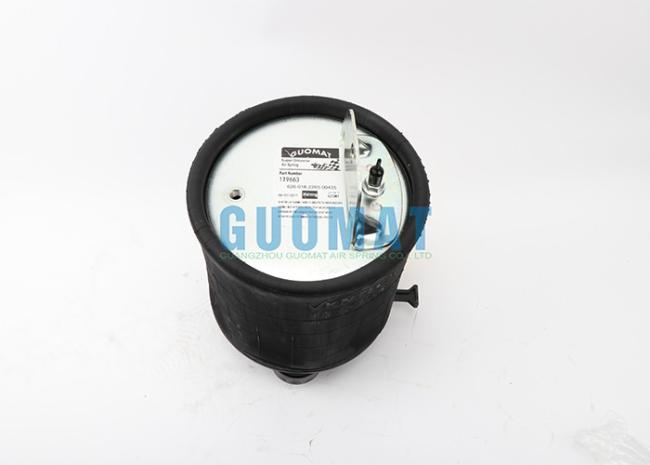

1T15M-8 Rubber Bellows W01-358-9663 Firestone For NEWAY M00557007​

Product Information

GUOMAT NO. : 1T9663

Vehicle Type: Truck

Positon: The Floating Bridge

Technical Parameters

1.Top Cover Plate

Screw Bolt / Stud Tooth :1 pcs :M12

Gas Hole / Air inlet : M20X1.5 , M12X1.5

Top Cover Plate Diameter: Ø231 mm

Distance Between Air inlet and Stud: 149 mm

2.Piston

Screw Bolt / Stud Tooth :1 pcs :M12

Distance Between Two Stud :in the middle

Piston Diameter: Ø254 mm

Piston Height: 124 mm

OEM Reference

Firestone  1T15M-8,

Firestone W01-M58-9663

Firestone W01 M58 9663

Firestone W01M589663

Vehicle OEM Reference

NEWAY M00557007

About Us...

Guangzhou Guomat Air Spring CO., Ltd.is located in Guangzhou, about 15min’s drive from BAIYUN AIRPORT. Our mainly products air spring, rubber bellow, air suspension compressor and refitted suspension system. They are widely used in bus, truck, cabin, vehicles’ seat, luxurious car and industrial machine field.
Our goal is to make your choice easier and save your money. We serve customers world-wide by offering quality goods at unbeatable prices, all while maintaining a focus on superior customer service. PLEASE FEEL FREE TO ASKANY QUESTIONS. All questions will be answered promptly (usually in less than 24 hours except weekends and holidays)
Give us your trust and we'll help you to repair or update your car!

The Warranty Period of Air Spring

GUOMAT air spring made of high quality materials(natural rubber), the warranty period of One Year.

Our air spring provides high performance and dynamics while ensuring perfect grip and maximum driving comfort in any case. In addition to improving the stability of the vehicle, they can reduce the number of vibratory movements due to road defects to optimize the comfort of passengers and allow you to ride smoothly.

Our dampers are designed to provide excellent ride quality by quickly adjusting to different road and vehicle conditions while providing ultimate safety and functionality.
