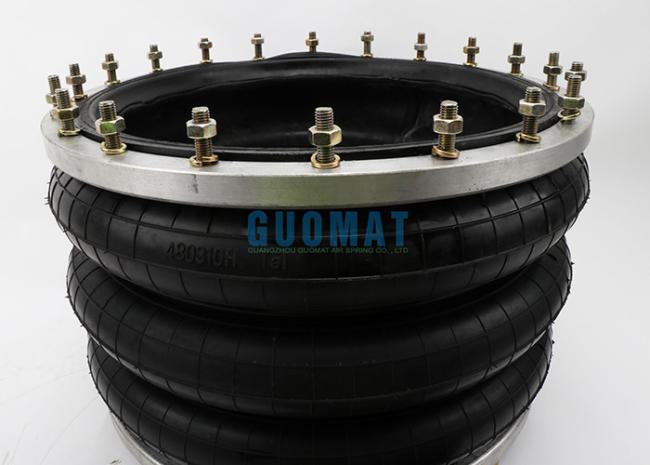

Durable Rubber Air Spring Guomat 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Price:
Negotiable
MOQ:
1pc
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description
Rubber Air Spring GUOMAT 3H520312 At 0.7 Mpa Max Dia 550mm With Ring 24pcs Bolts
Industrial Triple Convoluted Air Spring Specifications
Description Assembly
Description
Assembly Order No.
Style 520
Ribbed neck aluminum bead rings (equal spacing), 20pcs M10 bolts, nuts, washers
| Manufacturer Part Number | 3H520312 | Bead ring Type | 4 |
| Maximum Diameter @ 7 Bar (mm) | 550 | Dim# C (Bolt Circle Diameter mm) | 470 |
| Maximum Height (mm) | 378 | # of Bolts (each ring) | 24 |
| Maximum Stroke (mm) | 256 | Design Height (mm) | 381 |
| Minimum Usable Height (mm) | 224 | 3 Bar (kN) | |
| 25 mm (kN) | 5 Bar (kN) | ||
| 50% of Max Stroke (kN) | 7 Bar (kN) | ||
| Maximum Stroke (kN) | Natural Frequency (@5 Bar)(fn(Hz) | 1.2 | |
| Applicable Technigram? | 7 Hz | 97 | |
| Material | One-Ply, | 13 Hz | 99.3 |
| 25 Hz | 99.8 |
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
