W01-M58-6387 Industrial Air Spring GUOMAT 2B6387 For Smelly Water Processor

W01-M58-6387 Industrial Air Spring GUOMAT 2B6387 For Smelly Water Processor

GUOMAT 2B6387​ Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Top Cover Plate : 70 mm

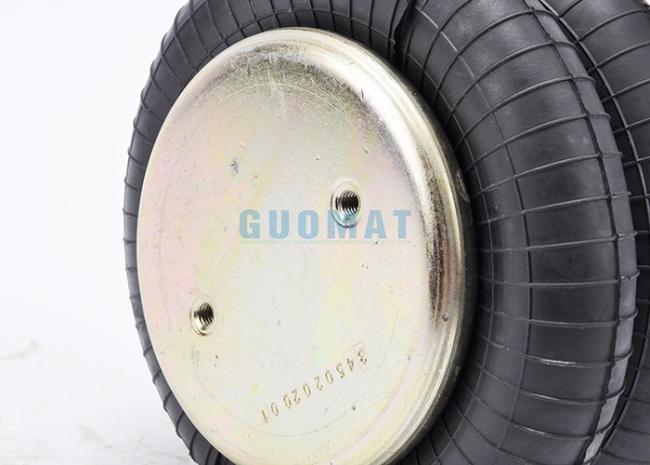

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X M8X1.25

Screw Center Distance of Bottom Cover Plate : 70 mm

❷ Gas Hole / Air inlet / Air Fitting

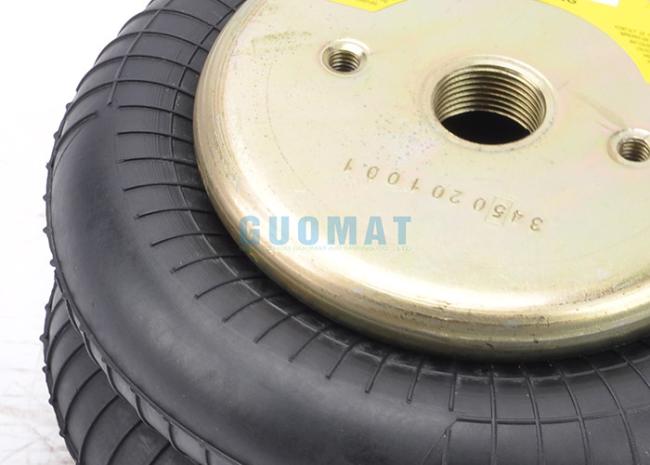

Gas Hole / Air inlet : G3/4 in the middle of the Top Cover Plate

Screw Center Distance Between Gas Hole and Nut : 35 mm

❸ Cover Plate

Top Cover Plate Diameter: 135 mm

Bottom Cover Plate Diameter: 135 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 215 mm

The Working Stroke : MIN 75 mm to MAX 230 mm

Maximum Height : 230 mm

Minimum Height :75mm

Rubber Bellows Natural Height: 167 mm

Stroke Height : 155 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop

Many OEM Original Equipment Manufacturers of FIRESTONE W01 M58 6387 :

W01-M58-6387, W01M586387, W01 M58 6387 WO1-M58-6387, WO1M586387

Other numbers air spring we can produce:


Style 26 Two Ply
Blind nuts, 1/4 BSP;W01-M58-6353;W01 M58 6353;W01M586353
Blind nuts, 3/4 BSP;W01-M58-6387;W01 M58 6387;W01M586387
Countersunk steel bead rings,40 mm bolts, nuts, washers:W01-M58-6988;W01 M58 6988;W01M586988
Rubber bellows only:W01-358-0142;W01 358 0142;W013580142
Force to collapse to minimum height (@ 0 BAR):102 N.
