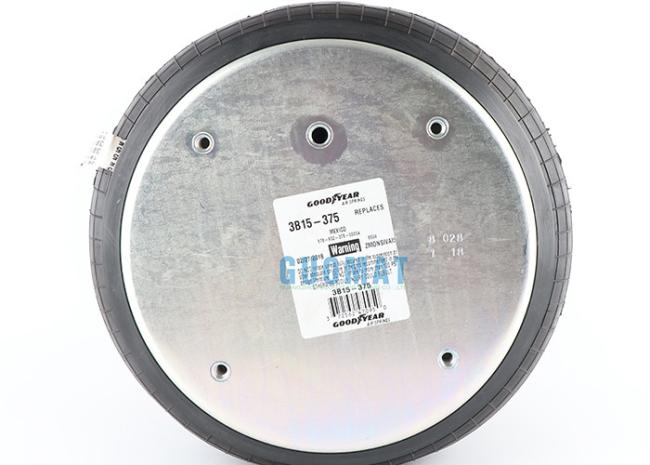

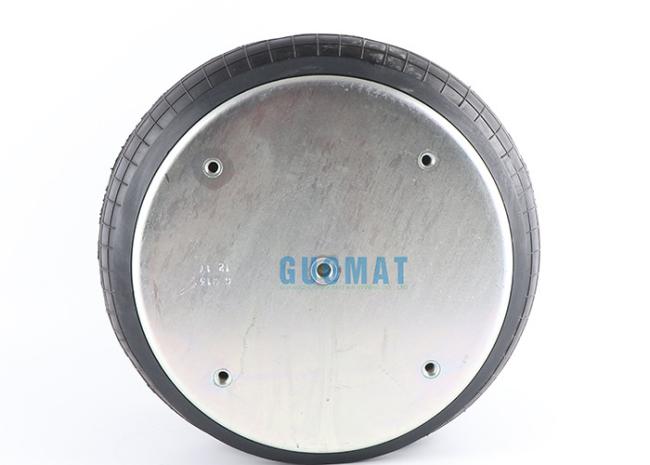

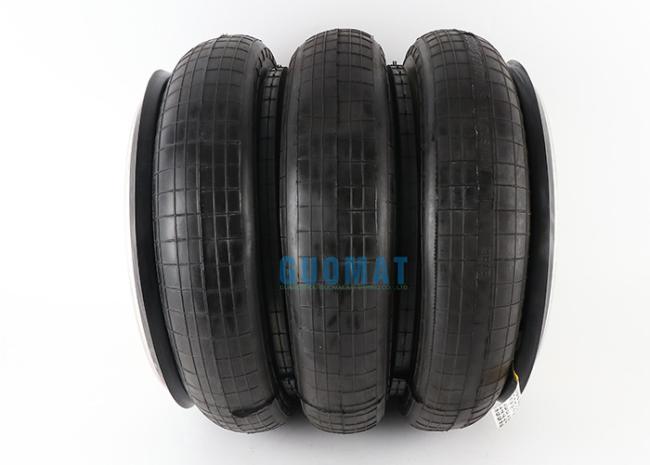

3B15-375 Goodyear 1 /4"-18 NPTF Air Fitting Durable Triple Convoluted Air Bag

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8

Top Cover Plate Combination Nut : 3/4-16UNF

Screw Center Distance of Top Cover Plate : 159 mm

Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8

Screw Center Distance of Bottom Cover Plate : 159 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4NPT , Combination Stud/Air Inlet Stud

❸ Cover Plate

Top Cover Plate Diameter (Width): 289 mm

Bottom Cover Plate Diameter (Width): 289 mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no Piece of Girdle Hoop

GUOMAT air springs are extremely durable and precise
Engineering design and cost-effectiveness for a variety of actuation and vibration isolation applications.
GUOMAT air springs have a time-tested design that combines
Fabric-reinforced or natural rubber flexible member structure
And corrosion-resistant end fixtures for superior quality and performance
can. As an actuator, GUOMAT air springs are available in linear or angular
motion.
Compared to cylinders, these air springs (air shock absorbers) provide
Desired stroke compression height ratio, and they can accept multiple actuation media
Quality, such as air, water, nitrogen, or antifreeze. As an isolator,

GUOMAT air springs effectively reduce the harmful effects of vibration. They can
To simultaneously isolate vibration and adjust the load height, and allow
Keep-induced vibration isolation under load.
GUOMAT offers a variety of air springs and air alkaline shakers
Type to meet your actuation or isolation needs. Single, double and trilogy
Face, film and sleeve types are available in a variety of sizes
Your specific installation requires an end retainer style.
In addition to our range of air springs, we also offer a variety of industrial shock absorbers
, Wire rope isolators, and many other energy and vibration absorption solutions
Solution.
