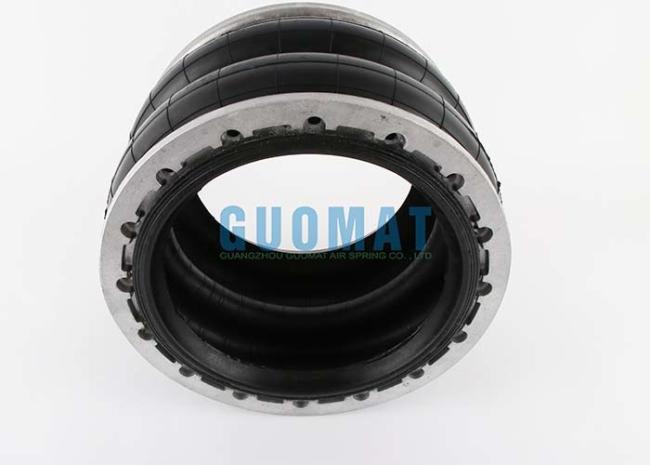

Industrial Double Convoluted Air Spring Specifications
Rubber bellows only
Style 28 Two Ply Bellows

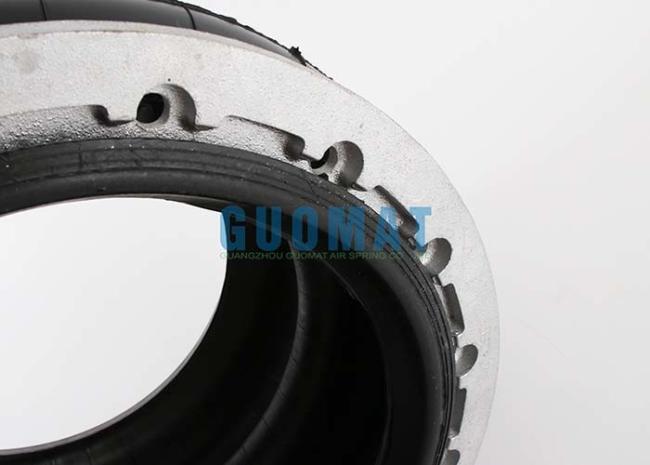

Ribbed neck aluminum bead,rings (equal spacing), 45 mm,bolts, nuts, washers:W01-M58-7531;W01 M58 7531;W01M587531
Rolled plate assembly,1/2 blind nuts, 3/4 NPT:SEE NOTE BELOW
Rubber bellows only:W01-358-7925;W01 358 7925;W013587925
Assembly weight.:.8.62 kg.
Force to collapse to minimum height (@ 0 BAR):169N.
W01-358-7191
W01-358-7194
W01-358-7192
W01-358-7271
W01-358-7925
W013587191
W013587194
W013587192
W013587271
W013587925
W01 358 7191
W01 358 7194
W01 358 7192
W01 358 7271
W01 358 7925
Style 201
High Strength Construction
Rubber bellows only:W01-358-0201;W01 3580201;W013580201
| Design Height (mm) | 241 | Maximum Diameter @ 7 Bar (mm) | 442 |
| Load (at Design Height) at: 3 Bar (kN) | 22.2 | Maximum Height (mm) | 84 |
| Load (at Design Height) at: 5 Bar (kN) | 51.6 | Maximum Stroke (mm) | 173 |
| Load (at Design Height) at: 7 Bar (kN) | 54.1 | Minimum Usable Height (mm) | 257 |
| Natural Frequency (@5 Bar)(fn(Hz) | 1.7 | Force in kN @ 5 Bar at Stroke of 25 mm | 60.5 |
| % of Isolation at Forced Frequency 7 Hz | 92.8 | Force in kN @ 5 Bar at Stroke of 50% of Max Stroke | 50.9 |
| % of Isolation at Forced Frequency 13 Hz | 98.3 | Force in kN @ 5 Bar at Stroke of Maximum Stroke | 34.4 |
| % of Isolation at Forced Frequency 25 Hz | 99.5 | Style Cross-Ref High Strength Style Number | 201 |
| Material | 2-Ply Standard Cord |
| Flange connection type of air spring model comparison table | |||
| GUOMAT NO. | Contitech NO. | GUOMAT NO. | Contitech NO. |
| FS22-3DICR | FS 22-3 DI CR | FS960-12RS | FS 960-12 RS |
| FS44-5DICR | FS 44-5 DI CR | FS1330-11RS | FS 1330-11 RS |
| FS76-7DICR | FS 76-7 DI CR | FS1710-12RS | FS 1710-12 RS |
| FS76-7DSCR | FS 76-7 DS CR | FS2870-16RS | FS 2870-16 RS |
| FS138-8DS | FS 138-8 DS | FS5450-16RS | FS 5450-16 RS |
| FS210-10DS | FS 210-10 DS | FD960-22RS | FD 960-22 RS |
| FS412-10DS | FS 412-10 DS | FD1120-30RI | FD 1120-30 RI |
| FS614-13DS | FS 614-13 DS | FD1330-25RS | FD 1330-25 RS |
| FS816-15DS | FS 816-15 DS | FD1710-25RS | FD 1710-25 RS |
| FD22-4DICR | FD 22-4 DI CR | FD1730-40RI | FD 1730-40 RI |
| FD44-10DICR | FD 44-10 DI CR | FD2380-24RS | FD 2380-24 RS |
| FD76-14DICR | FD 76-14 DI CR | FD2470-40RI | FD 2470-40 RI |
| FD76-14DSCR | FD 76-14 DS CR | FD2870-30RS | FD 2870-30 RS |
| FD138-18DS | FD 138-18 DS | FD5450-28RS | FD 5450-28 RS |
| FD209-21DS | FD 209-21 DS | FT960-34RS | FT 960-34 RS |
| FD210-22DS | FD 210-22 DS | FT1330-35RS | FT 1330-35 RS |
| FD412-18DS | FD 412-18 DS | FT1710-38RS | FT 1710-38 RS |
| FD614-26DS | FD 614-26 DS | FT2870-45RS | FT 2870-45 RS |
| FD816-30DS | FD 816-30 DS | FT5450-44RS | FT 5450-44 RS |
| FT22-6DICR | FT 22-6 DI CR | ||
| FT44-15DICR | FT 44-15 DI CR | ||
| FT76-20DICR | FT 76-20 DI CR | ||
| FT76-20DSCR | FT 76-20 DS CR | ||
| FT138-26DS | FT 138-26 DS | ||
| FT210-32DS | FT 210-32 DS | ||
| FT412-32DS | FT 412-32 DS | ||
| FT614-36DS | FT 614-36 DS | ||
| FT816-40DS | FT 816-40 DS | ||
