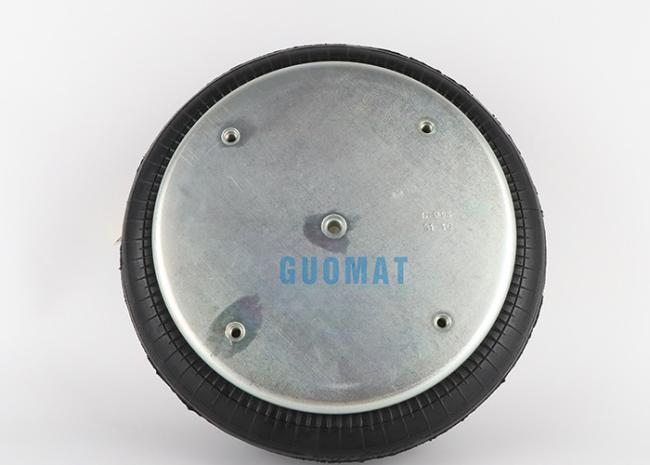

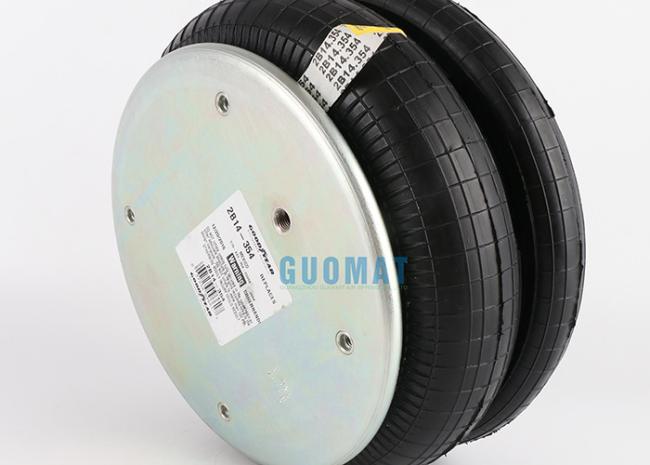

2B14-354 578-92-3-353 BWP M-3505 Goodyear Air Spring Bellow
2B14-354 Industrial Air Spring Goodyear Bellow NO. 578-92-3-353 For BWP M-3505
Assembly Weight: 9.05kg
Operating Temperature: 57Cº to -54Cº
2B14-354 Goodyear Product parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Top Cover Plate : 159 mm
Bottom Cover Plate Screw (Nut) Tooth : 4 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT
Center Distance Between Nut and Air inlet: 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter (Width): 289 mm
Bottom Cover Plate Diameter (Width): 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter : 406 mm
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 391 mm
Working Stroke : 287mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
2B14-354 Goodyear Cross OEM
Goodyear 2B14-350 ;
Goodyear 2B14 350;
Goodyear 2B14350
Goodyear 2B14-354;
Goodyear 2B14 354;
Goodyear 2B14354
Firestone:W01-358-7145
Firestone:W01 358 7145
Firestone:W013587145
Conti Tech:FD 530-22 CI 1/4 NPT
Conti Tech:FD530-22 CI 1/4 NPT
FIRESTONE 7145,W013587145,Conti 64548,FD530-22374,DAYTON 354-7145,INTL / NAVISTAR 554796C1,LOAD GUARD SC2016,Mac-k truck TRUCK 57QL239,RIDEWELL 1003587145C,S-4540-C,TRIANGLE 4374,VOL-VO 35203-0005,35203 -3204
Roof hole/stud: 5
Base plate hole/stud: 4
Top plate diameter: 11.3
Base plate diameter: 11.3
Collapse height: 3.5
Flexible members: 578-92-3-353
piston:
Piston type:-
Goodyear Trim: 2B14354
Crossover
Triangle spring: 4374
Firestone: 7145
Kangdi Technology: 64548
Reedwell: 1003587145C
batco: 10-97145
Goodyear Airlines: 2B14-350
VOL-VO/White/Car: 35203-0005
VOL-VO/White/Car: 35203-3204
Navistar / IHC: 554796C1
Mike: 57QL239
UCF / Impex: AB-2B14-354
Dallas Spring: AS7145
Midland / Haldex: CS214354
Euclid / Meritor Aftermarket: E-FS7145
ContiTech: FD530-22374
Euclid / Meritor Aftermarket: FS7145
BWP: M-3505
Hendrickson auxiliary equipment: S-13038
Reedwell: S4540C
Leland: SC2016
| Part Number |
Top Plate Qty |
Bottom Piston Qty |
Top Plate Dia |
Bottom Plate Dia. |
Collapsed Height |
Flexmember |
| 2B14-383 | 2 | 2 | 287.02 | 287.02 | 106.68 | 578-92-3-356 |
| 2B14-367 | 2 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-353 |
| 2B14-366 | 2 | 4 | 287.02 | 287.02 | 124.46 | 578-92-3-353 |
| 2B14-354 | 5 | 4 | 287.02 | 287.02 | 88.9 | 578-92-3-353 |
| 2B14-360 | 5 | 4 | 287.02 | 287.02 | 88.9 | 578-92-3-353 |
| 2B14-469 | 5 | 4 | 287.02 | 287.02 | 91.44 | 556-23-8-329 |
| 2B14-476 | 5 | 4 | 287.02 | 287.02 | 91.44 | 578-92-3-356 |
| 2B14-470 | 5 | 4 | 287.02 | 287.02 | 96.52 | 578-92-3-356 |
| 2B14-356 | 5 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-353 |
| 2B14-359 | 5 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-353 |
| 2B14-363 | 5 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-356 |
| 2B14-365 | 5 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-356 |
| 2B14-462 | 5 | 4 | 287.02 | 287.02 | 106.68 | 578-92-3-356 |
| 2B14-473 | 5 | 4 | 287.02 | 287.02 | 111.76 | 578-92-3-353 |
| 2B14-355 | 5 | 4 | 287.02 | 287.02 | 124.46 | 578-92-3-353 |
