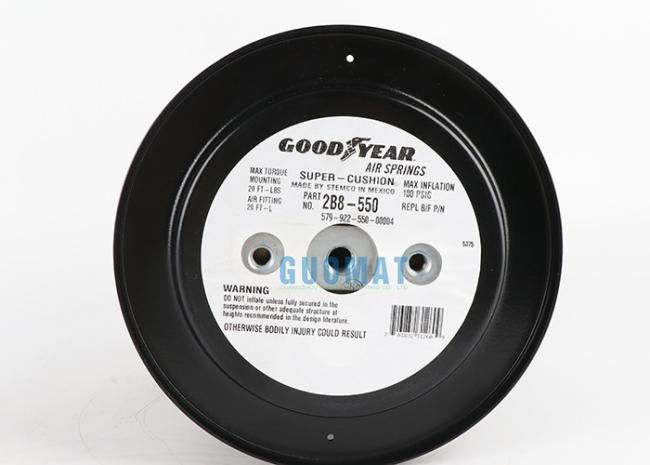

2B8-550 Goodyear Air Spring Bellows 579922550 For Mac-k truck 57QK113
2B8-550 Goodyear Industrial Air Spring Bellows No. 579922550 For Mac-k truck 57QK113
2B8-550 Goodyear OEM Original Equipment Manufacturer:
Goodyear part number: 2B8-550 / 2B8553 / 2B8 550
Goodyear Bellows No .: 579-92-3-550;579 92 2 550;579922550
❶Nuts/Blind Nuts
Top plate screw (nut) teeth: 2 X M8X1.25
Screw center distance of top cover plate: 52 mm
Bottom cover screw (nut) teeth: 2 X M8X1.25
Screw center distance of bottom cover: 52 mm
❷Blowhole/Air inlet/Air accessories
Blowhole/air inlet: M12X1.5
❸Cover
Top cover plate diameter (width): 135 mm / 5.31 inches
Bottom cover diameter (width): 135 mm / 5.31 inches
Top plate number: 3450
Bottom cover plate number: 3436
Bell rubber bellows
Natural diameter of rubber bellows: 189 mm
Natural height of rubber bellows: 177 mm
Compression height: 79 mm/3.12 inches
Design height: 178mm-203mm/7-8 inches
Maximum diameter: 218 mm / 8.6 inches
Bellows number: 26
❺Bumper block/buffer block
Without bumper block
❻Belt ring/belt ring
Has a belt hoop: a belt hoop
Roof hole/stud: 3 pcs
Floor hole/stud: 2 pcs
Top plate diameter: 5.03 inch
Base plate diameter: 5.03 inch
Folding height: 2.9 inch
Flexible members: 579-92-3-550
Goodyear Trim: 2B8550
Crossover
Triangle spring: 4509
Firestone: 7325
Kangdi Technology: 64601
US carrier: 8003006
Neway: 57007325
batco: 10-97325
Mike: 227QS-32
Mike: 57QK113
American Airlines: 8003-006
UCF / Impex: AB-2B8-550
Midland / Haldex: CS208550
Euclid / Meritor Aftermarket: E-FS7325
ContiTech: FD120-17509
Euclid / Meritor Aftermarket: FS7325
BWP: M-3557
American Airlines Number: 8003-006
Hendrickson Trailer ID: S-14395
Mark Number: 227QS-32
Triangle part number: 4509
Triangle bellows number: 6392
Watson & Charin ID: AS-0030
Sauer Code: P10-754
2B8-550 Goodyear Cross OEM
| BELLOW NO. | COMPLETE NO. | COMPLETE NO. |
| AIRKRAFT 114050 | AIRKRAFT 113067 | AIRKRAFT 113068 |
| CONTITECH 603 N | CONTITECH FD 120-20 509 | FIRESTONE W01-358-7327 |
| FIRESTONE FLEX 26 | FIRESTONE W01-358-7325 | GOODYEAR 2B8-552 |
| FIRESTONE W01 358 0142 | GOODYEAR 2B8-550 | |
| PIRELLI 26 | |
2B8-550 Goodyear Description
2B8-550 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your trucks, trailers and buses. Bellows air springs provide a constant level of traction and provide trouble-free service.
Goodyear airbags can protect cargo and provide horizontal transportation and long-term service. Bellows air springs provide quiet, cushioned driving and have a longer life than steel springs due to less vibration. The driver feels more comfortable while riding, reduces fatigue, and stays alert. In addition, the cargo has better shock and vibration resistance.
