Contitech Single CI G3/4 Industrial Suspension Air Spring 1B14-371 FS 530-11
FS 530-11 CI G3/4 Air Mouth Contitech Single Industrial Air Spring Suspension Refer to 1B14-371
FS 530-11 CI G3/4 Description:
Different types of fluidized beds can choose the appropriate load capacity of the air spring according to the total weight of the fluidized bed and design specific installation methods based on the length, width and height of the fluidized bed. However, the installation of air springs is advisable. This simplifies the installation of the insulation system considerably than the installation of steel springs.
There are two control methods for airbag insulation. One is a set (usually 4 or 6) of airbag check valve cushions, just like a car tire.
FS 530-11 CI G3/4 Specifications and Technical Data

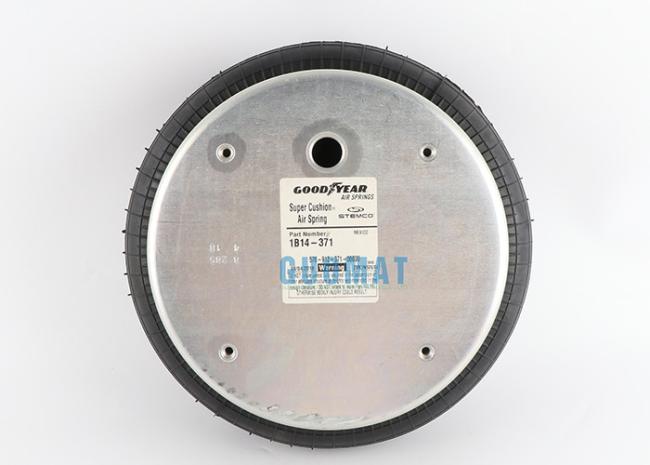

Manufacturer :Goodyear 1B14-371;
Goodyear:1B14 371;
Goodyear:1B14371
Goodyear Bellows:578-91-3-352
Goodyear Bellows:578 91 3 352
Goodyear Bellows:578913352
GUOMAT NO.:1B53014 3/4
Cross NO.:W01-M58-6100
Firestone:W01-M58-6100 ;
Firestone:W01 M58 6100;
Firestone:W01M586100
Contitech: FS 530-11 CI G 3/4
Contitech: FS530-11 CI G 3/4

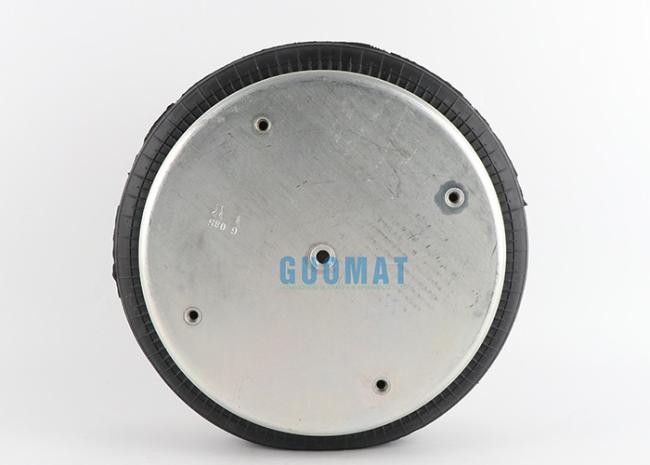

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth :4pcsX 3/8-16UNC
Screw Center Distance of Top Cover Plate :158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
Distance Gas Hole Between Nut 79.4 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 N P.T.F.
❸ Cover Plate
Top Cover Plate Diameter (Width): 289mm
Bottom Cover Plate Diameter (Width): 289 mm

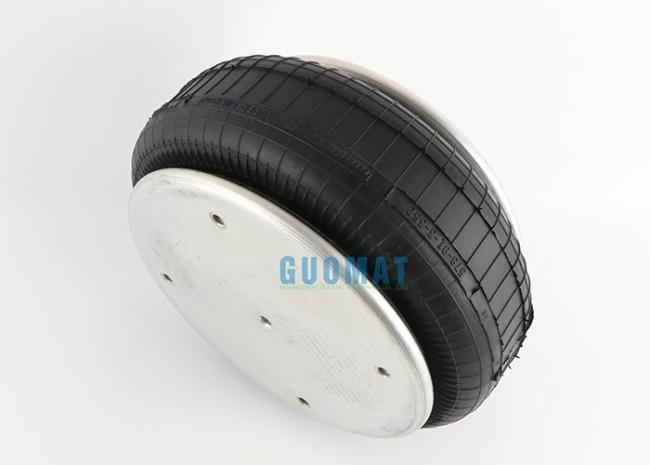

❹Rubber Bellows
Rubber Bellows Natural Diameter 380 mm
Rubber Bellows Max Diameter : 406 mm
Rubber Bellows Natural Height : 120 mm
The Working Stroke : MAX 160 mm to MIN 81 mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Without Girdle Hoop
The usal kinds of Single Convolution Air Actuator
| Maximum diameter @ 7 bar (mm) | Bead type |
| 406 | 2 |
| Maximum height (mm) | dim. A (Blind Hole Center) (mm) |
| 147 | 158.8 |
| Maximum travel (mm) | Air isolator |
| 97 | Design height (mm) |
| Minimum available height (mm) | 127 |
| 51 | Load (at design height): 3 Bar (kN) |
| Force at 25 mm travel in kN @ 5 Bar | 15.6 |
| 39.9 | Load (at design height): 5 Bar (kN) |
| KN force in units of 5 bar in 50% of the maximum stroke | 27.1 |
| 36.6 | Load (at design height): 7 Bar (kN) |
| KN force at a maximum stroke of 5 Bar | 38.9 |
| 18.7 | Natural frequency (@ 5 Bar) (fn (Hz) |
| Style cross-reference high strength style number | 2.4 |
| 128 | Isolation percentage at a forced frequency of 7 Hz |
| Style cross-reference extended height (similar end cap) style number | 86.9 |
| 113-1 | Isolation percentage at a forced frequency of 13 Hz |
| material | 97 |
| 2 layer standard line | Isolation percentage at a forced frequency of 25 Hz |
| Finishing details | 99.2 |
