556-33-8-335 3B14-450 Air Spring Bellows For Automann ABSP3B32RA-7845

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: Goodyear

Product Description

556-33-8-335 Goodyear 3B14-450 Air Spring Bellows FIRESTONE W013587845 For AUTOMANN ABSP3B32RA-7845

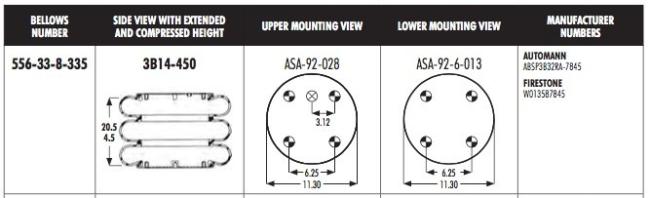

Goodyear 3B14-450 Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Top Cover Plate : 158.8 mm

Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 158.8 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF

❸ Cover Plate

Top Cover Plate Diameter: 289 mm

Bottom Cover Plate Diameter: 289 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 356 mm

Rubber Bellows Natural Diameter :282 mm

Design Height: 9-13 inches / 229mm-330mm

Maximum Height : 460 mm

❺ Bumper block / Buffer block

With Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :Two Pieces of Girdle Hoop

OEM Original Equipment Manufacturer:

Goodyear 3B14-450

Goodyear 556-33-8-335

FIRESTONE W013587845

AUTOMANN ABSP3B32RA-7845

57893245000000	57893245000000	20095074	Y	3B14-450	3B14-450
57893245000004	3B14-450	20116866	N	3B14-450 Bellows Air Spring	3B14-450 Bellows Air Spring
57893245000019	57893245000019	20095075	Y	ENIDINE YI-3B14-450	ENIDINE YI-3B14-450
57893245100000	893-2451	20881107	N	AIR SPRING BELLOWS	AIR SPRING BELLOWS
57893245100004	3B14-451	20095076	N	3B14-451 Bellows Air Spring	3B14-451 Bellows Air Spring
57893245200004	3B14-452	20035828	N	3B14-452 Bellows Air Spring	3B14-452 Bellows Air Spring
57893245300000	57893245300000	20099809	Y	3B14-453	3B14-453
57893245300004	3B14-453	20116867	N	3B14-453 Bellows Air Spring	3B14-453 Bellows Air Spring
57893245300019	57893245300019	20099880	Y	ENIDINE YI-3B14-453	ENIDINE YI-3B14-453
57893245400000	57893245400000	20116427	Y	3B14-454	3B14-454
57893245600004	3B14-456	20254221	N	3B14-456 Bellows Air Spring	3B14-456 Bellows Air Spring
57893245700004	3B14-457	20254222	N	3B14-457 Bellows Air Spring	3B14-457 Bellows Air Spring
57893245800004	3B14-458	20254223	N	3B14-458	3B14-458
57893245900004	3B14-459	20254224	N	3B14-459 Bellows Air Spring	3B14-459 Bellows Air Spring
57893246000004	3B14-460	20254226	N	3B14-460	3B14-460
57893246100004	3B14-461	20254227	N	3B14-461	3B14-461
57893246200004	3B14-462	20254228	N	3B14-462 Bellows Air Spring	3B14-462 Bellows Air Spring
57893246300004	3B14-463	20254229	N	3B14-463 Bellows Air Spring	3B14-463 Bellows Air Spring
57893246400004	3B14-464	20254230	N	3B14-464 Bellows Air Spring	3B14-464 Bellows Air Spring
57893246500000	57893246500000	20395896	Y	Halmek 556-3-3-8335M	Halmek 556-3-3-8335M
57893246500004	57893246500004	20395897	Y	3B14-465	3B14-465
57893246600000	57893246600000	20583265	Y	3B14-466	3B14-466
57893246600004	3B14-466	20583266	Y	3B14-466	3B14-466
57893246700081	57893246700081	20668930	Y	3B12-467 JOHN DEERE AN404831	3B12-467 JOHN DEERE AN404831
57893246800095	57893246800095	20806487	Y	P 3B12-312	P 3B12-312
57893246900091	57893246900091	20811407	Y	P 3B12-323	P 3B12-323
57893246900095	57893246900095	20806488	Y	P 3B12-323	P 3B12-323
57893247000095	57893247000095	20806500	Y	P 3B12-334	P 3B12-334
57893247100095	57893247100095	20806501	Y	P 3B14-452	P 3B14-452
57893247200090	57893247200090	20810175	Y	C 3B14-364	C 3B14-364
57893247200094	57893247200094	20810176	Y	C 3B14-364	C 3B14-364
57893247300090	57893247300090	20810177	Y	C 3B14-466	C 3B14-466
57893247400094	57893247400094	20810224	Y	C 3B15-375	C 3B15-375
57893247500091	57893247500091	20810363	Y	P 3B14-364	P 3B14-364
57893247500095	57893247500095	20810364	Y	P 3B14-364	P 3B14-364
57893247600091	57893247600091	20810367	Y	P 3B14-466	P 3B14-466
