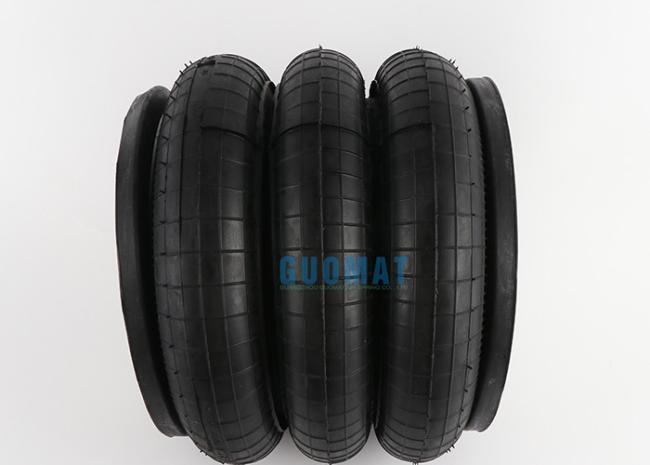

3B12-303 Goodyear Air Spring Shock FIRESTONE W013588018 For HISTEER 10303
Genuine 3B12-303 Goodyear Air Spring Shock FIRESTONE W013588018 For HISTEER 10303
3B12-303 Cross others OEM
Goodyear 3B12-303
Goodyear 3B12 303
Goodyear 3B12303
Goodyear Flexmember 578-93-3-100
Goodyear Flexmember 578 93 3 100
Goodyear Flexmember 578933100
Contitech FT 330-29 434 CI 1/4 NPT
Contitech FT 330 29 434
Contitech FT330-29 434
Firestone: 8018；
Firestone:W01-358-8018
Firestone:W01 358 8018
Firestone:W013588018
| CONTI | 64285 |
| CONTI | FT 330-29 434 |
| FIRESTONE | 8018 |
| FIRESTONE | W013588018 |
| HISTEER | 10303 |
| AUTOMANN | ABSP3B22R-8018 |
| LOAD GUARD | SC2131 |
| TRIANGLE | 4434 |
| TRP | AS80180 |
| WATSON & CHALIN | AS-0075 |

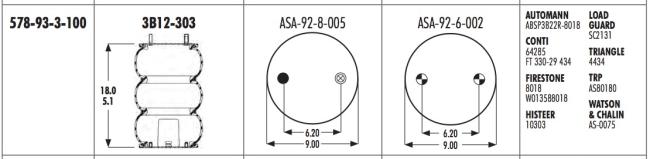

3B12-303 Goodyear Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pc X 3/8-16UNC
Top Cover Plate Screw (Nut) Tooth :1 pc X3/4-16UNC
Screw Center Distance of Top Cover Plate : 157.5 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157.5 mm
❷ Gas Hole / Air inlet / Air Fitting
Combination Stud Air Fitting:Stud – 3/4-16, Air Fitting – 1/4 NPTF

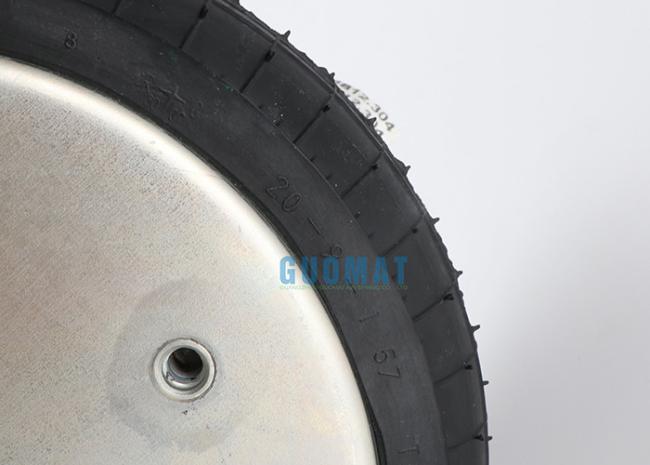

❸ Cover Plate
Top Cover Plate Diameter: 228.6 mm
Bottom Cover Plate Diameter: 228.6 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 330 mm
Rubber Bellows Natural Diameter : 300 mm
The Working Stroke : MIN 120 mm to MAX 457 mm
Maximum Height : 457 mm
Minimum Height :120 mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
