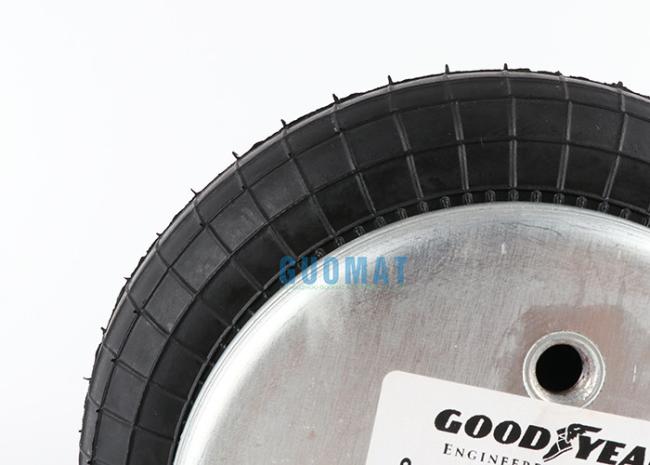

W013586940 Firestone Super Cushion Air Spring Goodyear 2B9-230
W013586940 FIRESTONE Air Spring Super Cushion Air Spring Goodyear 2B9-230 TRIANGLE 4450
OEM Original Equipment Manufacturer:
| Reference | OEM |
| FIRESTONE | W01-358-6940 W01 358 6940 W013586940 |
| Goodyear |
2B9-230 2B9 230 2B9230 |
| Goodyear |
578923202 / 578-92-3-202 / 578 92 3 202 |
AUTOMANN
ABSP2B12R-6940
CONTI
64513
FD 200-19 450
FIRESTONE
6940
W013586940
TRIANGLE
4450
TRP
AS69400
Air spring supplier brand name ContiTech
Reference: 161296
Competitor/supplier ID: FD20019450
Air spring supplier brand name Goodyear
Reference: 578923202
Competitor/supplier number: 2B9230
Air spring supplier brand name Triangle
Reference: 6325
Competitor/supplier ID: 4450
Suspended supplier name: Histeer
Competitor/supplier ID: 10305
Suspension supplier name: Langes
Firestone Trim name: w013586940

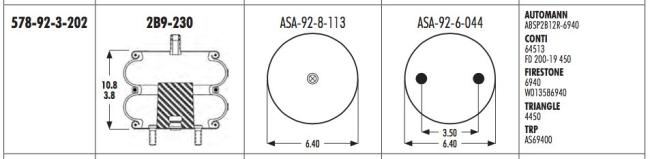

Specifications and Technical Data
Compressed Height: 3.12 / 79mm
Top Cover Plate Diameter: 6.31 inches / 160mm
Bottom Cover Plate Diameter: 6.31 inches / 160mm
Screw Center Distance : 89 mm
Distance Gas Hole Between Nut 44.5 mm
Top Cover Plate Screw (Nut) Tooth : 2pcsX1/212UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter 224 mm
The Working Stroke : MAX 274 mm to MIN 95 mm
Air Fitting: 1/2 NPTF or 3/8 NPTF
Firestone Bellows Number:20
Goodyear Part Number:2B9-230/ 2B9230 / 2B9 230
Goodyear Bellows Number:578-92-3-202 / 578923202 / 578 92 3 202
How to Calculation For Pneumatics, Such as
• Mass To Be Lifted 2000 M (Kg)
• Desired Stroke 190 S Min (Mm)
• Number Of Air Springs 4 N
• Minimum Installation Height 190 H Min (Mm)
• Minimum Installation Diameter 500 D (Mm)
• Air Pressure 6 P (Bar)
