159mm 2B9-240 Goodyear Air Spring W013587119 MCI 12C-1-36 Prevost 63-0166
2B9-240 Goodyear Air Spring IRESTONE W013587119 MCI 12C-1-36 PREVOST 63-0166

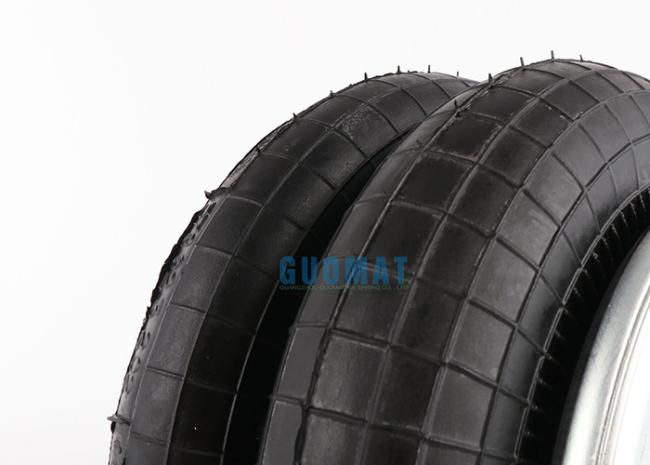

2B9-240 Goodyear air spring. Super-Cushion® air springs bring new high productivity and long life to your trucks, trailers and buses. Bellows air springs provide a constant level of traction and provide trouble-free service.
Goodyear airbags can protect cargo and provide horizontal transportation and long-term service. Bellows air springs provide quiet, cushioned driving, and because of less vibration, they have a longer service life than steel springs. The driver is more comfortable when riding, fatigue is reduced, and remains alert. In addition, the cargo has better shock and vibration resistance.
Manufacturer: Goodyear
Brand name: Goodyear
Product weight: 3.35 kilograms
Package size: 24*24*24 CM
Model: 2B9-240
Air spring 63-0166 12C-1-36

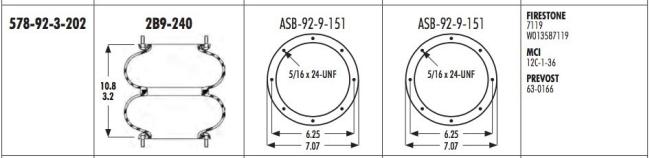

Goodyear Number: 2B9-240
Bellows type: double
Ultraman Bellow Number:
Firestone bellows Number:
Goodyear Bellows Number: 578-92-3-202
Contitech bellows Number:
Triangle bellows Number:
Base plate/neutron type:
Number of top plate holes/studs: 8
Top plate diameter: 7.07
Top plate C to C diameter: 6.25
Base plate hole bolt Qyt: 8
Diameter of base plate: 7.07
Diameter of base plate C to C: 6.25
Base plate part number:
Bottom plate alignment: parallel
Bumper: No
bracket:
Minimum height: 3.2
Maximum height: 10.8
2B9-240 Goodyear Air Spring Technical parameters
❶Nut / Blind Nut
Top plate screw (nut) teeth: 1/2-13 or 1/2-20
The screw center distance of the top cover plate: 159 mm
Screw (nut) teeth of the bottom cover plate: 1/2-13 or 1/2-20
Screw center distance of bottom cover plate: 159 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/2-18NPTF
Screw Center Distance Between Gas Hole and Nut : 79.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 180 mm
Bottom Cover Plate Diameter: 180 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 251 mm
Rubber Bellows Natural Diameter : 224 mm
The Working Stroke : MIN 75 mm to MAX 260 mm
Maximum Height : 274 mm
Minimum Height :95mm
Stroke Height : 179mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
