3B14-359 Goodyear Triple Convoluted Air Bags 578933350
3B14-359 Goodyear Air Spring Triple Convoluted Air Bags Goodyear Triple Bellow 578933350
Goodyear Air Spring 3B14-359 Technical parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC
Screw Center Distance of Top Cover Plate : 158.8 mm
Bottom Cover Plate Screw (Nut) Tooth : 4pcsX3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 158.8 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4 N P.T.F. / 1/4NPTF
❸ Cover Plate
Top Cover Plate Diameter: 289 mm
Bottom Cover Plate Diameter: 289 mm
❹Rubber Bellows
Rubber Bellows MAX Diameter: 356 mm
Rubber Bellows Natural Diameter :282 mm
Design Height: 9-13 inches / 229mm-330mm
Maximum Height : 460 mm
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :Two Pieces of Girdle Hoop
OEM Original Equipment Manufacturer:
| AUTOMANN INT’L/ ABSP3B32R-7818 | DAYTON |
| NAVISTAR 554803C1 | 354-7818 |
| LOAD GUARD SC2032 | E-Z RIDE |
| RIDEWELL | 8030180 |
| 1003587818C 1003587839C S-2685-C | FIRESTONE |
| TRIANGLE | 7816 |
| 4325 4437 | 7818 W013587816 W013587818 |
| WATSON & CHALIN AS-0025 AS-0033 | GRANNING |
| CONTI | 1014 1476 |
| 64503 | HENDRICKSON |
| FT 530-32 325 | B-6861 |

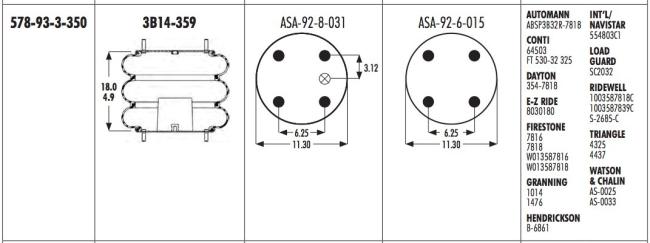

The drawing of Goodyear Air Spring 3B14-359:
The usal kinds of Double Convolution Air Springs
| 57893235900000 | 57893235900000 | 20095014 | Y | 3B14-359 TUTHILL 1014 | 3B14-359 TUTHILL 1014 |
| 57893235900004 | 3B14-359 | 20035824 | N | 3B14-359 Bellows Air Spring | 3B14-359 Bellows Air Spring |
| 57893236000000 | 57893236000000 | 20095024 | Y | 3B14-360 | 3B14-360 |
| 57893236000004 | 3B14-360 | 20035825 | N | 3B14-360 Bellows Air Spring | 3B14-360 Bellows Air Spring |
| 57893236100000 | 57893236100000 | 20095031 | Y | 3B14-361 | 3B14-361 |
| 57893236100004 | 3B14-361 | 20116540 | N | 3B14-361 Bellows Air Spring | 3B14-361 Bellows Air Spring |
| 57893236100019 | 57893236100019 | 20095032 | Y | ENIDINE YI-3B14-361 | ENIDINE YI-3B14-361 |
| 57893236400000 | 57893236400000 | 20095038 | Y | 3B14-364 | 3B14-364 |
| 57893236400004 | 3B14-364 | 20035826 | N | 3B14-364 Bellows Air Spring | 3B14-364 Bellows Air Spring |
| 57893236500000 | 57893236500000 | 20095044 | Y | 3B14-365 | 3B14-365 |
| 57893236500004 | 3B14-365 | 20095045 | N | 3B14-365 Bellows Air Spring | 3B14-365 Bellows Air Spring |
| 57893236700000 | 57893236700000 | 20095046 | Y | 3B14-367 | 3B14-367 |
| 57893236700004 | 3B14-367 | 20035827 | N | 3B14-367 Bellows Air Spring | 3B14-367 Bellows Air Spring |
| 57893237000000 | 57893237000000 | 20095053 | Y | 3B14-370 | 3B14-370 |
| 57893237300000 | 57893237300000 | 20095056 | Y | 3B14-373 HENDRICKSON 001285 | 3B14-373 HENDRICKSON 001285 |
| 57893237400000 | 57893237400000 | 20095057 | Y | 3B14-374 | 3B14-374 |
| 57893237400004 | 57893237400004 | 20116868 | Y | 3B14-374 | 3B14-374 |
