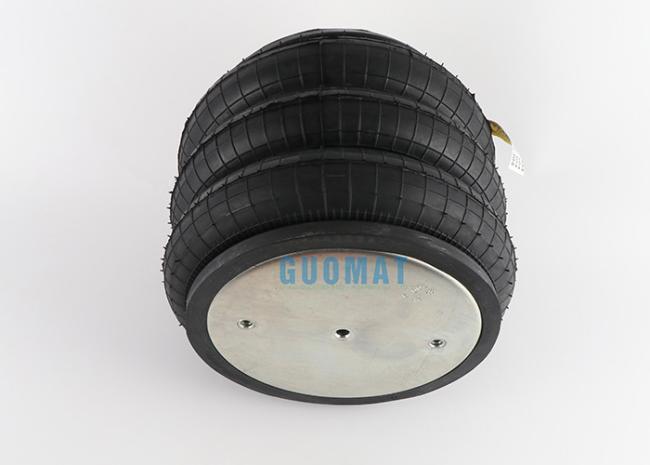

W013588006 Firestone Air Spring Super Goodyear Air Springs TRIANGLE 4430 For TRP ASP1710

W013588006 Firestone Air Spring 3B12-304 Cross others OEM

Firestone: 8006；

Firestone:W01-358-8006

Firestone:W01 358 8006

Firestone:W013588006
Firestone: 8013；

Firestone:W01-358-8013

Firestone:W01 358 8013

Firestone:W013588013

Firestone Flexmember Number- 38D

Goodyear 3B12-304

Goodyear 3B12 304

Goodyear 3B12304

Goodyear Flexmember 578-93-3-100

Goodyear Flexmember 578 93 3 100

Goodyear Flexmember 578933100

Triangle spring: 4430
Triangle spring: 4503
Kangdi Technology: 64568
Suspension company: 200620
batco: 10-98006
UCF / Impex: AB-3B12-304
T.W. Distribution: AB8006
Dallas Spring: AS8006
Midland / Haldex: CS312304
Euclid / Meritor Aftermarket: E-FS8006
Euclid / Meritor Aftermarket: FS8006
Kangdi Technology: FT330-29503
Leland: SC2132

Another similar kind 3B12-305, only Air Fitting Size (in) 3/4 is not the same.

W013588006 Firestone Air Spring 3B12-304 Goodyear Technical parameters

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Top Cover Plate : 157.5 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC

Screw Center Distance of Bottom Cover Plate : 157.5 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4-18NPTF

Screw Center Distance Between Gas Hole and Nut : 73 mm

❸ Cover Plate

Top Cover Plate Diameter: 228.6 mm

Bottom Cover Plate Diameter: 228.6 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 330 mm

Rubber Bellows Natural Diameter : 300 mm

The Working Stroke : MIN 120 mm to MAX 457 mm

Maximum Height : 457 mm

Minimum Height :120 mm

Stroke Height : 179mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :One Pieces of Girdle Hoop
