1R14-037 Goodyear Air Spring Flexmember 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648

1R14-037 Goodyear Air Spring Flexmember Number 566-28-3-015 FIRESTONE W013589215 For HENDRICKSON B-3648

OEM Cross Number:

GOODYEAR 1R14-037

Flexi Member 566-28-3-015

UTOMANN
AB1DK28L-9215
HENDRICKSON
B-3648
CONTI
11 10 5-15 A 414 64424
DAYTON
352-9215
FIRESTONE
9215 W013589215
INT’L/ NAVISTAR 554781C1
LOAD GUARD SC2047
TRIANGLE
8414

OEM Suspension Supplier Number:

Goodyear Number: 1R14-037

Bellows type: rolling leaf

Ultraman bellows Number: 1DK28L

Firestone bellows Number: 1T19F-5, 1T19L-5

Goodyear Bellows Number: 566-28-3-015

Contitech bellows Number: 11 10.5-15

Triangle bellows Number: 6417

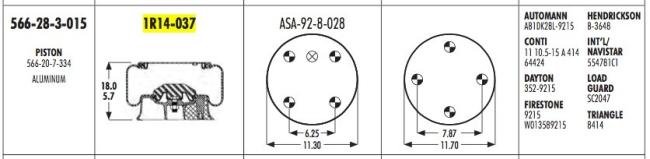

Base plate/neutron type: aluminum

Number of top plate holes/studs: 5

Top plate diameter: 11.3

Top plate C to C diameter: 6.25

Base plate hole bolt Qyt: 4

Diameter of base plate: 11.7

Diameter of base plate C to C: 7.87

Base plate part number: 566-20-7-334

Bottom plate alignment: 45 degrees

Bumper: Yes

Bracket: Not applicable

Minimum height: 5.7

Maximum height: 18

The Composition Of Reversible Sleeve Models Rolling Air Spring Element Has The Following Aspects-GUOMAT

❶ screw bolt / Stud - Produced as a permanent part of the Cover Plate assembly for maximum strength and durability. It is used to attach the air spring to the vehicle’s suspension system.

❷ Combined link rod / Combo Stud – Used as the dual purpose of installing the air spring to the suspension system and providing the air inflation.

❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.

❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.

❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.

❻ Bottom Piston - Provides a low installation of air spring. To control the pressure in a changing under the load characteristics of spring.

❼Piston Bolt - Connecting the piston to the bellows. Sometimes extensions as an additional vehicle suspension spring.
