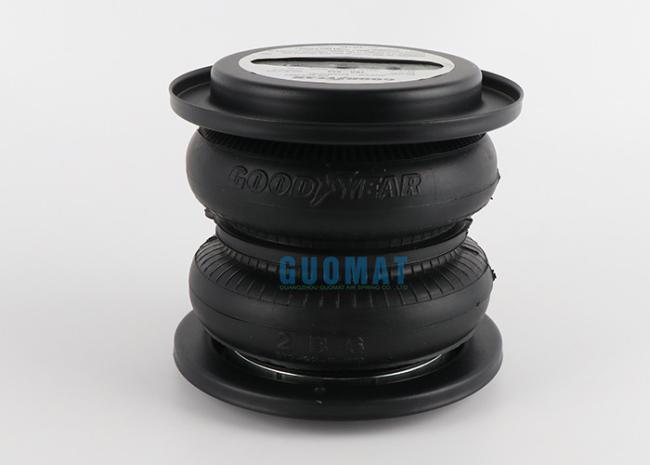

2B6-833 Goodyear Air Spring Bellows 579-92-3-510 Auto Parts Double Convoluted Rubber Shock Absorber

The specifications of the Goodyear 2B6-833 air spring are different from other double-layer traditional models because the 2B6-833 Goodyear air spring’s folding design and sleeve bellows have twice the Goodyear air spring reduction vibrator. They will provide similar features and functions, but in the sleeve type, the end cap bracket is permanently fixed by pinching the elastic member between the end cap bracket and the external crimping ring. The material used for the cover plate holders at both ends of the Goodyear 2B6-833 air spring is aluminum alloy, which is more corrosion-resistant than iron and lasts longer.

2B6-833 OEM Original Manufacturer:

Goodyear Original Part NO.:2B6-833;

Goodyear Original Part NO.:2B6 833;

Goodyear Original Part NO.:2B6833

Goodyear Flexmember Part NO.:579-92-2-833;

Goodyear Flexmember Part NO.:579 92 2 833;

Goodyear Flexmember Part NO.:579922833

Goodyear Bellows Part NO.:579-92-3-510

Goodyear Bellows Part NO.:579 92 3 510

Goodyear Bellows Part NO.:579923510

Specification of 2B6-833 Goodyear Air Spring:

Bellow Type: Double
Goodyear Bellow #: 579-92-3-510
Bottom Plate/Pison Type:
Top Plate Hole/Stud Qty: 2
Top Plate Dia: 4.15
Top Plate C to C Diameter: 2.75
Bottom Plate Hole Stud Qyt: 2
Bottom Plate Dia: 4.15
Bottom Plate C to C Diameter: 2.75
Bottom Plate Alignment: Parallel
Bumper: No
Bracket:
Min Height: 2.8
Max Height: 9.1
