W01-M58-6944 Suspension Firestone Air Spring Triangle Air Lift Bags 6332/4454 For Arvin meritor 200118

GUOMAT 2B6944 Specifications and Technical Data

Compressed Height: 3.12 inches

The Working Stroke : MAX 325 mm to MIN 95 mm

Firestone Bellows Number: 20-2

Bellows NO.: 20-2

Assembly Weight: 8.1 lbs

Design Height: 9-11 inches

Loading Capacity at 20 psig: 648 lbsf

Loading Capacity at 60 psig: 1,944 lbsf

Loading Capacity at 90 psig: 2,916 lbsf

Maximum Diameter: 10.4 inches

Operating Temperature: 56Cº to -53Cº

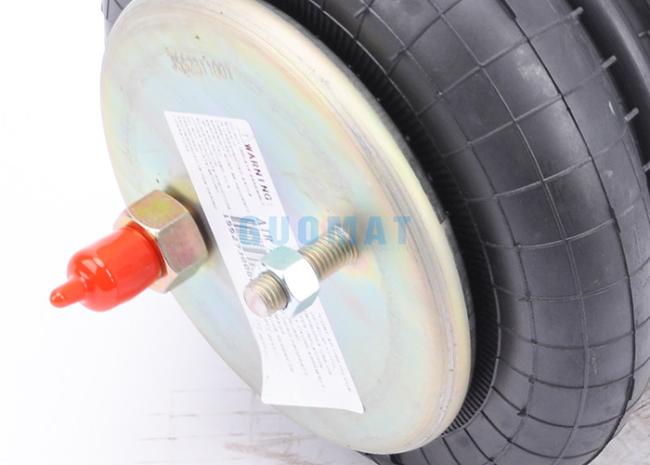

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 PiecesX1⁄2-20UNF
Screw Center Distance of Top Cover Plate :86 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 PiecesX1⁄2-20UNF
Screw Center Distance of Bottom Cover Plate :3.5 inches / 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/8NPTF
❸ Cover Plate
Top Cover Plate Diameter (Width): 6.4 inches / 160 mm
Bottom Cover Plate Diameter (Width): 6.4 inches / 160 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 232.5mm
Rubber Bellows Natural Height : 235 mm

Working Stroke:MIN 95 To MAX 325MM
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Piece of Girdle Hoop

Goodyear: 2B6944 Cross others OEM

Suspended supplier: Arvin Meritor

Competitor/supplier ID: 200118

Suspended supplier name: Histeer

Competitor/supplier ID: 10307

Suspension supplier name: Langes

Suspension supplier name: Leland

Competitor/supplier number: SC2124

Suspended supplier name: Tuthill Technology

Competitor/supplier ID: 6390

Suspension supplier name: Watson & Chalin

Competitor/supplier number: AS0115G

Firestone Trim name: w013586944

Air spring supplier brand name: ContiTech

Reference: 161337

Competitor/supplier ID: FD20025454

Air spring supplier brand name: Goodyear

Competitor/supplier number: 2B9246

Air spring supplier brand name: Goodyear

Reference number: 578923206

Competitor/supplier number: 2B9252

Air spring supplier brand name: Goodyear

Competitor/supplier number: 2B9266

Air spring supplier brand name: Goodyear

Reference: 578923208

Competitor/supplier number: 2B9352

Air spring supplier brand name: Triangle

Reference: 6332

Competitor/supplier ID: 4454

Compared with the traditional coil springs and leaf springs, air suspension springs have the following characteristics:

Reduce the vehicle failure rate: new energy vehicles need to carry a car battery and other energy supply system, the design of the vehicle will be more biased in the most sophisticated and complex direction, the air spring can achieve the vehicle from no-load to full load of constant low frequency, reduce vehicle vibration, Maintain auto parts, reduce vehicle malfunction and improve vehicle attendance.
