W01-358-7306 Firestone Industrial Air Spring Screw Holes Two Ply
W01-358-7306 Firestone Industrial Air Springs Inch Screw Holes Two Ply High Strength Bellows Style 321
Industrial Triple Convoluted Air Spring Specifications
Description Assembly
Description
Assembly Order No.
Style 321
Ribbed neck aluminum beadrings (unequal spacing) 17/8 b,n,w
Firestone Bellows Number :321
Firestone Parts Number :W01-358-7306
Firestone Parts Number : W01 358 7306
Firestone Parts Number : W013587306
The sizes of W01-358-7306 Firestone Air Spring:
| Manufacturer Part Number |
W01-358-7306, W013587306, W01 358 7306 WO1-358-7306, WO13587306 WO1 358 7306 |
Bead ring Type | 4 |
| Maximum Diameter @ 7 Bar (mm) | 709 | Dim# C (Bolt Circle Diameter mm) | 597 |
| Maximum Height (mm) | 114 | # of Bolts (each ring) | 32 |
| Maximum Stroke (mm) | 361 | Design Height (mm) | 381 |
| Minimum Usable Height (mm) | 475 | 3 Bar (kN) | 78.5 |
| 25 mm (kN) | 174.6 | 5 Bar (kN) | 132.9 |
| 50% of Max Stroke (kN) | 150 | 7 Bar (kN) | 187.9 |
| Maximum Stroke (kN) | 106.5 | Natural Frequency (@5 Bar)(fn(Hz) | 1.2 |
| Applicable Technigram? | 113 | 7 Hz | 97 |
| Material | 2-Ply, High Strength Cord | 13 Hz | 99.3 |
| 25 Hz | 99.8 |
The data of W01-358-7306 Firestone Air Spring:
|
Assembly Height (mm)
|
440 | 400 | 360 | 320 | 280 | 240 | 200 | 160 | |
| Volume @ 7 BAR (cu cm) | 135784 | 125615 | 114722 | 102796 | 90465 | 77839 | 64589 | 50778 | |
| EFF Area @ 7 BAR (cm sq) | 2394 | 2596 | 2757 | 2897 | 3026 | 3151 | 3277 | 3407 | |
|
kN Force
|
@3 BAR
|
67.39 | 74.50 | 80.12 | 84.65 | 88.33 | 91.63 | 95.16 | 99.35 |
|
@4 BAR
|
92.19 | 101.14 | 108.37 | 114.48 | 119.71 | 124.49 | 129.35 | 134.85 | |
|
@5 BAR
|
116.52 | 127.36 | 136.16 | 143.61 | 150.09 | 156.08 | 162.19 | 168.98 | |
|
@6 BAR
|
143.26 | 155.70 | 165.72 | 174.35 | 182.12 | 189.54 | 197.05 | 204.99 | |
|
@7BAR
|
167.54 | 181.66 | 192.94 | 202.76 | 211.80 | 220.56 | 229.36 | 238.43 |
The data 2 of W01-358-7306 Firestone Air Spring:
| Dynamic Characteristics at 380 mm Design Height (Required for Airmount isolator design only) | |||
|
Gauge Pressure (BAR) |
Load (KN) | Spring Rate (kN/m) | Natural Frequency Hz |
| 3 | 77.48 | 465 | 1.22 |
| 4 | 104.95 | 592 | 1.18 |
| 5 | 132.00 | 716 | 1.16 |
| 6 | 160.98 | 839 | 1.14 |
| 7 | 187.60 | 954 | 1.12 |

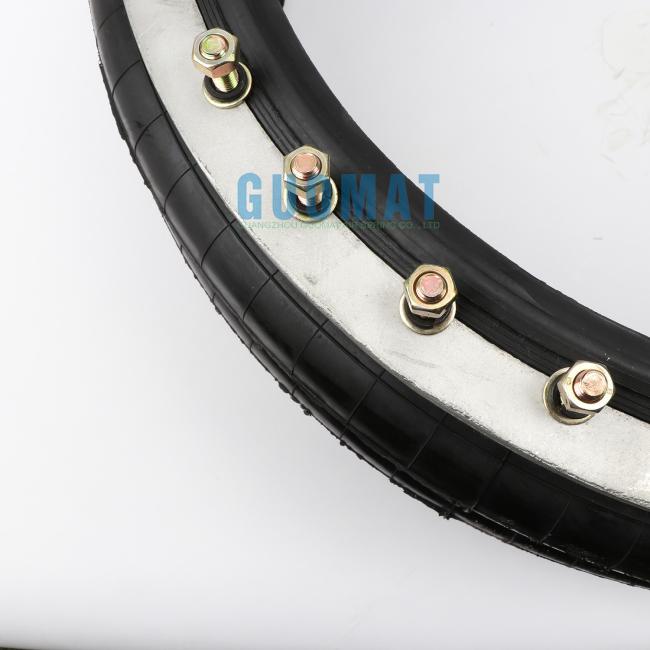

The detail pitures 1 of W01-358-7306 Firestone Air Spring:

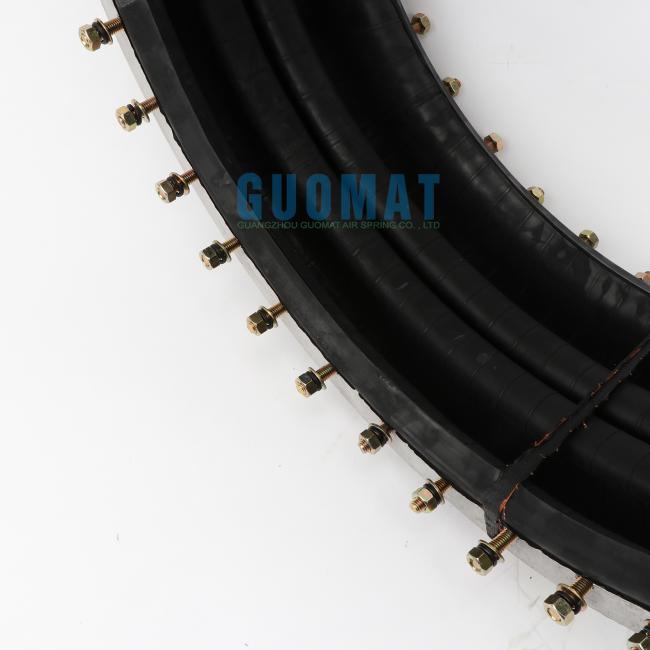

The detail pitures 2 of W01-358-7306 Firestone Air Spring:
