Firestone Air Spring 207 Ribbed Neck Aluminum Bead Rings W01-M58-6987
Price:
Negotiable
MOQ:
1pc
Delivery Time:
2-8 work days
Brand:
GUOMAT
Product Description
W01-M58-6987 Firestone Air Spring High Strength Con- struction Style 207 Ribbed Neck Aluminum Bead Rings
GUOMAT NO.520217H-2D Air Spring Specifications
GUOMAT NO.520217H-2D
Firestone:Style 207

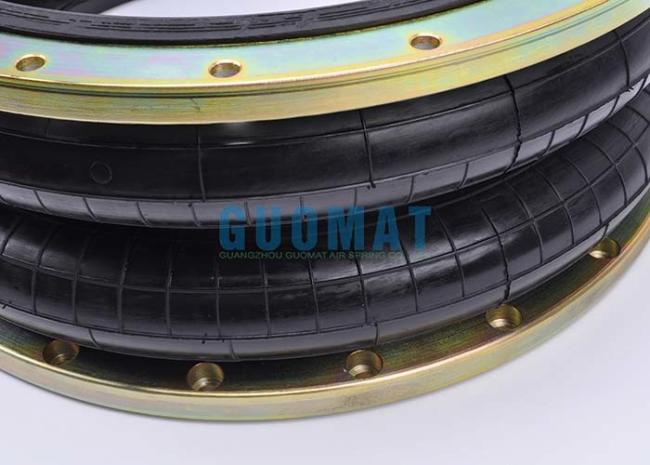

Ribbed neck aluminum
bead rings (equal spacing),
45 mm bolts, nuts, washers
Firestone:Order No.: W01-M58-6987;
Firestone:W01 M58 6987;
Firestone:W01M586987
High Strength Construction
Rubber bellows only
Firestone Rubber bellows:Order No.: W01-358-0207;
Firestone Rubber bellows:W01 358 0207;
Firestone Rubber bellows:W013580207
| GUOMAT NO.520217H-2D Force Table (Use for Airstroke™ actuator design) | |||||||
| Assembly Height (mm) | Volume @ 7 BAR (cu cm) | EFF Area @ 7 BAR (cm sq) | @ 3 BAR | @ 4 BAR | @ 5 BAR | @ 6 BAR | @ 7 BAR |
| 280 | 53863 | 1317 | 37.03 | 50.72 | 64.11 | 78.82 | 92.17 |
| 240 | 47704 | 1618 | 47.12 | 63.62 | 80.06 | 97.4 | 113.25 |
| 200 | 40443 | 1814 | 53.26 | 72.74 | 90.77 | 109.45 | 127 |
| 160 | 32306 | 1962 | 57.95 | 78.61 | 98.18 | 118.39 | 137.31 |
| 120 | 23824 | 2110 | 62.84 | 84.57 | 105.81 | 127.52 | 147.69 |
| 80 | 15280 | 2255 | 67.74 | 90.95 | 113.48 | 136.38 | 157.84 |
| GUOMAT NO.520217H-2D Dynamic Characteristics at 240 mm Design Height (Required for Airmount isolator design only) | |||
| Gauge Pressure (BAR) |
Load (KN) | Spring Rate (kN/m) | Natural Frequency Hz |
| 3 | 47.12 | 497 | 1.62 |
| 4 | 63.62 | 663 | 1.61 |
| 5 | 80.06 | 795 | 1.57 |
| 6 | 97.4 | 923 | 1.54 |
| 7 | 113.25 | 1050 | 1.52 |
