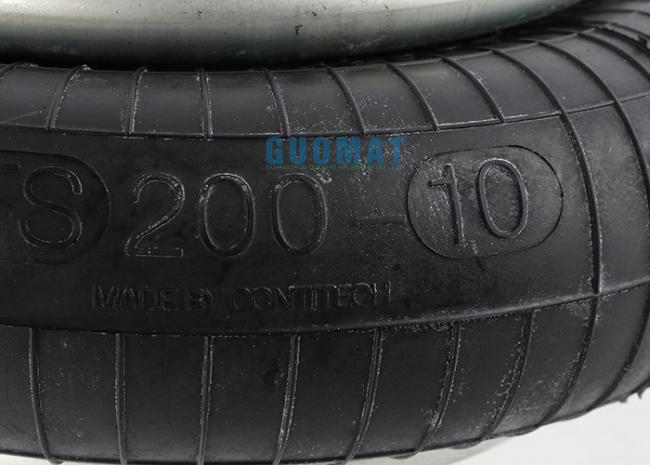

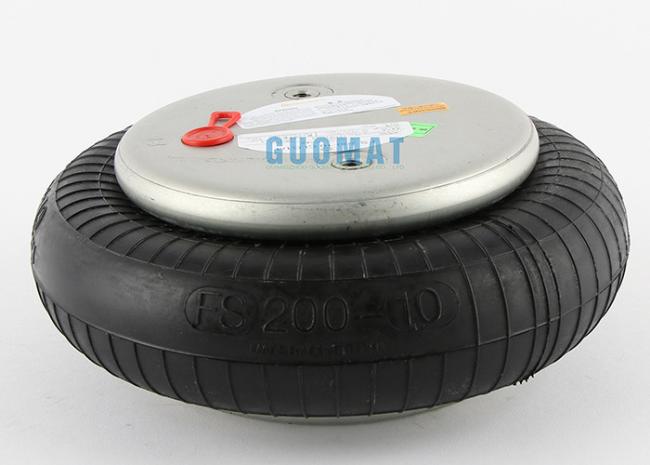

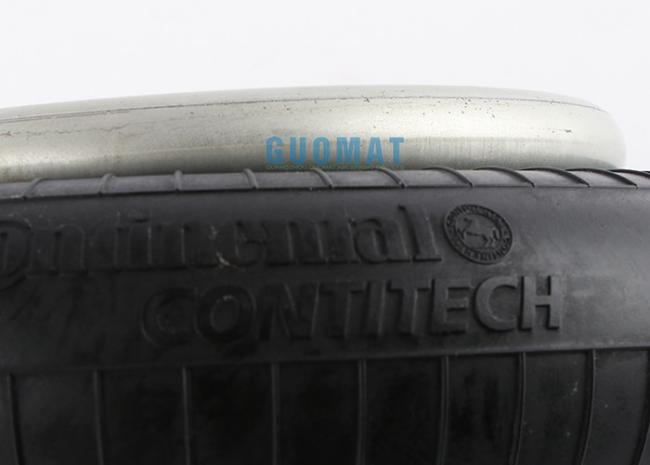

Rubber Steel FS200-10 Contitech Industrial Air Bags M8 Screw
FS200-10 Contitech Air Spring Industrial Air Bags Really original Actuator
Product Description
Technical Data
- Minimum pressure-0 psi
- Restoration force to minimum height-<45LBF / 200N
- Whole machine weight-4.4LB
- Minimum design height-2.01 inches / 51 mm
- Required space-9.65 inches / 245 mm
- Maximum stroke-3.9 inches / 99 mm
- Top plate diameter 160mm
- Diameter of bottom cover 160 mm
- Screw center distance 89 mm
- The air hole distance between the nuts is 44.5 mm
- air hole g1/4
- Screw (teeth) teeth 2pcsXM8
FS 200-10 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 981 | 1,530 | 2,040 | 2,570 | 3,090 | 124 | |
| Spring rate c [lbf/in] | 701 | 1,000 | 1,290 | 1,560 | 1,870 | 124 | |
| Natural Frequency f0 [Hz] | 2.7 | 2.7 | 2.6 | 2.5 | 2.5 | 124 | |
| Design height H: recommended 4.53 inch, minimum 3.94 inch |
|||||||
FS 200-10 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 | |
| H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 | |
| H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 | |
| H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 | |
| H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 | |
FS 200-10 PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| Rubber bellows only | – |
62828 |
|
| with crimped plates |
1/4 NPT 0 in. excentrical |
75229 |
|
| with crimped plates | – |
75248 |
|
FS 200-10 SERVICE INSTRUCTIONS
| Thread | max. Torque | |
|---|---|---|
| 2X3/8-16UNC | 20 lbf ft / 2.26N.M | |
| 1/4NPT | 20 lbf ft / 2.26N.M |
FS 200-10 Features:
1,It can be used with height adjustment valve, which can always maintain a constant height to prevent load fluctuations.
2, It can be used together with auxiliary tank and throttle valve to obtain excellent damping effect. And it can reduce the resonance amplitude.
3, This air spring is simple in structure and easy to install and disassemble.
