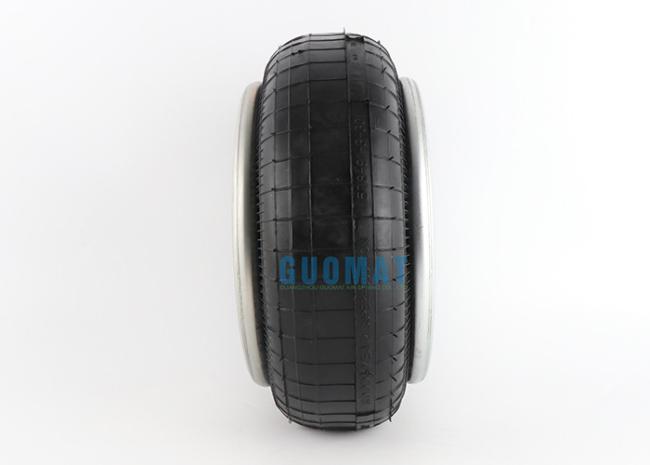

578-91-3-301 Goodyear Air Bags 1B12-313 Single Industrial Air Spring Convoluted Super 335mm Outsied Dia.
578-91-3-301 Goodyear Air Bags 1B12-313 Single Industrial Air Spring Convoluted Super 335mm Outsied Dia.

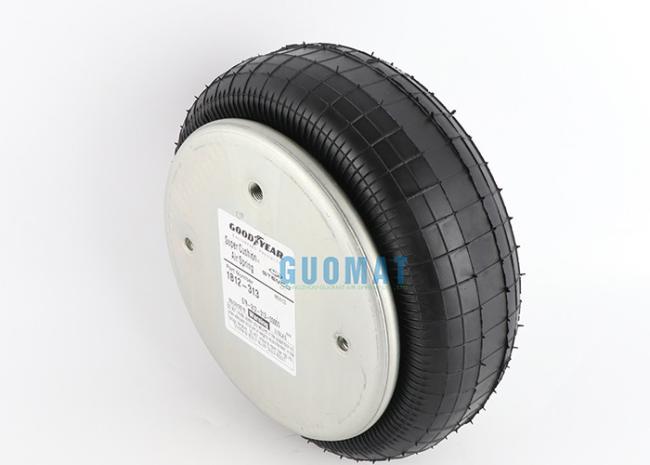

Description of 1B12-313 Goodyear Air Spring:
The Goodyear brand is one of the world's three major brands, as we all know.This air spring is most widely used in medium and large trucks.Some customers also use it on various shock absorption equipment or lifting equipment.The air spring 1B12-313 is imported from the American brand Goodyear.Its skin number is 578-91-3-301.This is a real imported thing produced in a factory in Mexico.The quality of the air spring is very good.Many customers use it.After use, it may take several years to replace.
OEM Original Manufacturer:
Goodyear Part number:1B12-313
Goodyear Part number:1B12 313
Goodyear Part number:1B12313
Top plate hole/stud: 3
Base plate hole/stud: 2
Top plate diameter: 9
Base plate diameter: 9
Folding height: 2.3
Goodyear Flexible member: 578-91-3-301
Goodyear Flexible member: 578 91 3 301
Goodyear Flexible member: 578913301
Piston:-
Piston type: —
Goodyear trim: 1B12313
Firestone: W01-358-7008
Firestone: W01 358 7008
Firestone: W013587008
Neway: 90557226
Goodyear 1B12-313 Cross OEM
Firestone:W01-358-7008 ;
Firestone:W01 358 7008;
Firestone:W013587008
Contitech:FS 330-11 CI 1/4 NPT
Contitech:FS330-11 CI 1/4 NPT
Goodyear :1B12-300,
Goodyear:1B12-313
Specification of Goodyear Air Bags 1B12-313
Top cover diameter: 9.00 inches / 231 mm
Bottom piston number: 3212 or 3183
Diameter of the bottom cover: 9.00 inches / 231 mm
Screw center distance: 157.5 mm
The air hole distance between the nuts is 73 mm

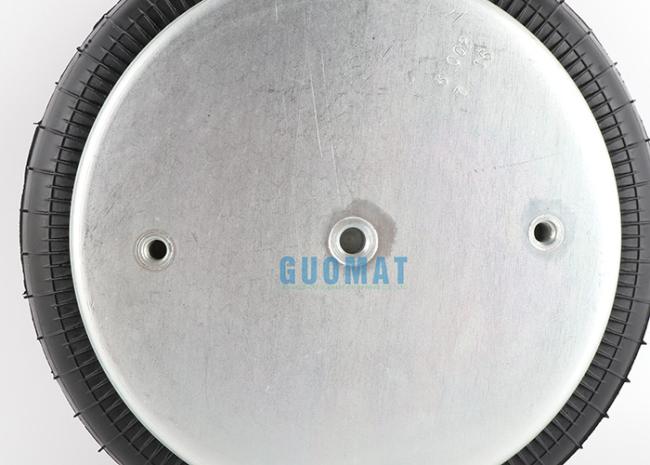

Top plate screw (nut) teeth: 2 x 3 / 8-16UNC
Screw (nut) teeth of the bottom cover plate: 2 x 3 / 8-16UNC
Compression height: 2.12
Maximum diameter (maximum diameter) of rubber bellows: 12.9 inches / 325 mm
Rubber bellows natural diameter 300 mm
Working stroke: maximum 160 mm to minimum 55 mm
Compressed height: 2.12 inches / 105 mm
Air hole/air inlet: 1/4 N P.T.F.
Firestone bellows number: 19
The usual below kinds of Goodyear air spring which can use 1B12-313 to replace:
| Assembly Number | Max OD @100 PSIG (Inches) | Design Load Range (pounds) | Design Height Range (Inches) | Usable Stroke (Inches) | Min Comp Height (Inches) | Max Ext Height (Inches) | Bumper Included | Approximate Isolation Percent | Air Fitting Size (Inches) | |||
| For a Distributing Frequency Of: | ||||||||||||
| 435 CPM | 870 CPM | 1160 CPM | 1750 CPM | |||||||||
| 1B12-301 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 1/4 OS |
| 1B12-304 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-305 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.6 | 2.6 | 7.2 | YES | 89 | 97 | 98 | 99 | 3/4 OS |
| 1B12-313 | 13.2 | 1,350 - 8,800 | 3.0 - 5.0 | 4.9 | 2.3 | 7.2 | NO | 89 | 97 | 98 | 99 | 1/4 OS |
