Description:

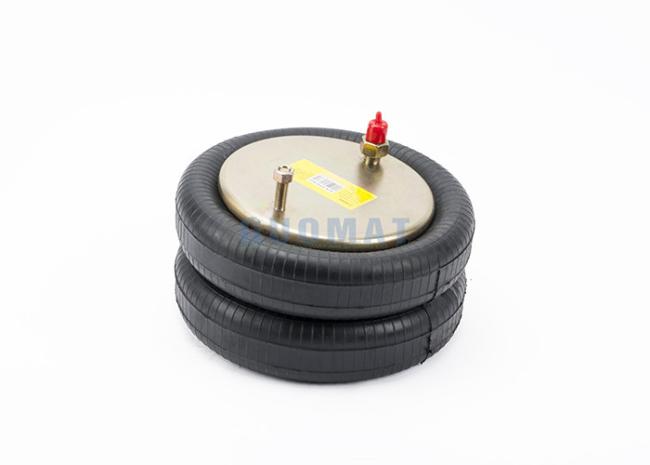

GUOMAT NO. 2B7545 this kind of double Convoluted Air Spring which is produced by GUOMAT. It can replace Firestone Complete Number W01-358-7545 ;Contitech Part NO. : FD 331-26 514 and other kinds. 2B7545 air spring not only use in truck and trailer,but also as Vibratory conveyors,such as Large drying machines,Centrifugal separators,Coordinate measuring tables and machinery and Commercial laundry machines.
Parameter of GUOMAT NO. 2B7545 Air Spring:
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 1 pcs X 1/2-13UNC
Top Cover Plate Combination Nut : 3/4-16UNF
Screw Center Distance of Top Cover Plate : 157 mm / 6.2 inches
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16UNC
Screw Center Distance of Bottom Cover Plate : 157 mm / 6.2 inches
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 1/4NPT , Combination Stud/Air Inlet Stud
❸ Cover Plate
Top Cover Plate Diameter (Width): 224.5 mm / 9.00 inches
Bottom Cover Plate Diameter (Width): 224.5 mm / 9.00 inches

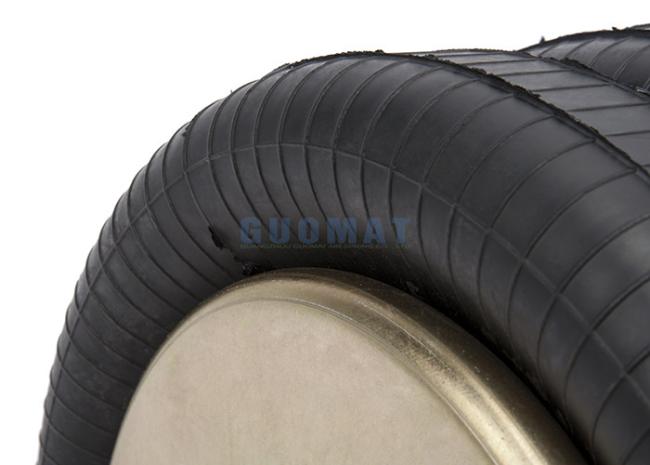

❹Rubber Bellows
Rubber Bellows MAX Diameter : 343 mm / 9.7 inches
Compressed Height: 104 mm / 4.1 inches
Maximum Height: 363mm / 14.3 inches
Working Stroke : 259 mm / 10.2 inches
❺ Bumper block / Buffer block
With Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
| Manufacturer Cross OEM Reference | Other Cross OEM Reference |
|
Firestone Part NO. : W01-358-7545 / Firestone Part NO.:W01 358 7545 / Firestone Part NO.:W013587545 |
Triangle Part Number:4514 |
|
Firestone Bellows Number:228-1.5 / Firestone Bellows Number:228C-1.5 |
Triangle Bellows Number:6375 |
| Firestone Top Plate Number:3271 | Hendrickson Auxiliary : 001796 |
| Firestone Piston Number:3183 | (Paralift Ultra/High Lift) - Lift bag |
| Contitech Part NO. : FD 331-26 514 |
Watson&Chalin : AS-0087-1F / Watson&Chalin :AS-0109 |
|
Contitech Bellows NO.: FD 331-26, 64284 |
|
|
Goodyear Part NO. : 2B12-345 / Goodyear Part NO. :2B12 345 / Goodyear Part NO. :2B12345 |
|
|
GoodYear Bellows NO.: 578-92-3-315 / GoodYear Bellows NO.:578 92 3 315 / GoodYear Bellows NO.:578923315 |
Hendrickson Turner Life Axle HLN (Non-Steer), HLP (Paralift), HLU, HLUN, HLUS (Ultra-Steer), HLUR-2 (Pararev)
Top Plate C to C Dia. (B): 6.20
Bottom Plate Dia. (C): 9.00
Bottom Plate C to C Dia. (D): 2.25
Bottom Plate Alignment: 90 Degree
Pictures show the information includes:
Technical data
Vibration isolation - dynamic characteristic values
Pneumatic application - static characteristic values
| GUOMAT NO. | Reference | Order NO. | Force (lbs) | Max OD (in) | Design height(in) | Height | Narural frequ.[cpm] | ||
| 80 psi | 100 psi | Min | MAX | ||||||
| FD 330 30 323 | FD 330-30 323 | 161314 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 340 | FD 330-30 340 | 161315 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 369 | FD 330-30 369 | 161316 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 370 | FD 330-30 370 | 161317 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 371 | FD 330-30 371 | 161318 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 372 | FD 330-30 372 | 161319 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 373 | FD 330-30 373 | 161320 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 464 | FD 330-30 464 | 161321 | 5900 | 7400 | 13.4 | 9 | 3.2 | 14.2 | 95 |
| FD 330 30 502 | FD 330-30 502 | 161322 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 512 | FD 330-30 512 | 161323 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 513 | FD 330-30 513 | 161324 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 330 30 549 | FD 330-30 549 | 161325 | 5900 | 7400 | 13.4 | 9 | 4.1 | 14.2 | 95 |
| FD 331 26 480 | FD 331-26 480 | 161030 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 514 | FD 331-26 514 | 161380 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 527 | FD 331-26 527 | 161381 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 541 | FD 331-26 541 | 161382 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
| FD 331 26 552 | FD 331-26 552 | 161383 | 5040 | 6300 | 13.5 | 10.5 | 4.1 | 14.3 | 90 |
