W01-358-7203 Firestone Industrial Air Spring Contitech FD 1710-25 RS Style 29

Price Negotiable

Price: Negotiable

MOQ: 1pc

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

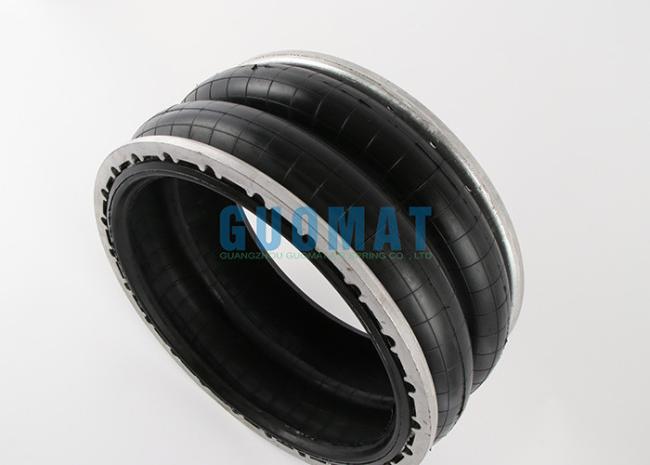

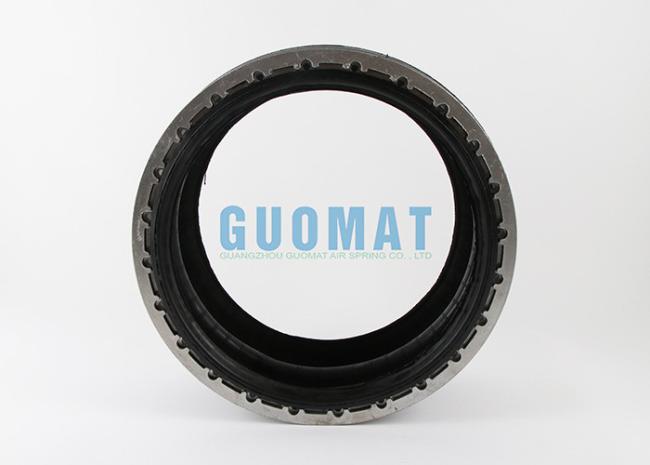

W01-358-7203 Firestone Industrial Air Spring Contitech FD 1710-25 RS Style 29

GUOMAT NO.2H520217 Air Spring Specifications

GUOMAT NO.2H520217

Contitech FD 1710-25 RS

Contitech FD1710-25 RS

Style 29
Two Ply Bellows
Ribbed neck aluminum bead rings (equal spacing),
17/8 bolts, nuts, washers
W01-358-7203

Ribbed neck aluminum bead rings (unequal spacing) 17/8 b,n,w
W01-358-7205

Ribbed neck aluminum bead rings (equal spacing) 11/4 b,n,w
W01-358-7201

Rolled plate assembly*,1/2 blind nuts 3/4 NPT
W01-358-7275

Force to collapse to minimum height (@ 0 PSIG) ..... 70 lbs.

Rubber bellows only
Firestone:Order No.: W01-358-7902,

Firestone:W01 358 7902;

Firestone:W013587902

Style 207	Ribbed neck aluminum bead rings (equal spacing), 17/8 bolts, nuts, washers	W01-358-7242
High Strength Bellows
	Ribbed neck aluminum beadrings (unequal spacing) 17/8 b,n,w	W01-358-7239
	Rubber bellows only	W01-139-0207

FD 1710-25 RS UNF, bellows type industrial air spring, double helix, effective area 1710cm square, maximum stroke 25cm, stud bolt installation, inch seal ring
Manufacturer: Mainland
Maximum inflation pressure
120 psi
series
RS
Bellows type
Double convolution
weight
26.5 pounds

GUOMAT NO.2H520217 Force Table (Use for Airstroke™ actuator design)
Assembly Height (mm)	Volume @ 7 BAR (cu cm)	EFF Area @ 7 BAR (cm sq)	@ 3 BAR	@ 4 BAR	@ 5 BAR	@ 6 BAR	@ 7 BAR
280	53863	1317	37.03	50.72	64.11	78.82	92.17
240	47704	1618	47.12	63.62	80.06	97.4	113.25
200	40443	1814	53.26	72.74	90.77	109.45	127
160	32306	1962	57.95	78.61	98.18	118.39	137.31
120	23824	2110	62.84	84.57	105.81	127.52	147.69
80	15280	2255	67.74	90.95	113.48	136.38	157.84

GUOMAT NO.2H520217 Dynamic Characteristics at 240 mm Design Height (Required for Airmount isolator design only)
Gauge Pressure (BAR)	Load (KN)	Spring Rate (kN/m)	Natural Frequency Hz
3	47.12	497	1.62
4	63.62	663	1.61
5	80.06	795	1.57
6	97.4	923	1.54
7	113.25	1050	1.52
