Pm/31062 Norgren Industrial Air Spring With Aluminum Plate
PM/31062 Norgren Industrial Air Spring With Aluminum Plate As Bulk Material Handling and Mineral Processing
Description of GUOMAT 2B6X2 replaces PM/31062 Norgren Air Spring:
It said that the actuation and isolation experts of Air Spring Supply Co., Ltd. have provided a silent rubber solution for such problems through supplementary products designed by GUOMAT Industries to overcome the unique damage and noise problems of vibration machinery.
According to Air Springs Supply, these include sturdy maintenance-free GUOMAT rubber and fabric-reinforced diagonal isolators, which provide high load capacity and provide constant vibration isolation by changing the load. The company stated that GUOMAT does not bottom out like a coil spring and provides low natural frequencies to provide excellent isolation (including a mandatory frequency of 800-1,200 cycles per minute at 13-20 Hz).
It is suitable for conveyors, vibrating screens, crushers, storage tanks and garbage bins. The spiral spring isolators or actuators are damaged, which may stop the process completely. Dispatch maintenance personnel to undertake the disassembly and return of important machinery serving such industries. Heavy and dangerous task. Used as bulk material handling and mineral processing.
This 2B6X2 kind of air spring is produced by GUOMAT,which can replace Norgren PM/31062.
GUOMAT 2B6X2 is the same size as Norgren PM/31062.
GUOMAT 2B6X2 is good quality and the best price.
GUOMAT 2B6X2 Specifications and Detail Technical Parameters
❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 4pcs X M8
Bottom Cover Plate Screw (Nut) Tooth : 4pcs X M8
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/2
❸ Cover Plate
Top Cover Plate Diameter (Width): 153.5 mm
Bottom Cover Plate Diameter (Width): 153.5 mm
Material top and bottom plate:Aluminium
❹Rubber Bellows
Diameter max at 7 bar:175MM
Stroke of Rubber Bellows:80mm-195m
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :One Pieces of Girdle Hoop
max load at 80 mm height and 8 bar:1415 daN
| 2B6X2 Material Code | Nitrile Butadiene Rubber (NBR) |
| 2B6X2 Maximum Ambient Temperature (°C) | 70 |
| Maximum Working Pressure (Bar) | 8 |
| Minimum Ambient Temperature (°C) | -40 |
| 2B6X2 Net Weight | 1.3 KG |
| Nominal Diameter | 6 MM |
| 2B6X2 Number of Convolutions | double |
| Port Size | G1/2 |
| Stroke Length | 115 MM |
| Cylinder Type | Standard |
| End Cap Material | Aluminum |

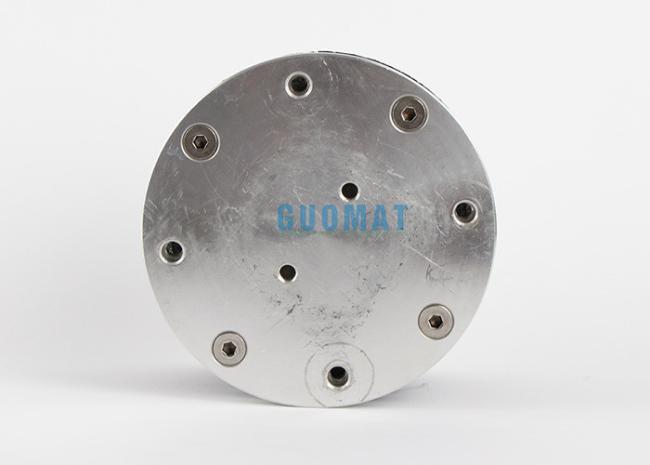

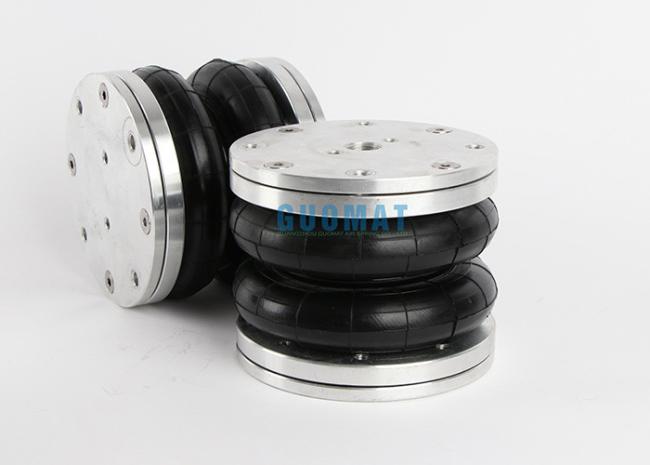

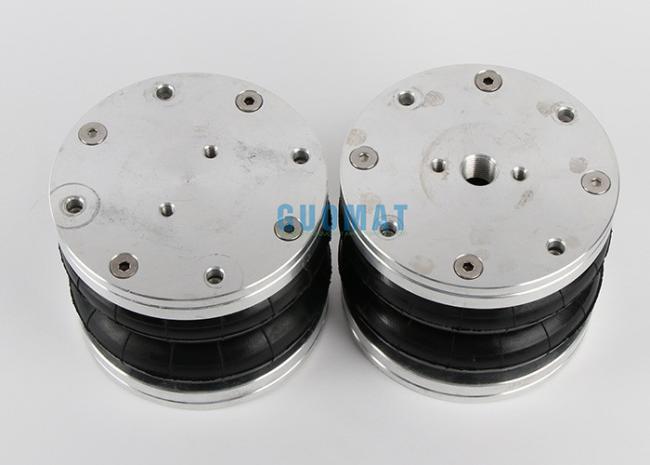

The real photos of GUOMAT 2B6X2:
GUOMAT Air Spring Refer to Norgren AIR SPRINGS model air bellows:
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | PM/31021 | 2 3/4x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | PM/31022 | 2 3/4x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | PM/31023 | 2 3/4x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | PM/31041 | 4 1/2x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | PM/31042 | 4 1/2x 2 | 280 | G3/8 |
| 1B 6x 1 | PM/31061 | 6x 1 | 155 | G1/2 |
| 2B 6x 2 | PM/31062 | 6x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8x 1 | 95 | G3/4 |
| 2B 8x 2 | PM/31082 | 8x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | PM/31091 | 9 1/4x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | PM/31092 | 9 1/4x 2 | 230 | G3/4 |
| 1B 12x 1 | PM/31121 | 12x 1 | 105 | G3/4 |
| 2B 12x 2 | PM/31122 | 12x 2 | 215 | G3/4 |
| 3B 12x 3 | PM/31123 | 12x 3 | 315 | G3/4 |
