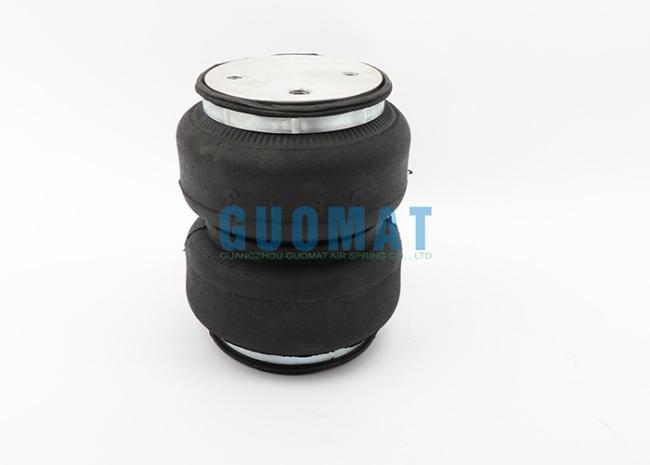

Aluminum Plate Suspension Air Spring 142187K-2 Double Convoluted For Changing Car
Suspension Air Spring 142187K-2 Double Convoluted With Aluminum Plate For Changing Car
Our GUOMAT products use the same material as the air springs used in the largest heavy-duty trucks on the road. They are extremely durable and are specially designed for your vehicle, so you can tow, tow, and enjoy your life in your own way.
Installing GUOMAT air-assisted springs on your light trucks, motorhomes, motorhomes, SUVs or vans will allow you to be comfortable, at ease and in complete control when towing.
Guomat 142187K-2 Air Spring Specifications:
❶ Nut / Blind Nut
The Long Of The Nut:15 mm
Top Cover Plate Screw number: 2 pcs
Bottom Cover Plate Screw number : 2 pcs
Top Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance of Top Cover Plate :70 mm
Bottom Cover Plate Screw (Nut) Tooth : M8
Screw Center Distance of Bottom Cover Plate : 70 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : G1/4
❸ Cover Plate
Top Cover Plate Diameter: 105mm
Bottom Cover Plate Diameter: 105mm
❹Rubber Bellows
Rubber Bellows Natural Diameter : 136 mm
Rubber Bellows MAX Diameter : 155mm
Rubber Bellows Natural Height :187mm
Stroke:80mm-192mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop: one piece of Girdle Hoop
Quick size of Guomat 142187K-2 :
| Model | Path |
0.7Mpa Max |
Capacity | ||
| 0.2Mpa | 0.5Mpa | 0.7Mpa | |||
| 142187K-2 | 108 | 155 | 80 | 225 | 322 |
|
0.7Mpa Frequency |
Trip | Weight | |||
| Minimum height | Safe height | ||||
| 2.99 | 80 | 192 | 1.7 | ||
| Bearing load Power (kg) |
Inflation pressure | 0.2MPa | 0.3MPa | 0.4MPa | 0.5MPa | 0.6MPa | 0.7MPa | 0.8MPa | 0.7MPa Volume(dm³) |
|---|---|---|---|---|---|---|---|---|---|
| Installation height | |||||||||
| 80(mm) | 199 | 267 | 371 | 467 | 560 | 674 | 768 | 0.62 | |
| 101(mm) | 198 | 304 | 481 | 524 | 639 | 756 | 850 | 0.96 | |
| 122(mm) | 188 | 284 | 380 | 489 | 583 | 682 | 789 | 1.18 | |
| 143(mm) | 151 | 237 | 316 | 398 | 475 | 560 | 641 | 1.33 | |
| 164(mm) | 127 | 206 | 273 | 345 | 412 | 484 | 557 | 1.42 | |
| 185(mm) | 80 | 125 | 174 | 225 | 274 | 322 | 392 | 1.5 | |
| 197(mm) | 22 | 49 | 78 | 107 | 139 | 172 | 212 | 1.58 | |
| Stiffness and frequency at design height | Vertical stiffness(Kg/cm) | 59 | 73 | 91 | 103 | 110 | 114 | 131 | |
| Stiffness and frequency at design height | Natural frequency Hz | 4.32 | 3.83 | 3.63 | 3.39 | 3.17 | 2.99 | 2.9 | |
| Stiffness and frequency at design height | Natural frequency cpm | 259 | 230 | 218 | 203 | 190 | 179 | 174 |
The Composition Of Industrial Convoluted Air Spring Element Has The Following Aspects
❶Nut / Blind Nut – As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate
❷ Gas Hole / Air inlet / Air Fitting – Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.
❸ Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.
❹Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides – 65F functional properties.
❺ Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.
❻ Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.
GUOMAT Air Springs can last at least twice lifetime, always as much as four times longer than steel springs!
- They almost do not need to maintain.
- Increase the service life of tires and brake pads.
- Let you pull anything; Eliminate expensive admission cost.
- Greatly reduce the breakage of the other vehicle components and maintenance.
- Back to you in the scrappage, truck and trailer with air suspension is more valuable.
- Allow the perfect load balancing between axles; Allow you to run in one of the largest legal restrictions.
- Reduce the discomfort and driver fatigue risk; Improve the efficiency of the driver's safety, and loyalty
- To provide smooth to load, reduce the cost of expensive insurance claims and packaging.
