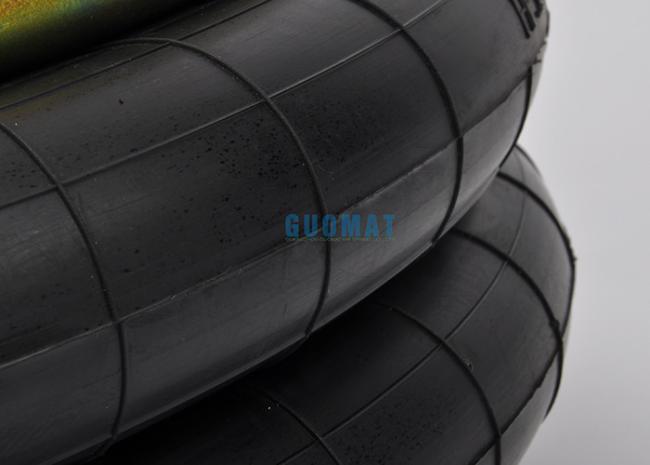

Firestone W01-R58-4023 Rubber Air Springs Bellows DUNLOP Air Actuator 16x2
Firestone W01-R58-4023 Rubber Air Springs Bellows DUNLOP Air Actuator 16x2
W01-R58-4023 Data:
GUOMAT NO.:1B16x2
Rubber bellows:16 X2
Rubber bellows:16X2
Firestone:W01-R58-4066
Firestone:W01 R58 4066
Firestone:W01R584066
Net weight:3.4 KG
DUNLOP:16X2 AIRSPRING
LOBES: 1
ø MAX: 430
MAX ANGLE: 15º
MAX AXIAL OFFSET: 10 mm
øC: 283
ø SPACE ENVELOPES: 445 MM
LOAD IN daN: 9
MAX WORK PRESSURE: 8 BAR
BURST PRESSURE: 25 BAR
WEIGHT:7.6 KG
DIMENSIONS: 16" X 16" X 4"
Operation mode: Single actionStroke:
Port size: G1 / 2
Nominal diameter: 16"
Convolution number: 2
❶Nut/ Blind Nut
Top cover screw (nut) teeth: -
Top cover screw center distance: -
Bottom cover screw (nut) teeth: -
Bottom cover screw center distance: -
❷ air hole / air inlet / air connector
Air vent / air inlet: -
❸ cover
Top open diameter (width): 184MM
Bottom open diameter (width): 184MM
❹Rubber bellows
Rubber bellows natural diameter: 430 mm
Minimum height (compression height): 77 MM
❺ bumper block / buffer block
No Bumper Block
Twisted waist/waist ring
Belt hoop: a band loop
| GUOMAT NO. | Model | Nominal Ø (inch) x convolutions | Maximum stroke (mm) | Air Port size |
| 1B 2 3/4x 1 | M/31021 | 2 3/4“ x 1 | 20 | G1/4 |
| 2B 2 3/4x 2 | M/31022 | 2 3/4“ x 2 | 45 | G1/4 |
| 3B 2 3/4x 3 | M/31023 | 2 3/4“ x 3 | 65 | G1/4 |
| 1B 4 1/2x 1 | M/31041 | 4 1/2“ x 1 | 140 | G3/8 |
| 2B 4 1/2x 2 | M/31042 | 4 1/2“ x 2 | 280 | G3/8 |
| 1B 6x 1 | M/31061 | 6" x 1 | 155 | G1/2 |
| 2B 6x 2 | M/31062 | 6" x 2 | 155 | G1/2 |
| 1B 8x 1 | PM/31081 | 8" x 1 | 95 | G3/4 |
| 2B 8x 2 | M/31082 | 8" x 2 | 185 | G3/4 |
| 1B 9 1/4x 1 | M/31091 | 9 1/4” x 1 | 105 | G3/4 |
| 2B 9 1/4x 1 | M/31092 | 9 1/4“ x 1 | 230 | G3/4 |
| 1B 12x 1 | M/31121 | 12" x 1 | 105 | G3/4 |
| 2B 12x 2 | M/31122 | 12" x 2 | 215 | G3/4 |
| 3B 12x 3 | M/31123 | 12" x 3 | 315 | G3/4 |
