OEM Original Contitech Air Spring FS 120-10 CI G 1/4 1B8-850 Bellows 579913530 Air Isolators
ContiTech Air Spring FS 120-10 CI G 1/4 Equivalence Goodyear 1B8-850 Bellows 579913530 Air Isolators
OEM Original Equipment Manufacturer:Goodyear 1B8-850
ASSEMBLY NUMBER
Goodyear Air Spring 1B8- 850 Made in Mexico 579-913-530 Made in Mexico
Goodyear original single vibration industrial air spring 1B8-850 air suspension system
Goodyear ASSEMBLY NUMBER.:1B8-550
Goodyear ASSEMBLY NUMBER:1B8-552
Goodyear ASSEMBLY NUMBER.:1B8-553
Goodyear ASSEMBLY NUMBER:1B8- 554
Goodyear ASSEMBLY NUMBER.:1B8 550
Goodyear ASSEMBLY NUMBER:1B8 552
Goodyear ASSEMBLY NUMBER.:1B8 553
Goodyear ASSEMBLY NUMBER:1B8 554
Cross Firestone OEM
Wo1-M58-6166 Firestone Metric Single Convolution Air Spring
Wo1-M58-6166, Wo1M586166, WO1-M58-6166, WO1M586166
Firestone actuator WO1-M58-6166, Metric 8 X 1.25 Dark Nut, 1/4 BSP
German brand airbag
ContiTech FS 120-10 CI G 1/4
ContiTech FS120-10 CI G 1/4
German ContiTech air spring

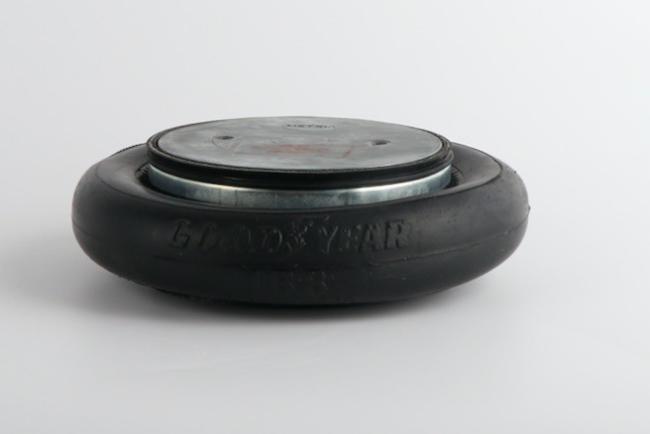

1B8-850 Goodyear Air Spring Single Airbag 579913530
Anliding air spring YI-1B8-850 YM-1B8-850 579 913 530
SUPER-CUSHION @ AIR SPRING ISOLATORS 1B8-850
ContiTech FS 120-10 CI G 1/4
ContiTech FS120-10 CI G 1/4
Goodyear 1B8-850 Product Description
Technical Data
- SPRING FEATURES:
- . LOAD RANGE ( ISOL ATOR)............. .320-2900 Ib
- . DESIGN HE I GHT RANGE
- ( ISOL .ATOR)....3.75-4.75 in
- . USEABLE STROKE w/o BUMPER ( ACTUATOR).. . .3.3 in
- . USEABLE STROKE WITH BUMPER ( ACTUATOR). . .3.0 in
- . ASSEMBLY WEIGHT w/o BUMPER. .............4.7 Ib
- . TEMPERATURE RANGE .
- . FORCE TO COMPRESS AT 0 PSIG ( APPROX.)....25 1b
- NOMINAL FREE STANDING HT. AT 0 PSIG.....2.3 in
ContiTech Air Spring FS 120-10 CI PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | Vol. V [in.³] |
| H 4.50 in./114.3MM | 728 | 1130 | 1570 | 1970 | 110 |
| H 4.00 in./101.6MM | 905 | 1400 | 1940 | 2390 | 100 |
| H 3.50 in./88.9MM | 1050 | 1610 | 2240 | 2740 | 90 |
| H 3.00 in./76.2MM | 1170 | 1770 | 2450 | 3020 | 75 |
| H 2.50 in./63.5MM | 1270 | 1900 | 2630 | 3260 | 57 |
ContiTech Air Spring FS 120-10 CI VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 801 | 1,240 | 1,700 | 2,130 | 2,530 | 110 | |
| Spring rate c [lbf/in] | 709 | 949 | 1,190 | 1,430 | 1,670 | 110 | |
| Natural Frequency f0 [Hz] | 2.9 | 2.8 | 2.7 | 2.6 | 2.6 | 110 | |
| Design height H: recommended 4.33 inch, minimum 3.54 inch | |||||||
ContiTech Air Spring FS 120-10 CI PURCHASE ORDER DATA
| Type | Air Inlet | Order No. | |
| with crimped plates |
3/4 NPT 0 in. excentrical |
75349 | |
| with crimped plates |
1/4 NPT 0 in. excentrical |
75360 | |
ContiTech Air Spring FS 120-10 CI SERVICE INSTRUCTIONS
| Thread | max. Torque | |
| 3/8-16 UNC | 20 lbf ft | |
| 1/4 NPT | 20 lbf ft | |
| 3/4 NPT | 40 lbf ft | |
