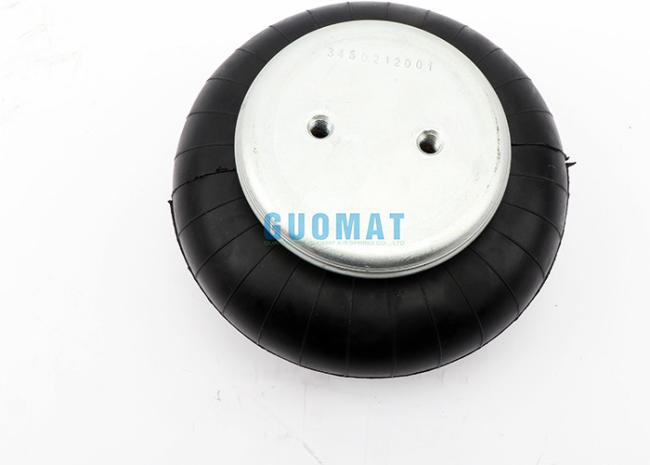

W01-358-7484 Firestone Industrial Air Spring Convoluted Air Bags Style 110
W01-358-7484 Firestone Industrial Air Spring Convoluted Air Bags Style 110
Specifications and Technical Data
GUOMAT Part Number:1B7484
Firestone Part Number:W01-358-7484,
Firestone Part NumberW013587484,
Firestone Part NumberWO1-358-7484,
Firestone Part NumberWO13587484
Operating Temperature: 57Cº to -54Cº
Compressed Height: 90mm
Top Cover Plate Diameter: 115mm
Bottom Cover Plate Diameter: 115mm
Distance Gas Hole Between Nut 22.25 mm
Top Cover Plate Screw (Nut) Tooth :2pcX3/8-16UNC
Bottom Cover Plate Screw (Nut) Tooth : 2pcX3/8-16UNC
The Working Stroke : MAX 140 mm to MIN 50 mm
Gas Hole / Air inlet : 1/4NPTF
W013587484
Pneumatic actuators
Standard English
110B 4X3/8BN
3/4 Non-Proliferation Treaty
| aximum Diameter @ 100 PSIG (mm) | 210.82 | Short Description | W01-358-7484, W013587484, WO1-358-7484, WO13587484 |
| Maximum Height (mm) | 140 | Manufacturer Part Number | W013587484 |
| Maximum Stroke (mm) | 76.2 | Manufacturer | Firestone Industrial |
| Minimum Usable Height (mm) | 50 | Style Number | 110 |
| 1 Inch (pounds) | 2090 | Style Shape | Single Convolution |
| 3 Inch (pounds) | 1030 | Natural Frequency (@80 psig) (cpm) | 162 |
| Bead plate Type | 1 | 400 CPM % | 80.2 |
| Blind Nut Centers (mm) | 44.45 | 800 CPM % | 95.7 |
| Design Height | 4.5 | 1500 CPM % | 98.8 |
| 40 psig (pounds) | 650 | Maximum Stroke (pounds) | 940 |
| 60 psig (pounds) | 1010 | Material | 2-Ply Standard Cord |
| 80 psig (pounds) | 1390 |
