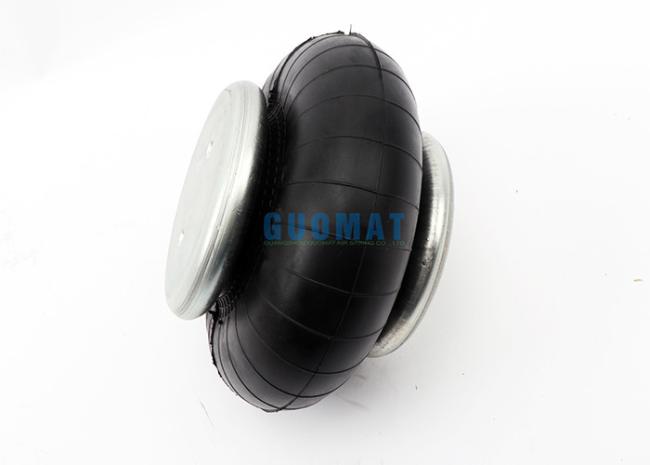

W01-358-7001 Firestone W01-358-6996 Industrial Single Air Spring Style 16
W01-358-7001 Firestone W01-358-6996 Single Air Spring Industrial Style 16 GUOMAT 1B7001
| W01-358-7001 Technical Parameters | |
| Top Cover Plate Diameter | 114 mm |
| Bottom Cover Plate Diameter | 114 mm |
| Screw Center Distance | 44.5 mm |
| Distance Gas Hole Between Nut | 22.25 |
| Gas Hole | G1/4 |
| Screw (Nut) Tooth | 2pcsXM10X1.5 |
| Rubber Bellows MAX Diameter | 145mm |
| The Stroke | 50-100mm |
Maximum diameter @ 100 PSIG (inch)
6
Maximum height (inch)
3.3
Maximum stroke (inch)
1.4
Minimum usable height (inches)
1.9
Force at 1 inch (lb) stroke @ 80PSI
930
Force at maximum stroke @ 80PSI (pounds)
580
Material
2-layer standard line
OEM Original Equipment Manufacturer:
| GUOMAT | 1B7001 |
| contitech | FS 50-5 |
| Firestone |
W01-358-7001,W013587001,WO1-358-7001,WO13587001 |
| Technical data | |
| Min. pressure | 0 bar |
| Return force to min. height | ≤ 250 N |
| Overall weight with clamped plates | 1.2 kg |
| Vibration isolation - dynamic characteristic values | |||||||
| Design height H: recommended 90mm, minimum 70mm | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Force (Load) [KN] | 1.7 | 2.3 | 2.8 | 3.4 | 3.8 | 4.4 | 0.5 |
| Spring rate [N/cm] | 760 | 990 | 1220 | 1480 | 1610 | 1820 | |
| Natural frequency [Hz] | 3.5 | 3.3 | 3.3 | 3.3 | 3.2 | 3.2 | |
| Pneumatic application - static characteristic values | |||||||
| Force F [kN] | |||||||
| Pressure p [bar] | 3 | 4 | 5 | 6 | 7 | 8 | Vol. V[l] |
| Height H [mm] 60 | 2.6 | 3.5 | 4.3 | 5.2 | 6.1 | 6.9 | 0.3 |
| 70 | 2.3 | 3.2 | 3.9 | 4.7 | 5.4 | 6.2 | 0.4 |
| 80 | 2.1 | 2.8 | 3.5 | 4.2 | 4.9 | 5.3 | 0.5 |
| 90 | 1.7 | 2.2 | 2.8 | 3.4 | 3.9 | 4.4 | 0.5 |
| 100 | 1.2 | 1.6 | 2 | 2.5 | 3 | 3.4 | 0.6 |
This W01-358-7001 Industrial Air Spring can be used for:
Such as:
Blower and Motor,
Control Panel,
Conveyor End Stop,
Mountain/Trail Bike,
Delicate Electronic Equipment
and Vibrating Screen.
Blind nuts, 1/4 NPT
W01-358-7001;
Firestone Part Number:W01-358-7001
Firestone Part Number:WO13587001
Firestone Part Number:WO1-358-7001
Firestone Part Number:W013587001
Firestone Part Number:W01 358 7001
Blind nuts, 3/4 NPT
W01-358-6996;
Firestone Part Number:W01-358-6996
Firestone Part Number:WO13586996
Firestone Part Number:WO1-358-6996
Firestone Part Number:W013586996
Firestone Part Number:W01 358 6996
Socket head aluminum bead rings (bolts, nuts, washers not included-use 1/4 cap screws)
W01-358-0017;
Firestone Part Number:W01-358-0017
Firestone Part Number:WO13580017
Firestone Part Number:WO1-358-0017
Firestone Part Number:W013580017
Firestone Part Number:W01 358 0017
3/4 NPT (only) upper plate, blind nuts lower plate
W01-358-0286;
Firestone Part Number:W01-358-0286
Firestone Part Number:WO13580286
Firestone Part Number:WO1-358-0286
Firestone Part Number:W013580286
Firestone Part Number:W01 358 0286
Rubber bellows only
W01-358-0010;
Firestone Part Number:W01-358-0010
Firestone Part Number:WO13580010
Firestone Part Number:WO1-358-0010
Firestone Part Number:W013580010
Firestone Part Number:W01 358 0010
