1T9206 Suspension Air Spring Automotive Rubber Bellows For Truck
Suspension Air Spring 1T9206 GUOMAT Automotive Rubber Bellows For Truck
1T9206 GUOMAT Truck Air Springs Cross References:
| Cross References | Vehicles OEM References |
| Guomat NO. 1T9206 |
1T9206 Technical parameters
❶ Screw Bolt / Stud
Top Cover Plate screw bolt / Stud Tooth :2 pcs M12X1.75
Screw Center Distance of Top Cover Plate : 210 mm
Distance Between Stud and Central Axis : 25 mm
❷ Gas Hole / Air inlet /Air Fitting
Gas Hole / Air inlet : M22x1.5.
Distance Between Gas Hole and Stud :70 mm
Distance Between Gas Hole and Central Axis : 95 mm

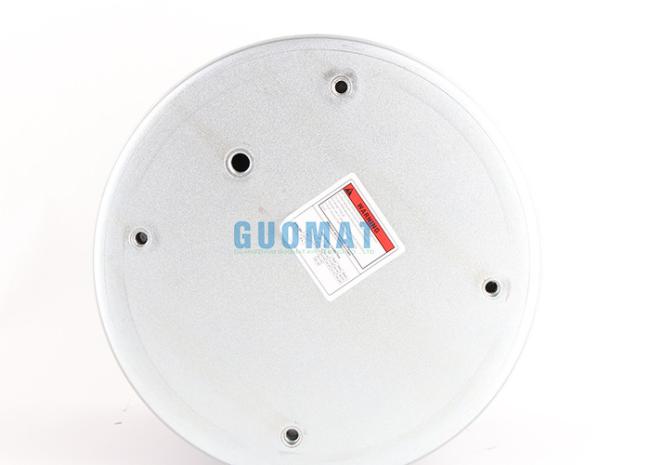

❸ Cover Plate
Top Cover Plate Diameter: Ø286 mm
❹Rubber Bellows
Rubber Bellows Natural Diameter: 320 mm
Rubber Bellows MAX Height : 680 mm
Rubber Bellows MIN Height : 226 mm
Working stroke : 454mm
❺ Bumper block / Buffer block
Bumper Block height :58 mm
❻ Bottom Piston
Bottom Piston Diameter : Ø260mm
Bottom Piston Height :178 mm
❼ Piston Bolt
Piston Bolt Tooth : M12 X1.75
4 pieces of Bolt
Middle faster between center Bolt : 200 mm

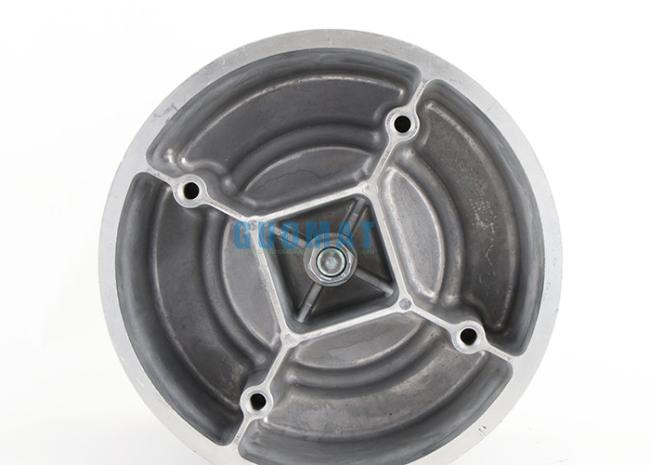

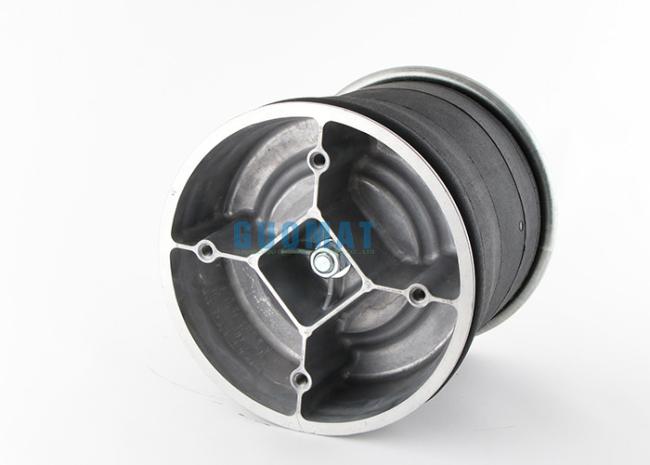

The piston picture OF 1T9206:
the routine model table of Assembly
| Contitech | Firestone | Goodyear | Phoenix | Dunlop FR | CF Gomma | Taurus |
| 4757 NP 09 | 9520 | D 13T 02 | 1VSC 300-26 | |||
| 881 MB | W01-M58-8966 | 1R 14-703 | 1DK 32-1 | D 14B 36 | KR 836-05 | |
| 940 MB | W01-M58-8602 | 1R11-700 | 1DK 21 | D 11U 30 | KR 730-01 | |
| 881 MB | W01-M58-8966 | 1R14-781 | D 14B 36 | KR 836-05 | ||
| 4390 NP 01 | 9505 | 1KF 21-1NP | D 12T 10 | |||
| 4390 N2 | W01-M58-8619 | 1KF 21-2 | ||||
| 4390 NP 02 | 9506 | 1KF 21-2NP | D 12T 11 | |||
| 4713 NP 02 | W01-M58-9760 | 1R12-763 | 1DF 22C-1 | D 12B 24 | 1TS 300-28 | |
| 6608 NP 01 | W01-M58-8474 | 1R10-704 | 1DF 17B-1 | |||
| 4159 NP 03 | W01-M58-7548 | 1R12-701 | 1DK 21B-4 | D 12B 01 | 1T 323-40 | KR 509-22 |
| 912 NP 01 | W01-M58-8502 | 1R14-728 | 1D 28D-10 | |||
| 6605 NP 01 | W01-M58-8472 | 1R11-805 | 1DF20D-1 | D11B42 | ||
| 6606 NP 01 | W01-M58-8477 | 1D 20E-1 | ||||
| 910 16P 449 | W01-358-8829 | 1R12-405 | ||||
| 975 N | W01-095-0437 | 1E 10 | 1T 19E-2 | |||
| 910 10P 311 | W01-358-9039 | 1R12-095 | AS 500-9039 |
| 4023 NP 03 | W01-M58-6348 | 1R14-729 | 1D 28A-10 | D 13B 26 | 1T 19E-2 | KR 624-18 |
