GUOMAT 3B20F-2P03 Industrial Air Spring With Rubber Bellows Diameter 223mm Natural H.340 MM

Price Negotiable
Price: Negotiable
MOQ: 1pc
Delivery Time: 2-8 work days
Brand: GUOMAT
Product Description

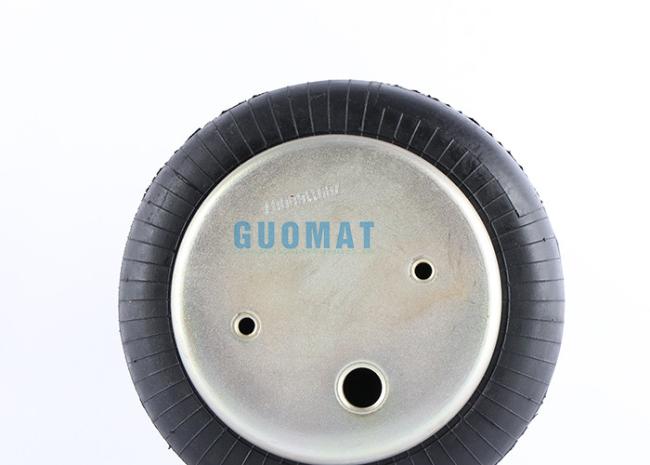

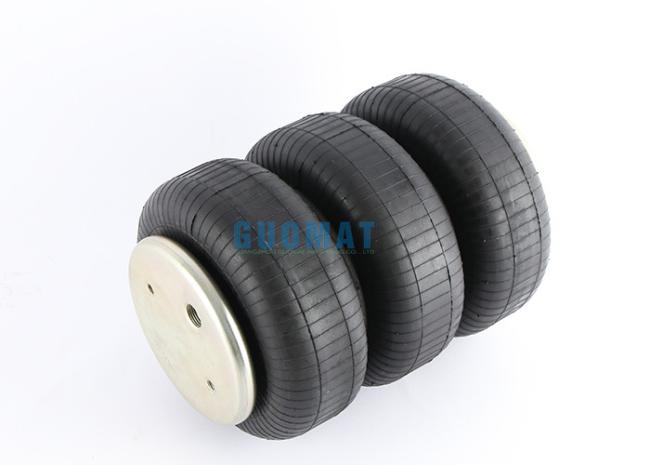

Industrial Air Spring GUOMAT 3B20F-2P03 With Rubber Bellows Diameter 223 mm Natural H.340 MM





Specifications and Technical Data of 3B20F-2P03



Just the Gas Hole / Air inlet : 1/2 NPT

Top Cover Plate Diameter: 6.31 inches / 160mm

Bottom Piston Number: 3090

Bottom Cover Plate Diameter: 6.31 inches / 160mm

Screw Center Distance : 89 mm

Distance Gas Hole Between Nut 44.5 mm

Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC

Rubber Bellows MAX Diameter: 251 mm

Rubber Bellows Natural Diameter 223 mm

The Working Stroke : MAX 400 mm to MIN 200 mm




OEM Original Equipment Manufacturer:



BELLOW Numbers COMPLETE Numbers

GUOMAT 20F-2P03 GUOMAT 3B20F-2P03
