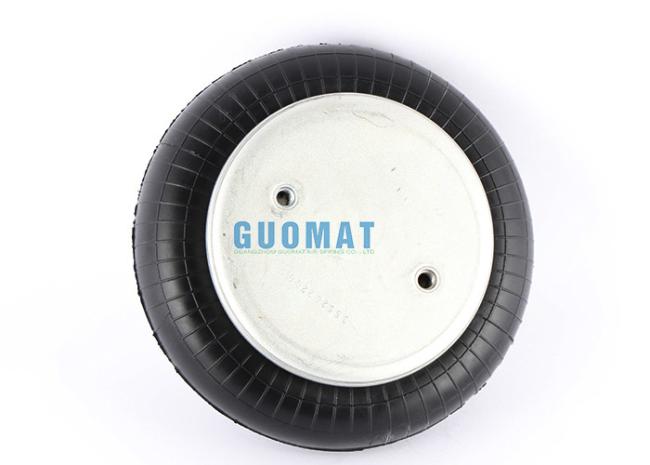

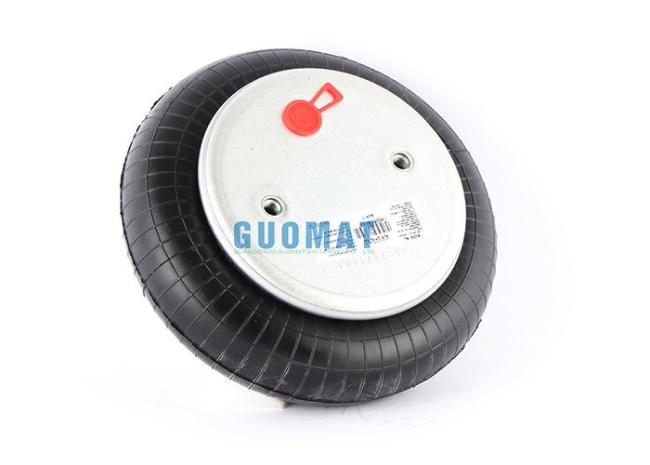

W01-358-7459 Industrial Air Spring With Rubber Bumper For Blower Motor

Price Negotiable

Price: Negotiable

MOQ: Negotiable

Delivery Time: 2-8 work days

Brand: GUOMAT

Product Description

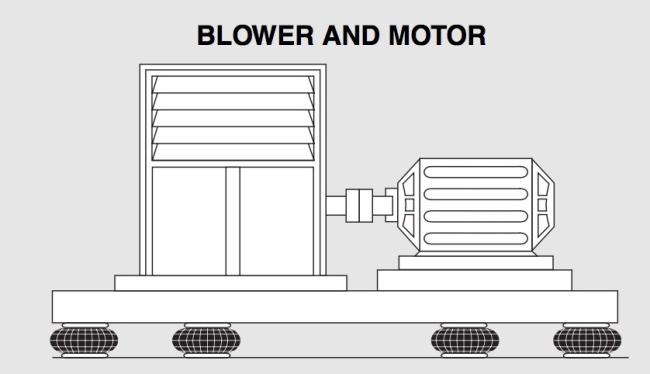

W01-358-7459 Firestone Industrial Air Spring With Rubber Bumper For BLOWER AND MOTOR

GUOMAT NO. 1B7459 Cross other OEM

GUOMAT Part Number:1B7459

Style 115 Two Ply Bellows

Blind nuts, 1/4 NPT rubber bumper
W01-358-7459;

Firestone Part Number:W01-358-7459

Firestone Part Number:WO13587459

Firestone Part Number:WO1-358-7459

Firestone Part Number:W013587459

Firestone Part Number:W01 358 7459

ContitechPart Number:FS 200-10 CI 1/4 NPT OS B

Contitech Part Number: FS200-10CI1/4NPTOSB

ContitechPart Number:FS 200-10 CI 1/4 NPT

Contitech Part Number: FS200-10CI1/4NPT

ContitechPart Number:FS 200-10

Contitech Part Number: FS200-10

W01-358-7459,W013587459,WO1-358-7459,WO13587459

GUOMAT NO. 1B7459 Product Description

Technical Data

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 1/4 or 3/4 NPT AIR INLET

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

Min. pressure – 0 psi
Return force to min. height – <45LBF/200N
Overall Weight – 4.4LB
Min. Design Height – 2.01inch / 51MM
Inst.Space Required – 9.65inch / 245 MM
Max. Stroke – 3.9inch / 99MM

GUOMAT NO. 1B7459 VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS

Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
Force (load) F [lbf]	981	1,530	2,040	2,570	3,090	124
Spring rate c [lbf/in]	701	1,000	1,290	1,560	1,870	124
Natural Frequency f0 [Hz]	2.7	2.7	2.6	2.5	2.5	124
Design height H: recommended 4.53 inch, minimum 3.94 inch

GUOMAT NO. 1B7459 PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES

Force F [lbf]
Pressure p [psi]	40	60	80	100	120	Vol. V [in.³]
H 4.50 in.	939	1440	1920	2430	2950	120
H 4.00 in.	1120	1690	2260	2850	3430	110
H 3.50 in.	1250	1880	2530	3170	3850	96
H 3.00 in.	1370	2050	2760	3460	4170	83
H 2.50 in.	1450	2170	2930	3640	4410	68
