Firestone W01-358-7458 Industrial Air Spring Max Height 6 Inch For Bag Flattener

Industrial Air Spring Firestone W01-358-7458 Max Height 6 Inch For BAG FLATTENER

OEM Original Equipment Manufacturer:

GUOMAT Part Number:1B7458

Firestone Part Number:W013587458

Firestone Part Number:W01-358-7458,

Firestone Part Number:WO13587458,

Firestone Part Number:WO1-358-7458

Contitech Part Number:FS200-10 CI 3/4NPTOS

Contitech Part Number:FS200-10 3/4NPT

Contitech Part Number:FS 200-10

Blind nuts, 3/4 NPT rubber bumper
W01-358-7458;

Firestone Part Number:W01-358-7458

Firestone Part Number:WO13587458

Firestone Part Number:WO1-358-7458

Firestone Part Number:W013587458

Firestone Part Number:W01 358 7458

GUOMAT 1B7458 Product Description

Technical Data

GUOMAT Part Number:1B7458, bellows type industrial air spring, single-turn, 200 cm2 effective area, 10 cm maximum stroke, crimped bead plate, internal thread mounting thread, 3/4 NPT, offset
Manufacturer: China GUOMAT Mainland

Air inlet
3/4"
series
C
lowest temperature
-76°F
Maximum temperature
158 degrees F
Bellows type
Single twist
weight
5.07 pounds.

Compressed height
2.01"
Maximum deployment height
5.51"
The maximum diameter
9.84"
Maximum inflation pressure
120 psi
Maximum stroke
3.5"
Inlet type
empire


GUOMAT 1B7458 Size in mm

❶Nut / Blind Nut

Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Top Cover Plate : 89 mm

Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)

Screw Center Distance of Bottom Cover Plate : 89 mm

❷ Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : 3/4 NPT AIR INLET

Screw Center Distance Between Gas Hole and Nut : 44.5 mm

❸ Cover Plate

Top Cover Plate Diameter: 160 mm

Bottom Cover Plate Diameter: 160 mm

❹ Rubber Bellows

Rubber Bellows MAX Diameter: 257 mm

Rubber Bellows Natural Diameter : 220 mm

The Working Stroke : MIN 50 mm to MAX 140 mm

Maximum Height : 140 mm

Minimum Height :50mm

Stroke Height : 90mm

❺ Bumper block / Buffer block

Without Bumper Block

❻ Girdle Hoop / Girdle Ring

With Girdle Hoop :no One Pieces of Girdle Hoop

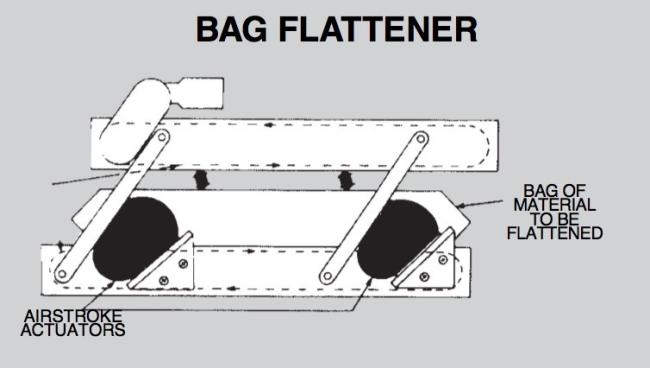

GUOMAT 1B7458 air spring for BAG FLATTENER:
