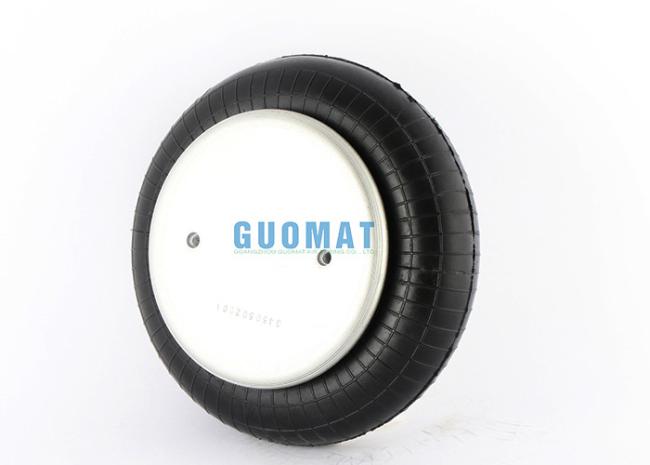

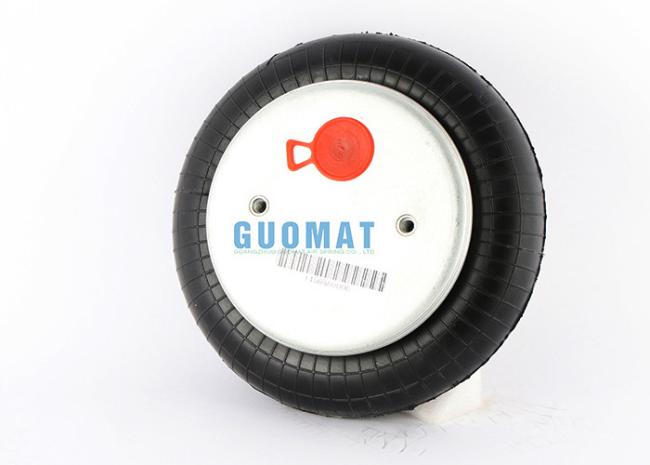

Air Inlet 3/4 NPT Firestone Air Spring W01-358-7649 Rubber Bellows Style 124 For compressor
Air Inlet 3/4 NPT Firestone W01-358-7649 Rubber Bellows Style 124 For COMPRESSOR
OEM Original Equipment Manufacturer:
GUOMAT Part Number:1B7649
Blind nuts, 3/4 NPT
W01-358-7649
Firestone Part Number:W01-358-7649
Firestone Part Number:WO13587649
Firestone Part Number:WO1-358-7649
Firestone Part Number:W013587649
Firestone Part Number:W01 358 7649
Contitech Part Number:FS200-10 CI 3/4NPTOS
Contitech Part Number:FS200-10 3/4NPT
Contitech Part Number:FS 200-10
Product Description
Technical Data
GUOMAT Part Number:1B7649, Maximum diameter @ 100 PSIG (inch)
10.1
Maximum height (inch)
5.1
Maximum stroke (inch)
2.9
Minimum usable height (inches)
2.2
Force at 1 inch (lb) stroke @ 80PSI
3510
Force at a stroke of 3 inches (lbs) @ 80PSI
2080
Force at maximum stroke @ 80PSI (pounds)
1820
Material
2-layer high-strength flexible cord
End cap details
Bead plate type
3
Blind nut center (inch)
3.5
Port offset of blind hole nut centerline (inches)
1.5
Air isolator
Design height
4.5
Load (at design height): 40 psig (lbs)
1210
Load (at design height): 60 psig (lbs)
1880
Load (at design height): 80 psig (lbs)
2540
Natural frequency (@80 psig) (cpm)
151
Isolation percentage at mandatory frequency 400 CPM
83.4
Isolation percentage at mandatory frequency 800 CPM
96.3
Isolation percentage at mandatory frequency 1500 CPM
99

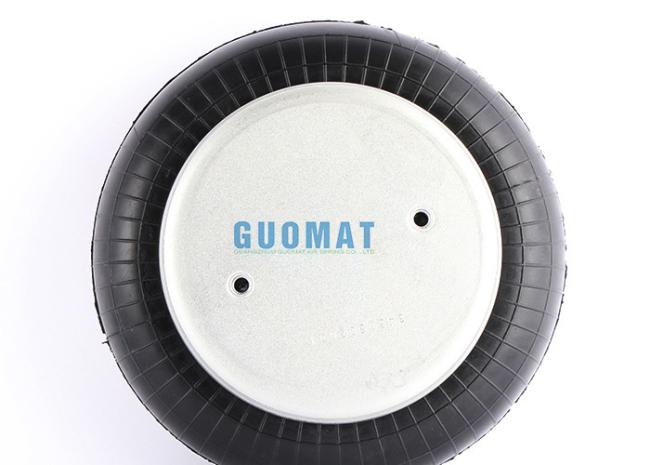

❶Nut / Blind Nut
Top Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Top Cover Plate : 89 mm
Bottom Cover Plate Screw (Nut) Tooth : 2 pcs X 3/8-16 BLIND NUTS (5/8 DEEP)
Screw Center Distance of Bottom Cover Plate : 89 mm
❷ Gas Hole / Air inlet / Air Fitting
Gas Hole / Air inlet : 3/4 NPT AIR INLET
Screw Center Distance Between Gas Hole and Nut : 44.5 mm
❸ Cover Plate
Top Cover Plate Diameter: 160 mm
Bottom Cover Plate Diameter: 160 mm
❹ Rubber Bellows
Rubber Bellows MAX Diameter: 257 mm
Rubber Bellows Natural Diameter : 220 mm
The Working Stroke : MIN 50 mm to MAX 140 mm
Maximum Height : 140 mm
Minimum Height :50mm
Stroke Height : 90mm
❺ Bumper block / Buffer block
Without Bumper Block
❻ Girdle Hoop / Girdle Ring
With Girdle Hoop :no One Pieces of Girdle Hoop
- Min. pressure – 0 psi
- Return force to min. height – <45LBF/200N
- Overall Weight – 4.4LB
- Min. Design Height – 2.01inch / 51MM
- Inst.Space Required – 9.65inch / 245 MM
- Max. Stroke – 3.9inch / 99MM
VIBRATION ISOLATION – DYNAMIC CHARACTERISTICS
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| Force (load) F [lbf] | 981 | 1,530 | 2,040 | 2,570 | 3,090 | 124 | |
| Spring rate c [lbf/in] | 701 | 1,000 | 1,290 | 1,560 | 1,870 | 124 | |
| Natural Frequency f0 [Hz] | 2.7 | 2.7 | 2.6 | 2.5 | 2.5 | 124 | |
| Design height H: recommended 4.53 inch, minimum 3.94 inch | |||||||
PNEUMATIC APPLICATION – STATIC CHARACTERISTIC VALUES
| Force F [lbf] | |||||||
| Pressure p [psi] | 40 | 60 | 80 | 100 | 120 | Vol. V [in.³] | |
| H 4.50 in. | 939 | 1440 | 1920 | 2430 | 2950 | 120 | |
| H 4.00 in. | 1120 | 1690 | 2260 | 2850 | 3430 | 110 | |
| H 3.50 in. | 1250 | 1880 | 2530 | 3170 | 3850 | 96 | |
| H 3.00 in. | 1370 | 2050 | 2760 | 3460 | 4170 | 83 | |
| H 2.50 in. | 1450 | 2170 | 2930 | 3640 | 4410 | 68 | |
Style:124 High Strength Con-struction
Blind nuts, 1/4 NPT
W01-358-7650;
Firestone Part Number:W01-358-7650
Firestone Part Number:WO13587650
Firestone Part Number:WO1-358-7650
Firestone Part Number:W013587650
Firestone Part Number:W01 358 7650
Blind nuts, 3/4 NPT
W01-358-7649
Firestone Part Number:W01-358-7649
Firestone Part Number:WO13587649
Firestone Part Number:WO1-358-7649
Firestone Part Number:W013587649
Firestone Part Number:W01 358 7649

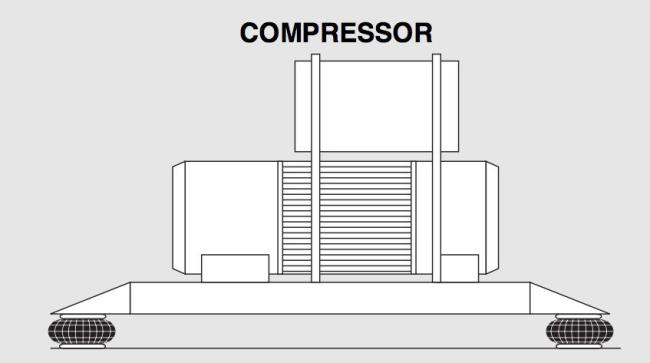

GUOMAT air spring Part Number:1B7649 for COMPRESSOR:
