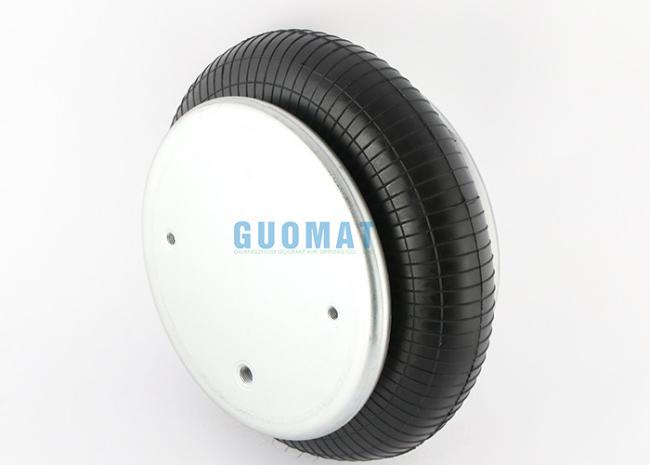

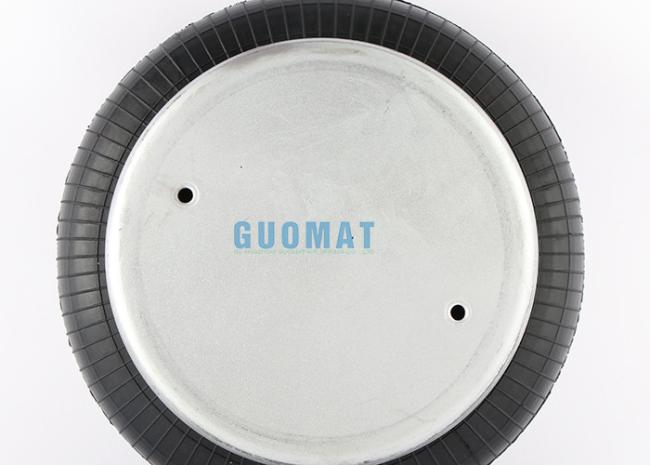

W01-358-7012 Firestone Industrial Air Spring W01-358-0134 Single Bag

GUOMAT 1B5330B-3/4 Cross OEM Original Equipment Manufacturer:

GUOMAT Part Number:1B5330B-3/4

Firestone Order Number: W01-358-7012 /

Firestone Order Number:WO13587012 /

Firestone Order Number:WO1-358-7012 /

Firestone Order Number:W013587012 /

Firestone Order Number:W01 358 7012

Firestone Part Number:W01-358-7012 /

Firestone Part Number:WO13587012 /

Firestone Part Number:WO1-358-7012 /

Firestone Part Number:W013587012 /

Firestone Part Number:W01 358 7012

Firestone Bellows Number: 19

Contitech Part Number: FS 330-11 CI 3/4 NPT OS B

Contitech Part Number: FS 330-11 CI 3/4 NPT

Contitech Part Number: FS330-11 CI 3/4 NPT

Also known as: 79114,

Contitech Part Number: FS330-11CI3/4NPTOSB

Goodyear Part Number:1B12-300 /

Goodyear Part Number:1B12 300 /

Goodyear Part Number:1B12300 /

Goodyear Part Number:1B12-313

Goodyear Part Number:1B12 313

Goodyear Part Number:1B12313

Goodyear Bellows Number:578-91-3-301 /

Goodyear Bellows Number:578 91 3 301 /

Goodyear Bellows Number:578913301

Triangle Part Number:4474

Triangle Bellows Number:6374

Holland (Neway) Number:905-57-226

GUOMAT 1B5330B-3/4 Specifications and Technical Data

1. Compressed Height: 2.12
2. Top Cover Plate Diameter: 9.00 inches / 231mm
3. Bottom Piston Number: 3212 or 3183
4. Bottom Cover Plate Diameter: 9.00 inches / 231mm
5. Screw Center Distance : 157.5 mm
6. Distance Gas Hole Between Nut 73 mm
7. Top Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
8. Bottom Cover Plate Screw (Nut) Tooth : 2pcsX 3/8-16UNC
9. Rubber Bellows MAX Diameter(Maximum Diameter): 12.9 inches / 325 mm
10. Rubber Bellows Natural Diameter 300 mm
11. The Working Stroke : MAX 160 mm to MIN 55 mm
12. Compressed Height: 2.12 inches / 105 mm
13. Gas Hole / Air inlet : 3/4 N P.T.F.

Loading Capacity at 20 psig: 1,300 lbsf

Loading Capacity at 60 psig: 3,900 lbsf

Loading Capacity at 90 psig: 5,850 lbsf

Operating Temperature: 57Cº to -54Cº

Inch size of W01-358-7012 air spring:

Maximum diameter @ 100 PSIG (inch)
12.9
Maximum height (inch)
5.5
Maximum stroke (inch)
3.5
Minimum usable height (inches)
2
80PSI force at 1 inch stroke (lbs)
6720
80 PSI force (lbs) at a stroke of 3 inches
3730
Maximum thrust for maximum stroke @ 80PSI (pounds)
2630
Style cross reference extended height (similar end caps) style number
19-.75
material
2-layer standard line

Bead plate type
3
Blind nut center (inch)
6.2
Port offset of blind nut centerline (inch)
2.88

GUOMAT 1B5330B-3/4 product description:

The air spring shock absorber can only push the bellows towards the workpiece, otherwise it must be equipped with a stroke limiter at the end of the stroke, otherwise the bellows will be overloaded
• In order to press the air spring shock absorber to the minimum height, a reset force is required. Usually, this is achieved by applying a load
• The entire bearing surface of the upper and lower plates of the air spring shock absorber must be used to absorb the force
• Before disassembling the air spring shock absorber, the internal air must be released to prevent accidents and personal injury
• During operation, the rubber air spring shock absorber must not be in contact with other parts

Other similar air spring use the same bellows:

Blind nuts, 3/4 NPT, bumper

W01-358-7012

Firestone Part Number:W01-359-7011

Firestone Part Number:WO13597011

Firestone Part Number:WO1-359-7011

Firestone Part Number:W013597011

Firestone Part Number:W01 359 7011

Countersunk steel bead rings, 15/8 bolts, nuts, washers

W01-358-7023

Firestone Part Number:W01-359-7023

Firestone Part Number:WO13597023

Firestone Part Number:WO1-359-7023

Firestone Part Number:W013597023

Firestone Part Number:W01 359 7023

Rubber bellows only

W01-358-0134

Firestone Part Number:W01-359-0134

Firestone Part Number:WO13590134

Firestone Part Number:WO1-359-0134

Firestone Part Number:W013590134

Firestone Part Number:W01 359 0134

OEM Original Equipment Manufacturer Cross:
