Goodyear Suspension Air Spring 1R13-177 W01-358-8708 Hendrickson S-21966
Goodyear Suspension Air Spring 1R13-177 W01-358-8708 Hendrickson S-21966
GUOMAT 1T8708 to HENDRICKSON
| Cross References | Vehicles OEM References |
| FIRESTONE 1 T17 CA-6.5 | HENDRICKSON S21966 |
| FIRESTONE W01 358 8708
Continental ContiTech 10 10-16 P 526, ContiTech Order # 64638, Automann 1DK25E-8708, Firestone No. W01-358-8708, Firestone Style 1T17CA-6.5, |
FleetPride AS8708, Goodyear 1R13-177, Goodyear Flex No. 566263078, Hendrickson S-21966, Navistar/Fleetrite 1R13-250, Triangle AS-8526, TRP AS87080 |
GUOMAT 1T8708 Technical parameters
❶ screw bolt / Stud
Top Cover Plate screw bolt / Stud Tooth : 3/4"-16UNF
Screw Center Distance of Top Cover Plate : 140 mm
❷ Combined link rod / Combo Stud

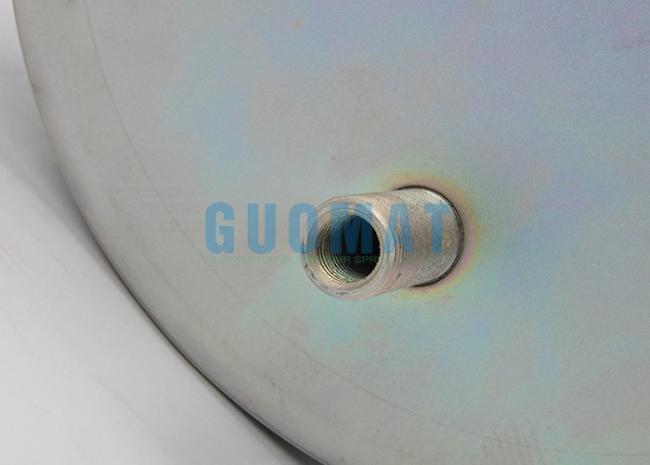

Gas Hole / Air inlet : 1/4"-18NPT.
Combo Stud Tooth :3/4"-16UNF

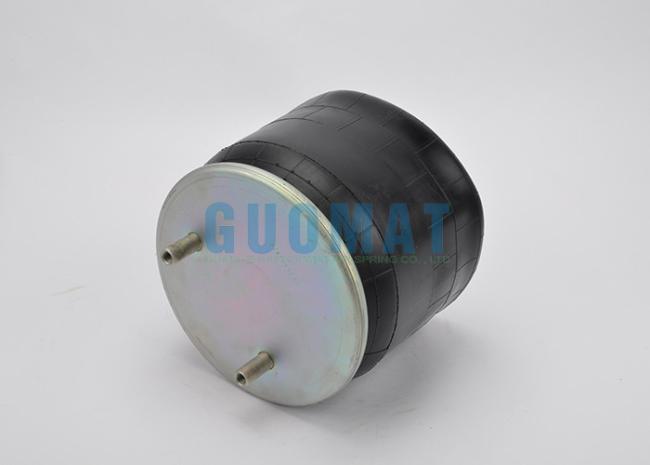

❸ Cover Plate
Top Cover Plate Diameter: Ø259 mm
❹Rubber Bellows
❺ Bumper block / Buffer block
Bumper Block height :112 mm

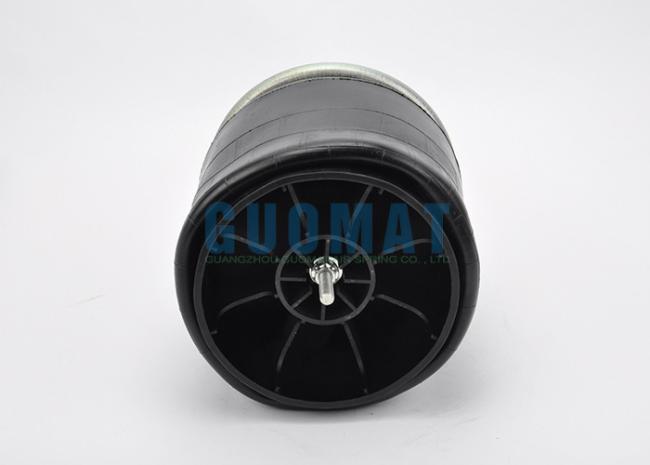

❻ Bottom Piston
Bottom Piston Diameter : Ø235 mm
Bottom Piston Height :138,5 mm
❼ Piston Bolt
Piston Bolt Tooth : 1/2"-13 UNC
Detail references:
Firestone :W01-358-8708
Extended Height:21.50 inches
Compressed Height: 9.10 inches
Top Plate Number:3300
Top Plate Width:10.38 inches
Piston Number:9537
Piston Diameter Width:9.22 inches
Firestone Bellows Number:1T17CA-6.5
Goodyear Number:1R13-128
Hendrickson Trailer Number:S-21966
The reason why we use the air spring
Guomat air spring allows automatic levelling that with the automatic height sensors ,so have no change in vehicle height from an unloaded to a fully loaded condition. It permits the cargo space to be designed
with a higher top together with a lower floor without interfering with the tires while still staying within maximum height of vehicle limits. Otherwise, a constant height is maintained for use at loading docks
and for trailer to pick up.
